ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

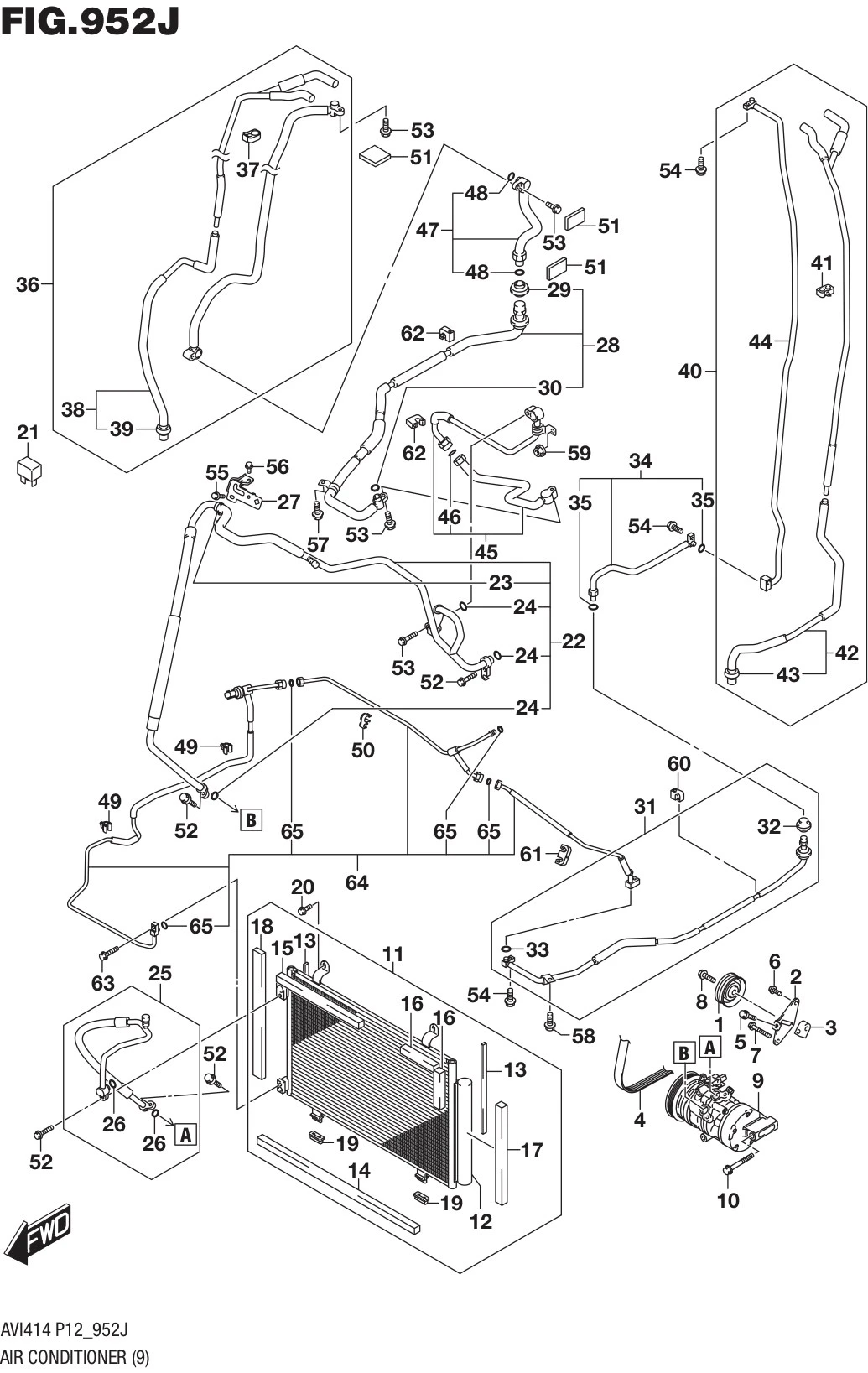

FIG.952J AIR CONDITIONER

FIG.952J AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 95130-68K10-000
SUB: 95130B68K10N000		 PULLEY ASSY, BELT TENSION 1 Rp460.500
2 95123-67L10-000
SUB: 95123B67L10N000		 BRACKET, TENSION PULLEY 1 Rp127.000
3 95125-67L10-000
SUB: 95125B67L10N000		 TENSIONER, COMPRESSOR 1 Rp207.500
4 95141-77M00-000
SUB: 95141B77M00N000		 V-BELT (4PK 765) 1 Rp80.000
5 95126-58J00-000
SUB: 09103-08352-000		 BOLT (8X75) 1 Rp48.500
6 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
7 01550-0860A-000 BOLT 1 Rp5.500
8 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
9 95200-77MB1-000 COMPRESSOR ASSY 1 Rp6.385.500
10 01550-0875A-000 BOLT 3 Rp6.000
11 95310-59R00-000 CONDENSER ASSY 1 Rp2.138.500
12 95339-59R00-000 •DRYER 1 Rp613.000
13 95811-59R00-000 •PACKING 2 Rp18.000
14 95812-89R00-000 •PACKING 1 Rp18.000
15 95813-59R00-000 •PACKING 1 Rp18.000
16 95814-59R00-000 •PACKING 2 Rp14.500
17 95815-59R00-000 •PACKING 1 Rp18.000
18 95816-59R00-000 •PACKING 1 Rp18.000
19 95851-59R00-000 •BUSH 2 Rp18.000
20 01550-0612B-000 SCREW 2 Rp16.500
21 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, A/C 1 Rp47.000
22 95710-77M60-000
SUB: 95710B77M60N000		 HOSE, SUCTION NO.1 1 Rp485.000
23 95771-70G10-000
SUB: 95771B70G10N000		 •CLAMP 1 Rp22.500
24 95896-50G00-000
SUB: 95896B50G00N000		 •O RING 3 Rp19.000
25 95720-77M00-000
SUB: 95720B77M00N000		 HOSE, DISCHARGE 1 Rp401.000
26 95895-50G00-000
SUB: 95895B50G00N000		 •O RING 2 Rp12.500
27 95781-77M00-000
SUB: 95781B77M00N000		 STAY, SUCT HOSE 1 Rp25.500
28 95711-77M60-000
SUB: 95711B77M60N000		 HOSE, SUCTION NO.2 1 Rp413.500
29 74813-82000-000 •GROMMET, CAR AIR CON NO.1 1 Rp53.500
30 95896-50G00-000
SUB: 95896B50G00N000		 •O RING 1 Rp19.000
31 95732-77M60-000
SUB: 95732B77M60N000		 HOSE, LIQUID NO.2 1 Rp468.000
32 DISCONTINUE
SUB: 74814-82000L000		 •GROMMET, CAR AIR CON NO.2 1 -
33 95891-50G00-000
SUB: 95891B50G00N000		 •O RING 1 Rp12.500
34 95733-77M60-000
SUB: 95733B77M60N000		 PIPE, LIQUID NO.3 1 Rp222.500
35 95891-50G00-000
SUB: 95891B50G00N000		 •O RING 2 Rp12.500
36 95740-77M60-000
SUB: 95740B77M60N000		 PIPE ASSY, DRAIN & SUCTION 1 Rp522.000
37 09403-18411-000
SUB: 09403B18411N000		 •CLAMP 2 Rp10.500
38 95480-77M60-000
SUB: 95482B77M60N000		 •HOSE, DRAIN LOWER RH 1 Rp281.000
39 DISCONTINUE
SUB: 74814-82000L000		 ••GROMMET, CAR AIR CON NO.2 1 -
40 95740-77M70-000
SUB: 95740B77M70N000		 PIPE ASSY, DRAIN & LIQUID 1 Rp591.500
41 09403-10407-000
SUB: 09403B10407N000		 •CLAMP 2 Rp10.000
42 95480-77M70-000
SUB: 95482B77M70N000		 •HOSE, DRAIN LOWER LH 1 Rp334.500
43 DISCONTINUE
SUB: 74814-82000L000		 ••GROMMET, CAR AIR CON NO.2 1 -
44 95734-77M60-000
SUB: 95734B77M60N000		 •PIPE, LIQUID NO.4 1 Rp378.000
45 95742-77M80-000
SUB: 95742B77M80N000		 PIPE, SUCTION NO.2 1 Rp789.500
46 95896-50G00-000
SUB: 95896B50G00N000		 •O RING 1 Rp19.000
47 95744-77M60-000
SUB: 95744B77M60N000		 PIPE, SUCTION NO.4 1 Rp234.000
48 95896-50G00-000
SUB: 95896B50G00N000		 •O RING 2 Rp19.000
49 95761-77M00-000
SUB: 95761B77M00N000		 CLAMP, LIQUID PIPE 2 Rp6.500
50 95762-68K10-000
SUB: 95762B68K10N000		 CLAMP 2 Rp6.500
51 95811-77M00-000
SUB: 95811B77M00N000		 PACKING 3 Rp8.000
52 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 4 Rp3.500
53 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 4 Rp3.500
54 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 3 Rp3.500
55 01550-0612B-000 SCREW 1 Rp16.500
56 01550-0612B-000 SCREW 1 Rp16.500
57 01550-0612B-000 SCREW 1 Rp16.500
58 01550-0612B-000 SCREW 1 Rp16.500
59 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
60 09403-08337-000 CLAMP 2 Rp26.500
61 09403-08338-000 CLAMP 2 Rp28.500
62 09403-12321-000 CLAMP 3 Rp23.500
63 01550-0620C-000 BOLT 1 Rp5.500
64 95731-59R80-000 PIPE, LIQUID NO.1 1 Rp840.000
65 95891-50G00-000
SUB: 95891B50G00N000		 ¥O RING 4 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
