ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

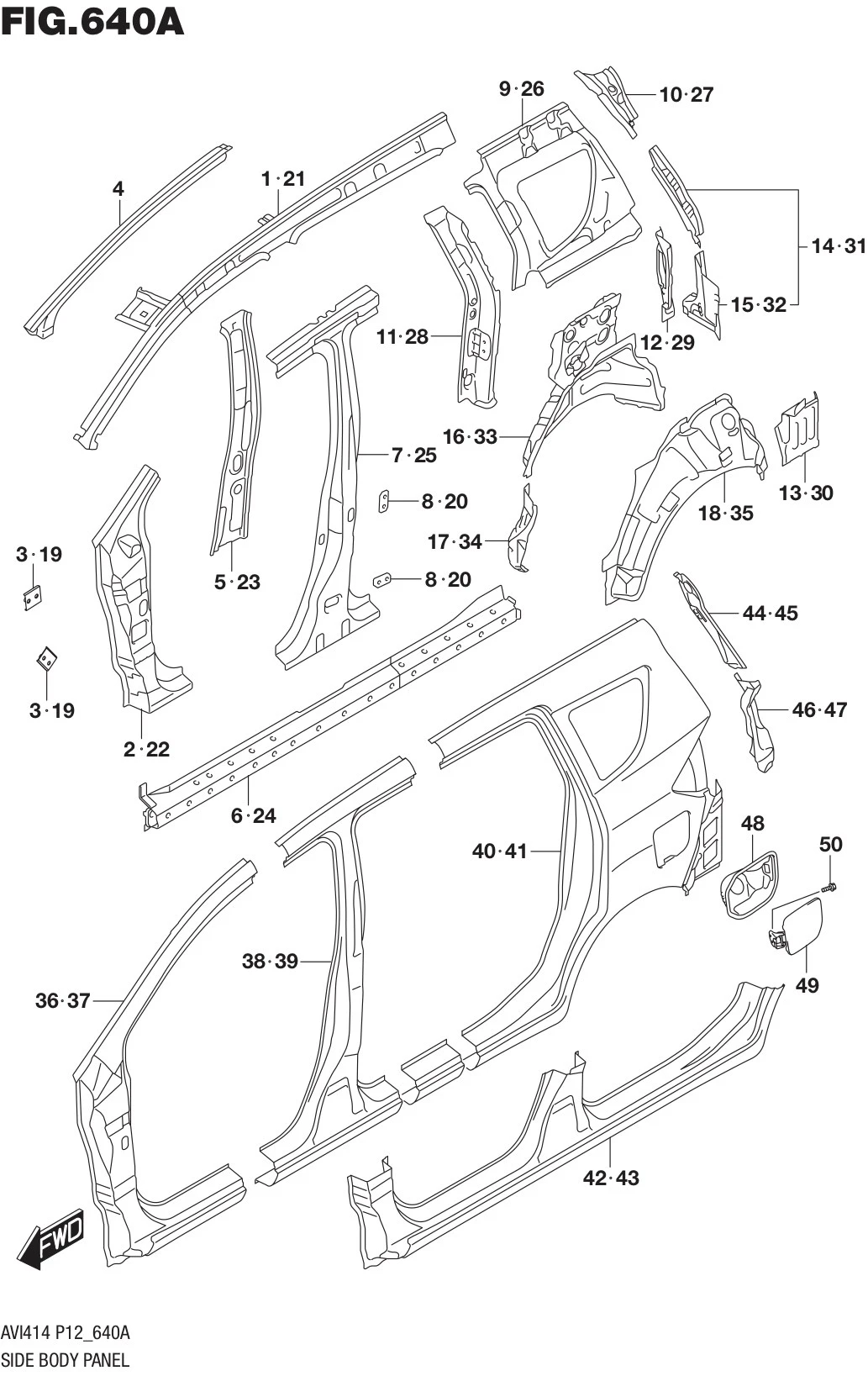

FIG.640A SIDE BODY PANEL

FIG.640A SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 63110-59R00-000 PANEL, FR PILLAR INNER RH 1 Rp3.538.500 TYPE 3
1-1 63110-59R00-000
SUB: 63110B77M00N000		 PANEL, FR PILLAR INNER RH 1 Rp3.538.500 TYPE 1,TYPE 2
2 63140-77M00-000
SUB: 63140B77M00N000		 REINF, FR DOOR HINGE RH 1 Rp1.176.500
3 63144-58J00-000
SUB: 63144B58J00N000		 RETAINER, FRONT DOOR HINGE LWR 2 Rp18.500
4-1 63151-60M00-000
SUB: 63151B60M00N000		 REINF, FR PILLAR UPPER RH 1 Rp433.500 TYPE 1,TYPE 2
4-2 63150-59R00-000 REINF, FR PILLAR UPPER RH 1 Rp487.000 TYPE 3
5 63211-60M00-000
SUB: 63211B60M00N000		 PANEL, CTR PILLAR INNER RH 1 Rp629.000
6-1 63220-77M00-000
SUB: 63220B77M00N000		 STRENGTH, SIDE SILL RH 1 Rp766.500 TYPE 1,TYPE 2
6-2 63220-59R00-000 STRENGTH, SIDE SILL RH 1 Rp460.500 TYPE 3
7-1 63230-77M00-000
SUB: 63230B77M00N000		 REINF, CTR PILLAR RH 1 Rp1.066.500 TYPE 1,TYPE 2
7-2 63230-59R00-000 REINF, CTR PILLAR RH 1 Rp1.106.500 TYPE 3
8 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER, REAR DOOR HINGE 2 Rp9.500
9 63311M60M00-000
SUB: 63311B60M00N000		 PANEL, QTR INNER UPPER RH 1 Rp647.000
10 63312-60M00-000
SUB: 63312B60M00N000		 EXTENSION, QTR INNER UPR RH 1 Rp122.500
11-1 63320-60M00-000
SUB: 63320B60M00N000		 REINF, QTR INNER FRONT RH 1 Rp336.000 TYPE 1,TYPE 2
11-2 63320-59R00-000 REINF, QTR INNER FRONT RH 1 Rp210.000 TYPE 3
12 63340-60M00-000
SUB: 63340B60M00N000		 PANEL, 3RD SEAT RETAINER RH 1 Rp289.500
13 63350-77M00-000
SUB: 63350B77M00N000		 PANEL, QTR INNER LOWER RH 1 Rp245.500
14 63370-60M00-000
SUB: 63370B60M00N000		 PANEL, RR LAMP HOUSE INNER RH 1 Rp399.500
15 63372-60M00-000
SUB: 63372B60M00N000		 •PANEL, RR LAMP HOUSE LOWER RH 1 Rp197.000
16 63410-77M01-000 PANEL, WHEEL HOUSE INNER RH 1 Rp516.000
17 63413-77M00-000
SUB: 63413B77M00N000		 REINF, RR WHEEL HOUSE FR RH 1 Rp204.000
18 63480-77M00-000
SUB: 63480B77M00N000		 PANEL, WHEEL HOUSE OUTER RH 1 Rp570.000
19 63144-58J00-000
SUB: 63144B58J00N000		 RETAINER, FRONT DOOR HINGE 2 Rp18.500
20 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER, REAR DOOR HINGE UPR 2 Rp9.500
21-1 63510-77M00-000
SUB: 63510B77M00N000		 PANEL, FR PILLAR INNER LH 1 Rp2.243.500 TYPE 1,TYPE 2
21-2 63510-59R00-000 PANEL, FR PILLAR INNER LH 1 Rp3.538.500 TYPE 3
22 63540-77M00-000
SUB: 63540B77M00N000		 REINF, FRONT DOOR HINGE LH 1 Rp1.203.500
23 63611-60M00-000
SUB: 63611B60M00N000		 PANEL, CTR PILLAR INNER LH 1 Rp629.000
24 63620-77M00-000
SUB: 63620B77M00N000		 STRENGTH, SIDE SILL LH 1 Rp709.000
25-1 63630-59R00-000
SUB: 63630B77M00N000		 REINF, CTR PILLAR LH 1 Rp1.106.500 TYPE 1,TYPE 2
25-2 63630-59R00-000 REINF, CTR PILLAR LH 1 Rp1.106.500 TYPE 3
26 63711-60M00-000
SUB: 63711B60M00N000		 PANEL, QTR INNER UPPER LH 1 Rp647.000
27 63712-60M00-000
SUB: 63712B60M00N000		 EXTENSION, QTR INNER UPR LH 1 Rp122.500
28 63720-59R50-000
SUB: 63720B60M00N000		 REINF, QTR INNER FRONT LH 1 Rp331.000
29 63740-60M00-000
SUB: 63740B60M00N000		 PANEL, 3RD SEAT RETAINER LH 1 Rp289.500
30 63751-77M00-000
SUB: 63751B77M00N000		 PANEL, QTR INNER LOWER LH 1 Rp240.500
31 63770-60M00-000
SUB: 63770B60M00N000		 PANEL, RR LAMP HOUSE INNER LH 1 Rp394.500
32 63772-60M00-000
SUB: 63772B60M00N000		 •PANEL, RR LAMP HOUSE LOWER LH 1 Rp197.000
33 63810-77M00-000
SUB: 63810B77M00N000		 PANEL, WHEEL HOUSE INNER LH 1 Rp593.500
34 63813-77M00-000
SUB: 63813B77M00N000		 REINF, RR WHEEL HOUSE FR LH 1 Rp204.000
35 63880-77M00-000
SUB: 63880B77M00N000		 PANEL, WHEEL HOUSE OUTER LH 1 Rp570.000
36-1 64111-77M00-P11 PANEL, A-PILLAR RH 1 Rp1.220.000 TYPE 1,TYPE 2,TYPE 3
36-2 64111-59R50-P11 PANEL, A-PILLAR RH 1 Rp735.000 Dreza
37-1 64511-77M00-P11 PANEL, A-PILLAR LH 1 Rp1.220.000 TYPE 1,TYPE 2,TYPE 3
37-2 64511-59R50-P11 PANEL, A-PILLAR LH 1 Rp735.000 Dreza
38-1 64111-77M00-P21 PANEL, B-PILLAR RH 1 Rp1.134.500 TYPE 1,TYPE 2,TYPE 3
38-2 64111-59R50-P21 PANEL, B-PILLAR RH 1 Rp735.000 Dreza
39-2 64511-59R50-P21 PANEL, B-PILLAR LH 1 Rp735.000 Dreza
39-1 64511-77M00-P21 PANEL, B-PILLAR LH 1 Rp1.134.500 TYPE 1,TYPE 2,TYPE 3
40-1 64111-77M00-P31 PANEL, QUARTER RH 1 Rp1.272.500 TYPE 1,TYPE 2,TYPE 3
40-2 64111-59R50-P31 PANEL, QUARTER RH 1 Rp852.500 Dreza
41-1 64511-77M00-P31 PANEL, QUARTER LH 1 Rp1.272.500 TYPE 1,TYPE 2,TYPE 3
41-2 64511-59R50-P31 PANEL, QUARTER LH 1 Rp852.500 Dreza
42-1 64111-77M00-P41 PANEL, SIDE SILL RH 1 Rp1.692.500 TYPE 1,TYPE 2,TYPE 3
42-2 64111-59R50-P41 PANEL, SIDE SILL RH 1 Rp1.470.000 Dreza
43-1 64511-77M00-P41 PANEL, SIDE SILL LH 1 Rp1.692.500 TYPE 1,TYPE 2,TYPE 3
43-2 64511-59R50-P41 PANEL, SIDE SILL LH 1 Rp1.470.000 Dreza
44 64120-60M00-000
SUB: 64120B60M00N000		 EXTENSION, SIDE BODY OTR RH 1 Rp221.500
45 64520M60M00-000
SUB: 64520B60M00N000		 EXTENSION, SIDE BODY OTR LH 1 Rp221.500
46 64130-77M00-000
SUB: 64130B77M00N000		 PANEL, RR LAMP HOUSE OUTER RH 1 Rp299.500
47 64530-77M00-000
SUB: 64530B77M00N000		 PANEL, RR LAMP HOUSE OUTER LH 1 Rp299.500
48 64571-60M00-000
SUB: 64571B60M00N000		 BOX, FUEL FILLER 1 Rp75.000
49 64850M60M10-000
SUB: 64850B60M00N000		 DOOR, FUEL FILLER 1 Rp155.500
50 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
