  5. FIG.849B FRONT RH SEAT

ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

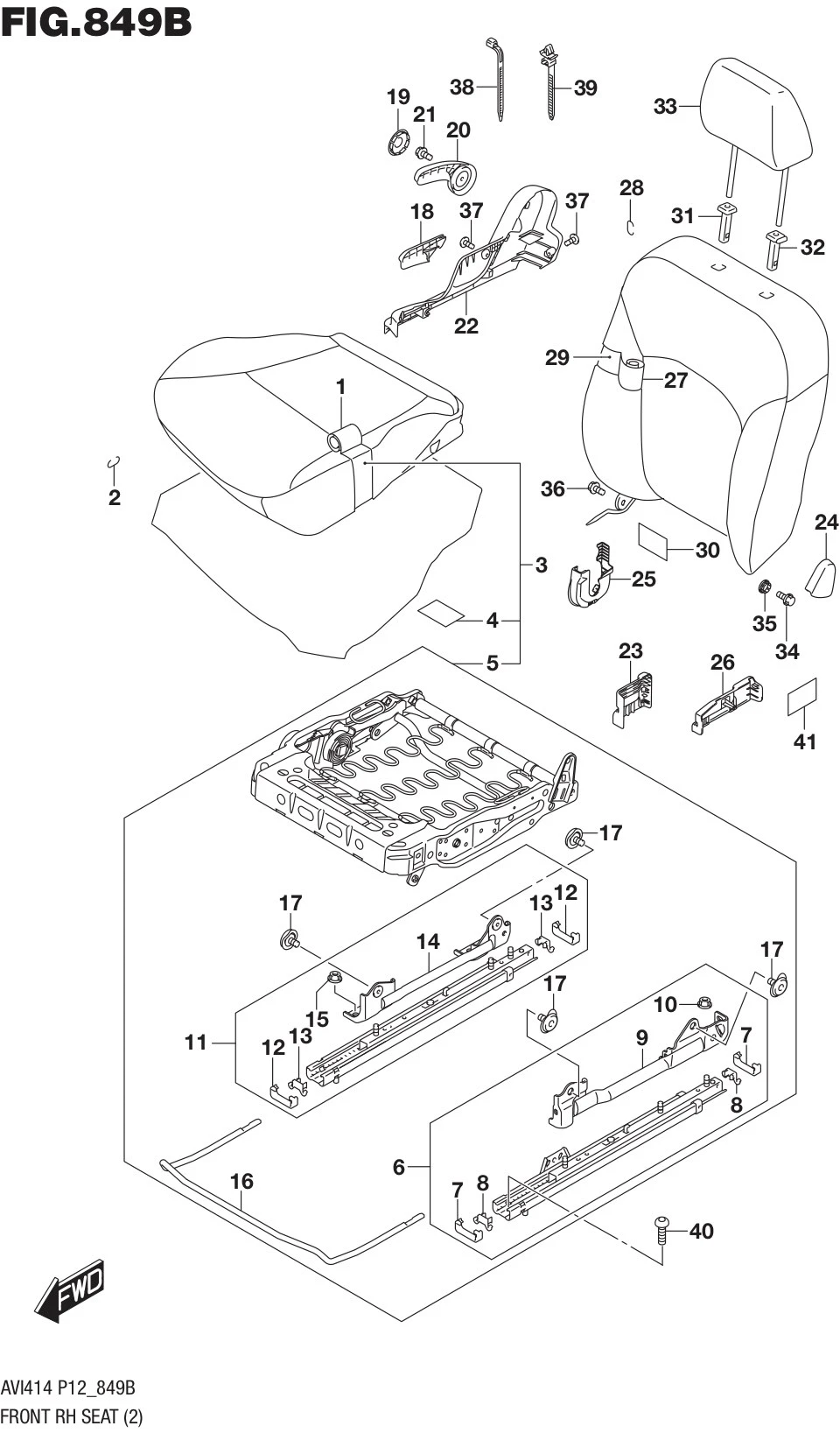

FIG.849B FRONT RH SEAT

FIG.849B FRONT RH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1-2 85180-60M20-BQ1 TRIM, FR CUSHION RH (BEIGE) 1 Rp462.500 TYPE 3 : GX
1-1 85180-60M20-KCG
SUB: 85180B60M20NKCG		 TRIM, FR CUSHION RH (BEIGE) 1 Rp375.500 TYPE 1,TYPE 2 : GX
1-3 85180-58RD0-B0K TRIM, FR CUSHION RH (BROWN) 1 Rp570.000 Dreza
2 09387-19001-000
SUB: 09387B19001N000		 RING 11 Rp9.000
3 85105-60MC0-000
SUB: 85105B60MC0N000		 CUSHION SUB ASSY, FR RH 1 Rp3.523.000
4 85169M60M00-000
SUB: 85169B60M00N000		 •SILENCER 2 Rp38.000
5 85103-60MC0-000
SUB: 85103B60MC0N000		 •FRAME ASSY, FR CUSHION RH 1 Rp2.432.000
6 86601-60MC0-000
SUB: 86601B60MC0N000		 ••ADJUSTER SUB ASSY, INSIDE RH 1 Rp658.000
7 86652-57L01-000 •••CAP, ADJSTER LOWER 2 Rp67.500
8 86654-57L00-000 •••CAP, ADJSTER UPPER 2 Rp61.500
9 86710-60MB0-000
SUB: 86710B60MB0N000		 •••RISER, INSIDE RH 1 Rp133.000
10 08316-1010A-000
SUB: 08316B1010AN000		 •••NUT 3 Rp3.500
11 86603-60MC0-000
SUB: 86603B60MC0N000		 ••ADJUSTER SUB ASSY, OUTSIDE RH 1 Rp653.000
12 86652-57L01-000 •••CAP, ADJSTER LOWER 2 Rp67.500
13 86654-57L00-000 •••CAP, ADJSTER UPPER 2 Rp61.500
14 86730-60MB0-000
SUB: 86730B60MB0N000		 •••RISER, OUTSIDE RH 1 Rp11.000
15 08316-1010A-000
SUB: 08316B1010AN000		 •••NUT 3 Rp3.500
16 86691-60MA0-000
SUB: 86691B60MA0N000		 ••HANDLE, FR SEAT ADJUSTER 1 Rp309.000
17 86717-63J40-000 ••BOLT 4 Rp74.000
18 85211-58RA0-V6N
SUB: 85211B68K00NV6N		 KNOB, RECLINING RH (BEIGE) 1 Rp10.000
19 85214-63J20-V6N CAP, LIFTER LEVER (BEIGE) 1 Rp47.500
20 85213-65J00-V6N
SUB: 85213B65J00NV6N		 LEVER, SEAT LIFTER (BEIGE) 1 Rp72.000
21 09132-05043-000
SUB: 09132B05043N000		 BOLT 2 Rp17.500
22 85221-60M00-V6N
SUB: 85221B60M00NV6N		 COVER, OUTSIDE RH (BEIGE) 1 Rp50.000
23 85224M60M00-V6N
SUB: 85224B60M00NV6N		 COVER, FR RISER INSIDE RH (BEIGE) 1 Rp14.500
24 85241-75L00-V6N
SUB: 85241B75L00NV6N		 COVER, FR HINGE OUTSIDE (BEIGE) 1 Rp5.500
25 85222M75L00-V6N
SUB: 85222B75L00NV6N		 COVER, FR BACK FRAME RH (BEIGE) 1 Rp17.000
26 85243-60M20-V6N
SUB: 85243B60M20NV6N		 COVER, RISER INSIDE RH (BEIGE) 1 Rp9.500
27-1 85380-60M10-KCG
SUB: 85380B60M10NKCG		 TRIM, FR BACK RH (BEIGE) 1 Rp468.500 TYPE 1,TYPE 2 : GX
27-2 85380-60M10-KCG
SUB: 85380B60M10NKCG		 TRIM, FR BACK RH (BEIGE) 1 Rp468.500 TYPE 3 : GX
27-3 85380-58RD0-B0K TRIM, FR BACK RH (BROWN) 1 Rp492.000 Dreza
28 09387-19001-000
SUB: 09387B19001N000		 RING 6 Rp9.000
29-1 85305-60MA0-000
SUB: 85305B60MA0N000		 BACK SUB ASSY, FR RH 1 Rp4.194.000 TYPE 1,TYPE 2 : GX
29-2 85305-58RA0-000 BACK SUB ASSY, FR RH 1 Rp4.261.500 TYPE 3 : GX, Dreza
30 85169M60M00-000
SUB: 85169B60M00N000		 SILENCER 2 Rp38.000
31-1 DISCONTINUE
SUB: 85341-63J10-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 - TYPE 1,TYPE 2
31-2 85341-58RA1-V6N
SUB: 85341-58RA0-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 Rp10.500 TYPE 3, Dreza
32-2 DISCONTINUE
SUB: 85840-58RA0-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 - TYPE 3, Dreza
32-1 85840-63J10-V6N GUIDE, HEADRESTRAINT (BEIGE) 1 Rp87.000 TYPE 1,TYPE 2
33-1 86401-60MA0-KCF
SUB: 86401B60MA0NKCF		 HEADRESTRAINT ASSY (BEIGE) 1 Rp472.500 TYPE 1,TYPE 2
33-2 86401-60MA0-BQ3 HEADRESTRAINT ASSY (BEIGE) 1 Rp472.500 TYPE 3
33-3 86401-60MA0-QA1 HEADRESTRAINT ASSY (BROWN) 1 Rp481.000 Dreza
34 85295-58J01-000
SUB: 85295B58J01N000		 BOLT, FR BACK FIX 1 Rp34.000
35 87286-58J10-000
SUB: 87286B58J10N000		 BUSH, CUSHION STAY FIX 1 Rp4.500
36 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 2 Rp5.500
37 03241-0510A-000 SCREW 2 Rp8.000
38 36990-25G00-000
SUB: 09407-14403L000		 CLAMP 2 Rp13.000
39 96619-59L00-000 CLAMP 1 Rp24.500
40 09119-08097-000 BOLT (8X25) 4 Rp27.500
41 85169M60MA0-000
SUB: 85169B60MA0N000		 TAPE, FR CUSH SIDE 2 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
