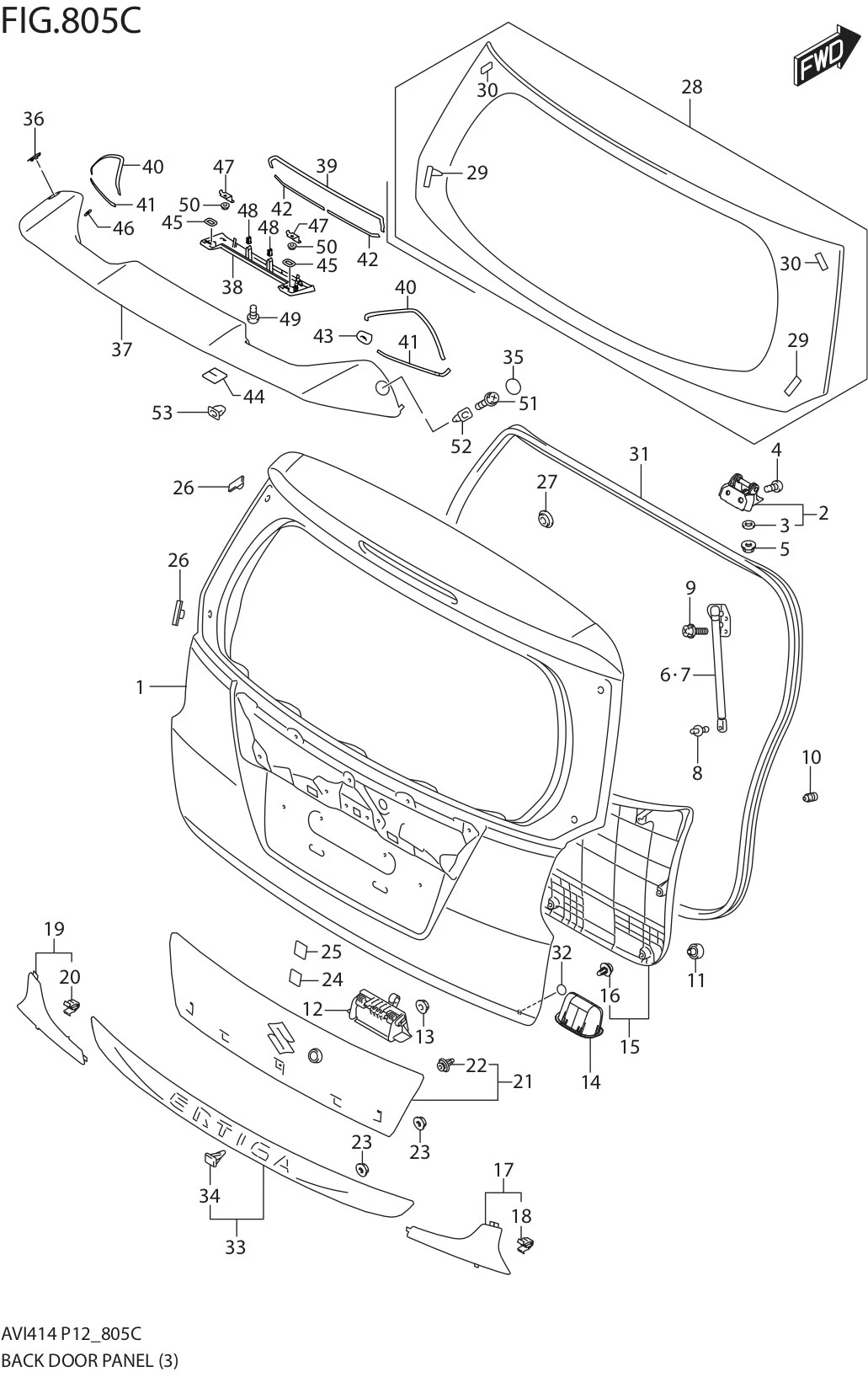

FIG.805C BACK DOOR PANEL

FIG.805C BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 69100-77M21-000 PANEL ASSY, BACK DOOR 1 Rp3.863.500
2 69510-77M00-000 HINGE, BACK DOOR 2 Rp71.000
3 69571M76G00-000 •PACKING HINGE 2 Rp6.500
4 09111-06086-000 BOLT (6X12) 4 Rp16.000
5 08361-2508A-000 NUT 2 Rp16.500
6 81850M60M00-000 BALANCER, BACK DOOR RH 1 Rp282.000
7 81860M60M00-000 BALANCER, BACK DOOR LH 1 Rp282.000
8 81871M68P01-000
SUB: 81871M83K10-000		 BALLSTUD, BACK DOOR BALANCER 2 Rp31.000
9 09113-08002-000 BOLT (8X12) 4 Rp25.500
10 82683M60B00-000 CUSHION, BACK DOOR SIDE 2 Rp8.500
11 09321-10041-000 CUSHION 2 Rp21.000
12 82850M60M00-000 HANDLE ASSY, BACK DOOR LOCK 1 Rp422.000
13 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
14 82841-82G02-000
SUB: 82841B82G02N000		 HANDLE, BACK DOOR INNER 1 Rp7.000
15 83770-77M00-V6N
SUB: 83770B77M00NV6N		 TRIM, BACK DOOR (BEIGE) 1 Rp596.000
16 09409-10327-000 •CLIP 13 Rp5.000
17 35660-77M00-000 GARNISH ASSY, BACK DOOR RH 1 Rp257.500
18 09409-06324-000
SUB: 09409B06324N000		 •CLIP 2 Rp13.500
19 35680-77M00-000 GARNISH ASSY, BACK DOOR LH 1 Rp257.500
20 09409-06324-000
SUB: 09409B06324N000		 •CLIP 2 Rp13.500
21 83940-77M41-000
SUB: 83940-77M40-5PK		 GARNISH, BACK DOOR LICENSE (BLACK) 1 Rp359.500 PAINT TO MATCH
22 71812-78F00-000
SUB: 71812B78F00N000		 •CLIP 6 Rp9.000
23 08316-1006A-000
SUB: 08316B1006AN000		 NUT 3 Rp2.000
24 44281-29C00-000
SUB: 63191-25C00-000		 PAD, LICENSE PLATE 2 Rp6.000
25 77151-82000-000
SUB: 77151B82000N000		 SEAL, BACK DOOR LICENSE PLATE 2 Rp7.000
26 84515-65D00-000 FEMALE, GLASS FASTENER NO.2 4 Rp45.500
27 09250M20031-000
SUB: 09250M20023-000		 CAP (OD:25.8) 1 Rp4.500
28 84570-77M00-000
SUB: 84570B77M00N000		 GLASS, BACK DOOR WINDOW 1 Rp643.000
29 84572-74G00-000 •MALE, GLASS FASTENER NO.1 2 Rp42.500
30 84513-76F00-000 •MALE, GLASS FASTENER NO.2 2 Rp38.500
31 84681-77M00-000
SUB: 84681B77M00N000		 WEATHERSTRIP, DOOR OPENING 1 Rp206.500
32 76482-51K00-000 FILM, BACK DOOR DRAIN HOLE 2 Rp43.500
33 83944-77M11-0PG
SUB: 83944-77M10-0PG		 MOLDING, BACK DOOR GARNISH (CHROME) 1 Rp414.000
34 09409-06323-000 •CLIP 2 Rp13.500
35 8398R-77M00-799 CAP, BACK DOOR SPOILER RH (PRIMARY) 1 Rp6.500 PAINT TO MATCH
36 8398L-77M00-799 CAP, BACK DOOR SPOILER LH (PRIMARY) 1 Rp6.500 PAINT TO MATCH
37 83981-77M00-799 SPOILER, BACK DOOR (PRIMARY) 1 Rp856.000 PAINT TO MATCH
38 83982-77M00-799 •COVER, BACK DOOR SPOILER (PRIMARY) 1 Rp46.500 PAINT TO MATCH
39 8398A-77M00-000 •TAPE, BACK DOOR SPOILER NO.1 1 Rp10.500
40 8398B-77M00-000 •SEAL, BACK DOOR SPOILER NO.2 2 Rp6.500
41 8398E-77M00-000 •TAPE, BACK DOOR SPOILER NO.4 2 Rp18.500
42 8398F-77M00-000 •TAPE, BACK DOOR SPOILER NO.5 2 Rp18.500
43 8398G-77M00-000 •SEAL, BACK DOOR SPOILER NO.3 1 Rp5.500
44 8398H-77M00-000 •SEAL, BACK DOOR SPOILER NO.4 1 Rp5.500
45 8398J-77M00-000 •SEAL, BACK DOOR SPOILER NO.5 2 Rp8.500
46 8398K-77M00-000 •PACKING, BACK DOOR SPOILER 2 Rp11.500
47 8398N-77M00-000 •BRACKET, BACK DOOR SPOILER 2 Rp12.500
48 09409-08349-000
SUB: 09409-08342-000		 •CLIP 2 Rp4.500
49 02112-1412D-000 •SCREW 2 Rp18.500
50 08316-1006A-000 •NUT 2 Rp2.000
51 09132-06010-000 SCREW (6X16) 2 Rp17.000
52 09148-06024-000 NUT 2 Rp21.000
53 09410-00076-000 CLIP 4 Rp16.000
54 DISCONTINUE
SUB: 990H0M990AL-069		 BACK DOOR GARNISH CHROME RIGHT 1 - Dreza GS

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
