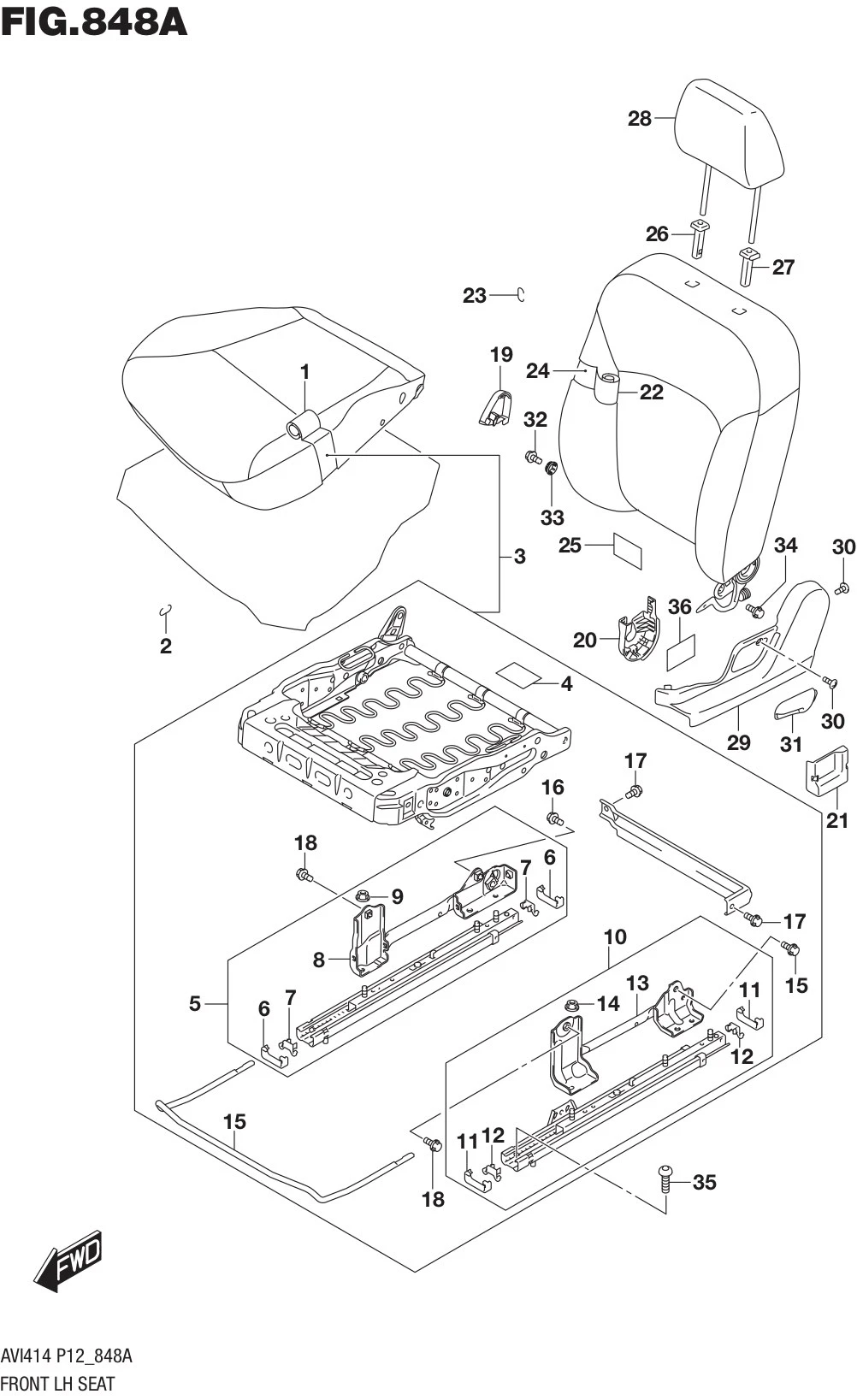

FIG.848A FRONT LH SEAT

FIG.848A FRONT LH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1-2 85680-60M00-KCG
SUB: 85680B60M00NKCG		 TRIM, FR CUSHION LH (BEIGE) 1 Rp462.500 TYPE 1, TYPE 2 : GL, GX
1-3 85680-60M00-BQ1 TRIM, FR CUSHION LH (BEIGE) 1 Rp369.000 TYPE 3 : GL, GX
1-4 85680-58RD0-B0K TRIM, FR CUSHION LH (BROWN) 1 Rp570.000 Dreza
1-1 85680-60M00-KCK
SUB: 85680B60M00NKCK		 TRIM, FR CUSHION LH (BEIGE) 1 Rp462.500 TYPE 1, TYPE 2, TYPE 3 : GA
2 09387-19001-000
SUB: 09387B19001N000		 RING 11 Rp9.000
3 85106-60MA0-000
SUB: 85106B60MA0N000		 CUSHION SUB ASSY, FR LH 1 Rp1.829.500
4 85169M60M00-000
SUB: 85169B60M00N000		 •SILENCER 2 Rp38.000
5 86602-60MA0-000
SUB: 86602B60MA0N000		 •ADJUSTER SUB ASSY, INSIDE LH 1 Rp658.000
6 86652-57L01-000 ••CAP, ADJSTER LOWER 2 Rp67.500
7 86654-57L00-000 ••CAP, ADJSTER UPPER 2 Rp61.500
8 86720-60MA0-000
SUB: 86720B60MA0N000		 ••RISER, INSIDE LH 1 Rp11.000
9 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
10 86604-60MA0-000
SUB: 86604B60MA0N000		 •ADJUSTER SUB ASSY, OUTSIDE LH 1 Rp658.000
11 86652-57L01-000 ••CAP, ADJSTER LOWER 2 Rp67.500
12 86654-57L00-000 ••CAP, ADJSTER UPPER 2 Rp61.500
13 86740-60MA0-000
SUB: 86740B60MA0N000		 ••RISER, OUTSIDE LH 1 Rp133.000
14 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
15 86691-60MA0-000
SUB: 86691B60MA0N000		 •HANDLE, FR SEAT ADJUSTER 1 Rp309.000
16 01550-0816A-000
SUB: 01550B0816AN000		 •BOLT 2 Rp6.000
17 01550-0816A-000
SUB: 01550B0816AN000		 •BOLT 2 Rp6.000
18 01550-1035A-000
SUB: 01550B1035AN000		 •BOLT 2 Rp5.500
19 85241-75L00-V6N
SUB: 85241B75L00NV6N		 COVER, FR HINGE OUTSIDE (BEIGE) 1 Rp5.500
20 85242M75L00-V6N
SUB: 85242B75L00NV6N		 COVER, FR BACK FRAME LH (BEIGE) 1 Rp17.000
21 85724M60M00-V6N
SUB: 85724B60M00NV6N		 COVER, FR RISER INSIDE LH (BEIGE) 1 Rp14.500
22-1 85880-60M00-KCK
SUB: 85880B60M00NKCK		 TRIM, FR BACK LH (BEIGE) 1 Rp465.500 TYPE 1, TYPE 2, TYPE 3 : GA
22-4 85880-58RD0-B0K TRIM, FR BACK LH (BROWN) 1 Rp492.000 Dreza
22-2 85880-60M10-KCG
SUB: 85880B60M10NKCG		 TRIM, FR BACK LH (BEIGE) 1 Rp468.500 TYPE 1, TYPE 2 : GL, GX
22-3 85880-60M10-BQ1 TRIM, FR BACK LH (BEIGE) 1 Rp458.000 TYPE 3 : GL, GX
23 09387-19001-000
SUB: 09387B19001N000		 RING 6 Rp9.000
24-1 85306-60MA0-000
SUB: 85306B60MA0N000		 BACK SUB ASSY, FR LH 1 Rp4.204.000 TYPE 1, TYPE 2
24-2 85306-58RA0-000 BACK SUB ASSY, FR LH 1 Rp4.261.500 TYPE 3, Dreza
25 85169M60M00-000
SUB: 85169B60M00N000		 SILENCER 2 Rp38.000
26-1 DISCONTINUE
SUB: 85341-63J10-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 - TYPE 1, TYPE 2
26-2 85341-58RA1-V6N
SUB: 85341-58RA0-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 Rp10.500 TYPE 3, Dreza
27-1 85840-63J10-V6N GUIDE, HEADRESTRAINT (BEIGE) 1 Rp87.000 TYPE 1, TYPE 2
27-2 DISCONTINUE
SUB: 85840-58RA0-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 - TYPE 3, Dreza
28-2 86401-60MA0-KCF
SUB: 86401B60MA0NKCF		 HEADRESTRAINT ASSY (BEIGE) 1 Rp472.500 TYPE 1, TYPE 2 : GL, GX
28-4 86401-60MA0-QA1 HEADRESTRAINT ASSY (BROWN) 1 Rp481.000 Dreza
28-3 86401-60MA0-BQ3 HEADRESTRAINT ASSY (BEIGE) 1 Rp472.500 TYPE 3 : GL, GX
28-1 86401-60MA0-RC4
SUB: 86401B60MA0NRC4		 HEADRESTRAINT ASSY (BEIGE) 1 Rp446.500 TYPE 1, TYPE 2, TYPE 3 : GA
29 85721-60M00-V6N
SUB: 85721B60M00NV6N		 COVER, OUTSIDE LH (BEIGE) 1 Rp50.500
30 03241-0510A-000 SCREW 2 Rp8.000
31 85711-58RA0-V6N
SUB: 85711B68K00NV6N		 KNOB, RECLINING LH (BEIGE) 1 Rp10.000
32 85295-58J01-000
SUB: 85295B58J01N000		 BOLT, FR BACK FIX 1 Rp34.000
33 87286-58J10-000
SUB: 87286B58J10N000		 BUSH, CUSHION STAY FIX 1 Rp4.500
34 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 2 Rp5.500
35 09119-08097-000 BOLT (8X25) 4 Rp27.500
36 85169M60MA0-000
SUB: 85169B60MA0N000		 TAPE, FR CUSH SIDE 2 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
