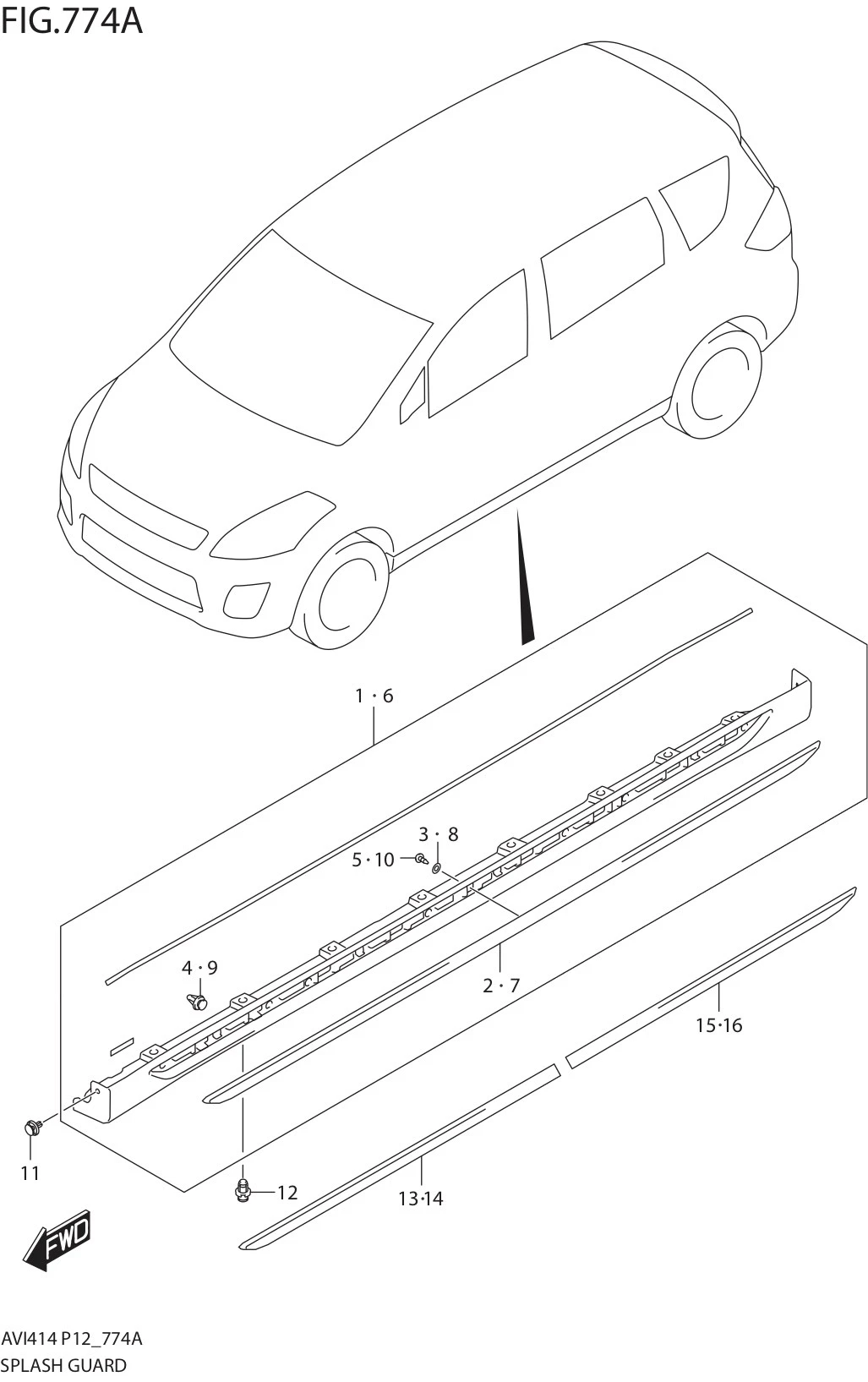

FIG.774A SPLASH GUARD

FIG.774A SPLASH GUARD
No No. Part Description Qty Price Per Pcs Remarks
1 77210-59R50-799 GUARD, SIDE SILL SPLASH RH (PRIMARY) 1 Rp1.021.000 PAINT TO MATCH
2 77212-59R50-Z2S •GARNISH, SIDE SILL SPLASH RH (SILVER) 1 Rp240.500
3 09160-05037-000 •WASHER (5.5X16X1.2) 5 Rp11.000
4 09409-10312-000 •CLIP 9 Rp10.000
5 03541-0512B-000
SUB: 03541B0512BN000		 •SCREW 5 Rp4.000
6 77220-59R50-799 GUARD, SIDE SILL SPLASH LH (PRIMARY) 1 Rp1.021.000 PAINT TO MATCH
7 77222-59R50-Z2S •GARNISH, SIDE SILL SPLASH LH (SILVER) 1 Rp240.500
8 09160-05037-000 •WASHER (5.5X16X1.2) 5 Rp11.000
9 09409-10312-000 •CLIP 9 Rp10.000
10 03541-0512B-000
SUB: 03541B0512BN000		 •SCREW 5 Rp4.000
11 09409-07340-000 CLIP 4 Rp17.500
12 09409-15302-000 CLIP 16 Rp15.000
13 990H0-990BD-004 FRONT SIDE SKIRT GARNISH LEFT 1 Rp131.500 Dreza GS
14 990H0-990BD-006 FRONT SIDE SKIRT GARNISH RIGHT 1 Rp131.500 Dreza GS
15 990H0-990BD-005 REAR SIDE SKIRT GARNISH LEFT 1 Rp125.500 Dreza GS
16 990H0-990BD-007 REAR SIDE SKIRT GARNISH RIGHT 1 Rp125.500 Dreza GS

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
