ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

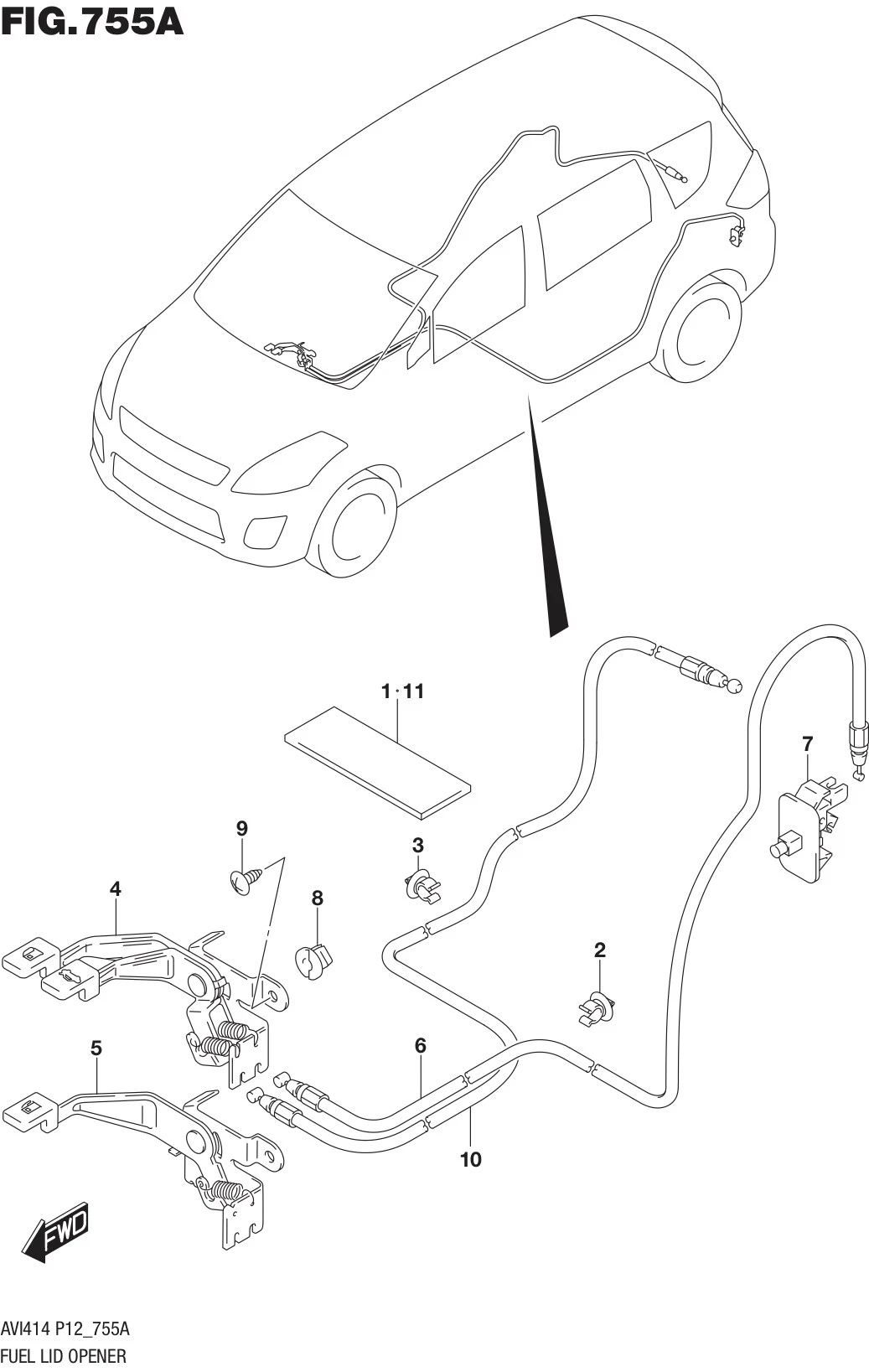

FIG.755A FUEL LID OPENER

FIG.755A FUEL LID OPENER
No No. Part Description Qty Price Per Pcs Remarks
1 36930M82000-000
SUB: 36930M82010-000		 TAPE, FUEL LID OPENER CABLE 1 Rp6.500
2 75411-67LG0-000
SUB: 75411B67LG0N000		 CLAMP, FUEL LID OPENER 3 Rp6.500
3 75411-76G00-000 CLAMP, BACK DOOR OPENER CABLE 3 Rp31.000 TYPE 1,TYPE 2,TYPE 3 : GA
4 83310-67LG0-000
SUB: 83310B67LG0N000		 LEVER, FUEL LID OPENER 1 Rp43.500 TYPE 1,TYPE 2,TYPE 3 : GA
5 83310-67LH0-000
SUB: 83310B67LH0N000		 LEVER, FUEL LID OPENER 1 Rp30.000 TYPE 1,TYPE 2 : GL, GX, TYPE 3 : GL, GX, Dreza
6-1 76430-77M00-000 CABLE, FUEL LID OPENER 1 Rp49.500 TYPE 1,TYPE 2,TYPE 3
6-2 76430-59R50-000 CABLE, FUEL LID OPENER 1 Rp45.000 Dreza
7 76520-63J11-000 OPENER, FUEL LID 1 Rp176.000
8 71851M70F00-000
SUB: 09148-06007-000		 NUT 1 Rp4.000
9 03141M0612A-000
SUB: 03241-0612A-000		 SCREW 1 Rp4.500
10 76440-77M00-000 CABLE, BACK DOOR OPENER 1 Rp84.500 TYPE 1,TYPE 2,TYPE 3 : GA
11 36930M82000-000
SUB: 36930-82010-000		 TAPE, BACK DOOR OPENER CABLE 2 Rp6.500 TYPE 1,TYPE 2,TYPE 3 : GA

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
