ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

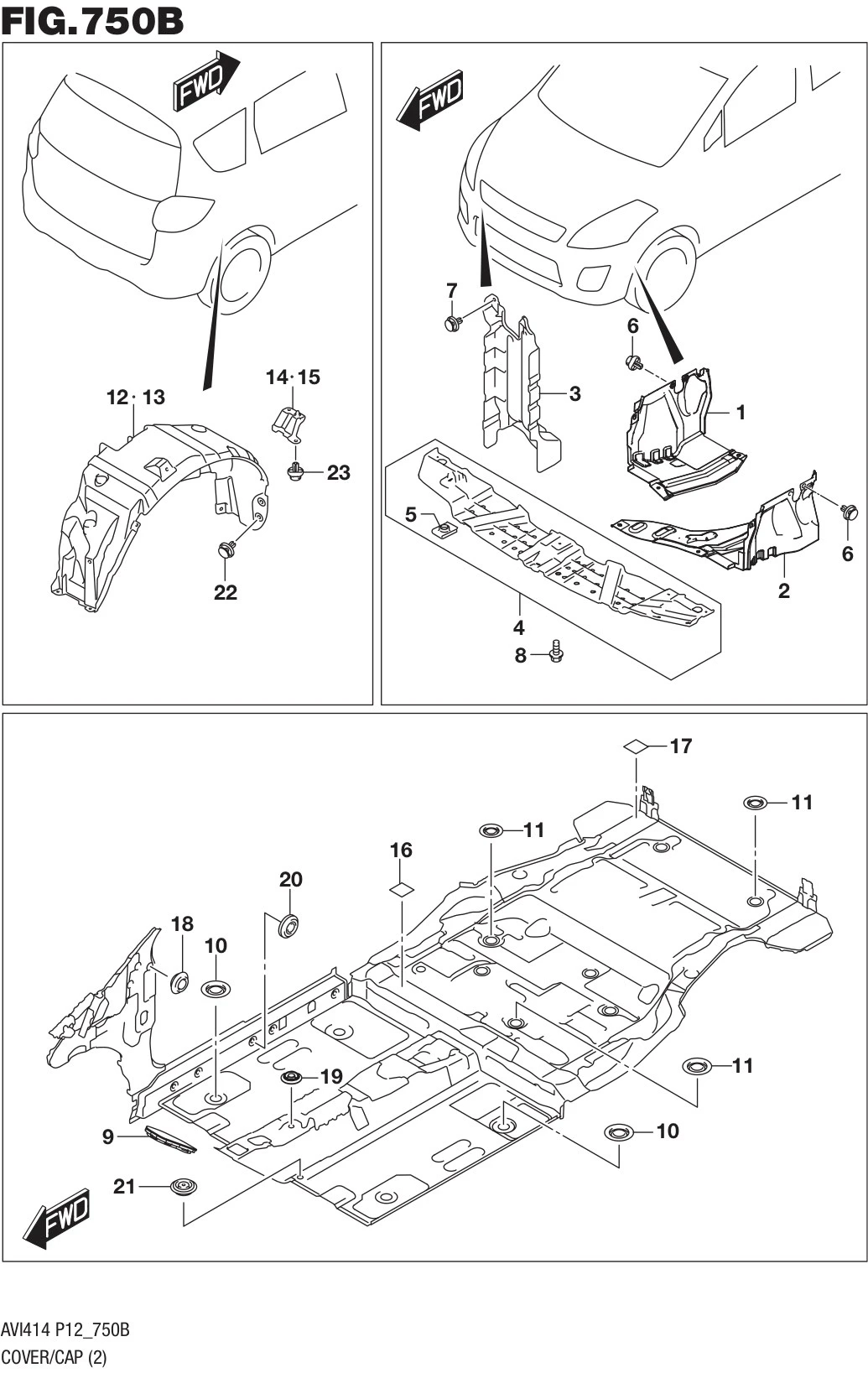

FIG.750B COVER CAP

FIG.750B COVER CAP
No No. Part Description Qty Price Per Pcs Remarks
1 72411-74L00-000
SUB: 72411B74L00N000		 COVER, ENGINE UNDER RH 1 Rp96.000
2 72421-77M00-000
SUB: 72421B77M00N000		 COVER, ENGINE UNDER LH 1 Rp96.000
3 72431-60M00-000
SUB: 72431B60M00N000		 COVER, ENGINE FRONT 1 Rp154.000
4 72460-59R50-000 COVER COMP, FR BUMPER LOWER 1 Rp66.000
5 09148-05047-000
SUB: 09148B05047N000		 •NUT 3 Rp3.500
6 09409-07340-000 CLIP 11 Rp17.500
7 09409-08327-000 CLIP 3 Rp15.000
8 02162-0616A-000 SCREW 3 Rp3.000
9 DISCONTINUE
SUB: 75420B63J00N000		 CAP, DASH LOWER 2 -
10 75431-75J00-000
SUB: 75431B75J00N000		 CAP, MAIN FLOOR DRAIN 4 Rp8.000
11 75431-75J00-000
SUB: 75431B75J00N000		 CAP, REAR FLOOR DRAIN 6 Rp8.000
12 72811-59R50-000 LINING, REAR FENDER RH 1 Rp388.000
13 72821-59R50-000 LINING, REAR FENDER LH 1 Rp388.000
14 72812-60M00-000
SUB: 72812B60M00N000		 COVER, BRAKE PIPE RH 1 Rp9.000
15 72822-60M00-000
SUB: 72822B60M00N000		 COVER, BRAKE PIPE LH 1 Rp9.000
16 77151-82000-000
SUB: 77151B82000N000		 FILM, REAR FLOOR FRONT 2 Rp7.000
17 77151-82000-000
SUB: 77151B82000N000		 FILM, REAR FLOOR SIDE 4 Rp7.000
18 09250-15L02-000
SUB: 09250B15L02N000		 CAP 10 Rp5.500
19 09250-15L03-000
SUB: 09250B15015N000		 CAP 1 Rp5.500
20 09250M20031-000
SUB: 09250-20015-000		 CAP (OD:23.5) 12 Rp4.500
21 09250-25007-000 CAP (OD:25.0) 2 Rp10.500
22 09409-07340-000 CLIP 18 Rp17.500
23 09409-07340-000 CLIP 4 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
