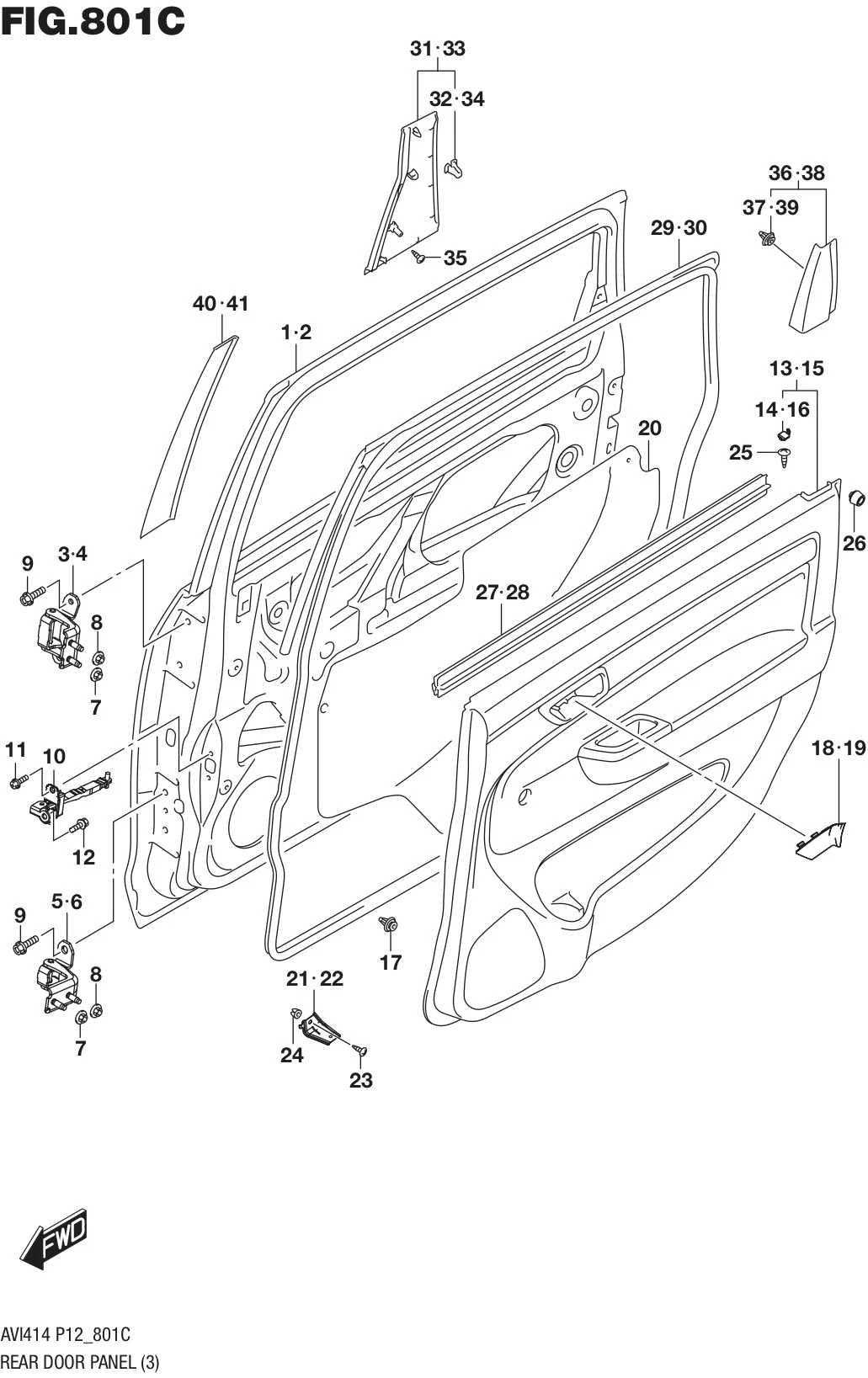

FIG.801C REAR DOOR PANEL

FIG.801C REAR DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68003-77M10-000 PANEL ASSY, REAR DOOR RH 1 Rp3.973.500
2 68004-77M10-000 PANEL ASSY, REAR DOOR LH 1 Rp3.973.500
3 69410M68L00-000
SUB: 69410-68LB0-000		 HINGE, REAR DOOR UPPER RH 1 Rp73.500
4 69420M68L00-000
SUB: 69420-68LB0-000		 HINGE, REAR DOOR UPPER LH 1 Rp73.500
5 69430-77M00-000 HINGE, REAR DOOR LOWER RH 1 Rp75.500
6 69440-77M00-000 HINGE, REAR DOOR LOWER LH 1 Rp74.000
7 08361-2508A-000 NUT 4 Rp16.500
8 09159-08132-000 NUT 4 Rp19.500
9 09103-08546-000 BOLT (8X24) 8 Rp26.500
10 81830M60M01-000
SUB: 81830M60M00-000		 STOP, REAR DOOR OPEN 2 Rp78.000
11 09122-86004-000 SCREW (6X20) 4 Rp15.000
12 09112-08015-000 SCREW (8X25) 2 Rp32.000
13 83730-77MA0-B6H TRIM, RR DOOR RH (BROWN/BEIGE) 1 Rp770.000
14 83752-80J00-V6N •CAP, INSIDE PULL CASE (BEIGE) 1 Rp58.000
15 83740-77MA0-B6H TRIM, RR DOOR LH (BROWN/BEIGE) 1 Rp770.000
16 83752-80J00-V6N •CAP, INSIDE PULL CASE (BEIGE) 1 Rp58.000
17 09409-10327-000 CLIP 14 Rp5.000
18 83755-74L00-V6N
SUB: 83755B74L00NV6N		 CAP, SIDE DR INSIDE HDL BEZEL RH (BEIGE) 1 Rp86.500
19 83756-74L00-V6N
SUB: 83756B74L00NV6N		 CAP, SIDE DR INSIDE HDL BEZEL LH (BEIGE) 1 Rp85.500
20 83913-60M00-000
SUB: 83913B60M00N000		 COVER, DOOR SEALING 2 Rp13.000
21 83751-75HA0-000
SUB: 83751B75HA0N000		 BRACKET, DOOR TRIM RH 1 Rp8.000
22 83756-75HA0-000
SUB: 83756B75HA0N000		 BRACKET, DOOR TRIM LH 1 Rp8.000
23 03241M0612A-000 SCREW 2 Rp6.500
24 71851M70F00-000
SUB: 09148M06007-000		 NUT 2 Rp4.000
25 09132-05058-000 SCREW (5X12) 2 Rp14.000
26 82711-65J00-000 STOPPER, DOOR 6 Rp34.000
27 83871-77M10-000 WEATHERSTRIP, DOOR INNER RH 1 Rp77.500
28 83881-77M10-000 WEATHERSTRIP, DOOR INNER LH 1 Rp77.500
29 84661-77M00-000 WEATHERSTRIP, DOOR OPENING RH 1 Rp361.500
30 84671-77M00-000 WEATHERSTRIP, DOOR OPENING LH 1 Rp361.500
31 83970-60M00-000
SUB: 83970B60M00N000		 GARNISH, RR DOOR RH OUTER RH 1 Rp88.500
32 09409-06324-000
SUB: 09409B06324N000		 •CLIP 2 Rp13.500
33 83980-60M00-000
SUB: 83980B60M00N000		 GARNISH, RR DOOR RH OUTER LH 1 Rp88.500
34 09409-06324-000
SUB: 09409B06324N000		 •CLIP 2 Rp13.500
35 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 2 Rp3.500
36 83796-59R00-5PK GARNISH, DOOR INNER RH (BLACK) 1 Rp29.000
37 09409-10327-000
SUB: 09409B10312N000		 •CLIP 2 Rp5.000
38 83797-59R00-5PK GARNISH, DOOR INNER LH (BLACK) 1 Rp29.000
39 09409-10327-000
SUB: 09409B10312N000		 •CLIP 2 Rp5.000
40 83931-77M00-0CB TAPE, DOOR OUT FR RH (BLACK) 1 Rp70.500
41 83932-77M00-0CB TAPE, DOOR OUT FR LH (BLACK) 1 Rp69.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
