ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

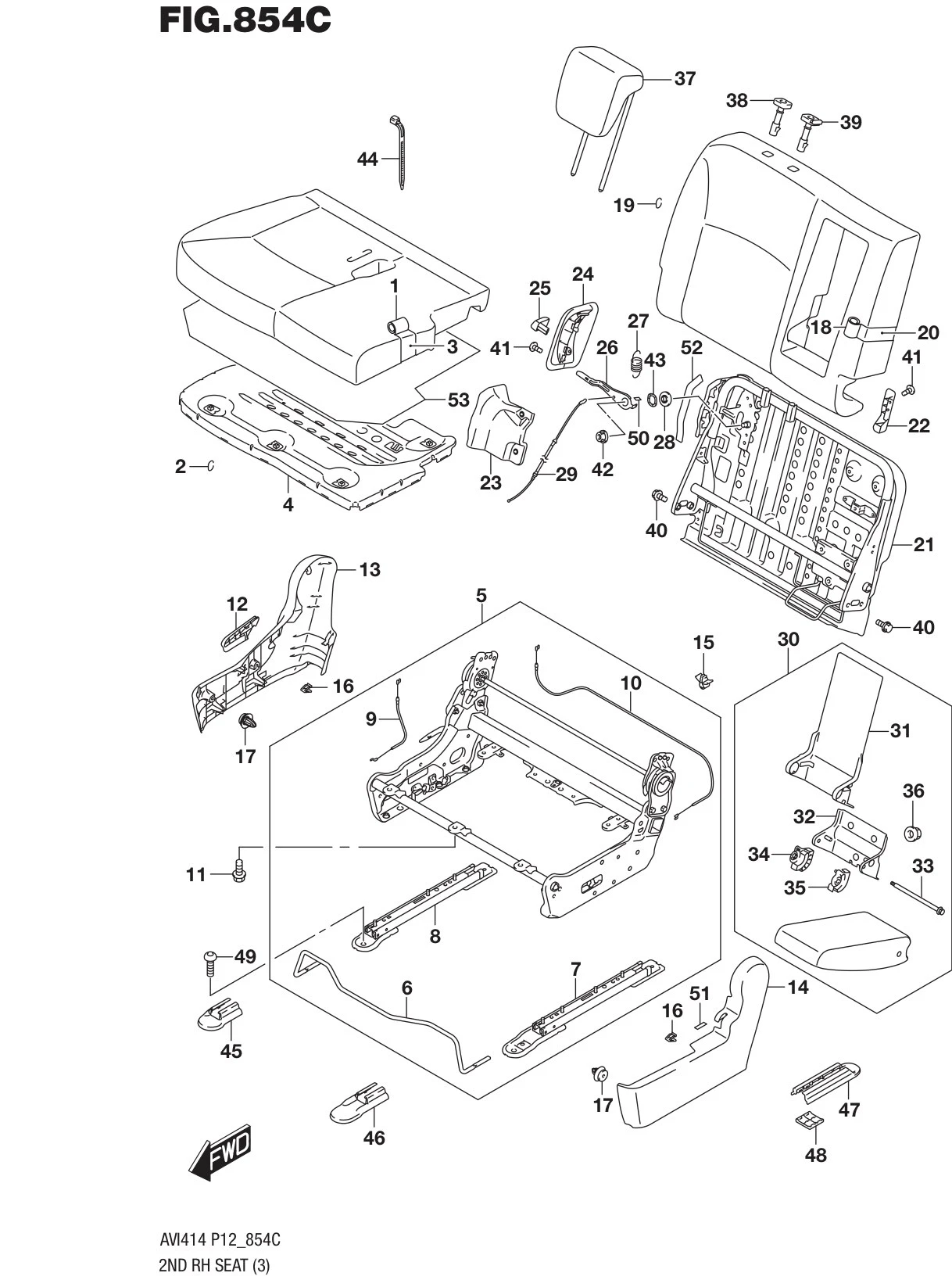

FIG.854C 2ND RH SEAT

FIG.854C 2ND RH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1-2 87180-60MC0-KCG
SUB: 87180B60MC0NKCG		 TRIM, RR CUSHION RH (BEIGE) 1 Rp465.000 TYPE 2: GL,GX
1-1 87180-60MA0-KCG
SUB: 87180B60MA0NKCG		 TRIM, RR CUSHION RH (BEIGE) 1 Rp486.500 TYPE 1: GL,GX
1-4 87180-58RD0-CBD TRIM, RR CUSHION RH (BROWN) 1 Rp583.500 Dreza
1-3 87180-60MC0-B9J TRIM, RR CUSHION RH (GOLD/GRAY) 1 Rp486.500 TYPE 3: GL,GX
2 09387-19001-000
SUB: 09387B19001N000		 RING 3 Rp9.000
3-1 87160-60MA0-000
SUB: 87160B60MA0N000		 PAD, RR CUSHION RH 1 Rp471.500 TYPE 1
3-2 87160-60MC0-000
SUB: 87160B60MC0N000		 PAD, RR CUSHION RH 1 Rp467.500 TYPE 2,TYPE 3
4 87110-60M00-000
SUB: 87110B60M00N000		 PANEL, RR CUSHION RH 1 Rp559.000
5 86805-60M00-000
SUB: 86805B60M00N000		 ADJUSTER ASSY, RR RH 1 Rp4.772.500
6 86781-60M20-000 •HANDLE, RR SEAT ADJUSTER RH 1 Rp175.000
7 86810-60M00-000
SUB: 86810B60M00N000		 •ADJUSTER ASSY, RR INSIDE RH 1 Rp454.000
8 86830-60M00-000
SUB: 86830B60M00N000		 •ADJUSTER ASSY, RR OUTSIDE RH 1 Rp422.000
9 87131-60M00-000
SUB: 87131B60M00N000		 •CABLE, SLIDE RELEASE OUTSIDE 1 Rp53.500
10 87132-60M00-000
SUB: 87132B60M00N000		 •CABLE, SLIDE RELEASE INSIDE RH 1 Rp71.000
11 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 5 Rp3.500
12 85211-58RA0-V6N
SUB: 85211B68K00NV6N		 KNOB, RECLINING RH (BEIGE) 1 Rp10.000
13 87221-60M00-V6N
SUB: 87221-60MA0-V6N		 COVER, RCLNG OUTSIDE RH (BEIGE) 1 Rp62.500
14 87241-60MA0-V6N
SUB: 87241B60MA0NV6N		 COVER, RCLNG INSIDE RH (BEIGE) 1 Rp64.000
15 09403M04401-000 CLAMP, RELEASE CABLE FR 1 Rp4.500
16 09409-10308-000
SUB: 09409B10308N000		 CLIP 2 Rp6.500
17 09409-10314-000 CLIP 4 Rp17.000
18-1 87380-60M10-KCG
SUB: 87380B60M10NKCG		 TRIM, RR BACK RH (BEIGE) 1 Rp579.500 TYPE 1,TYPE 2
18-2 87380-60M10-B9J TRIM, RR BACK RH (GOLD/GRAY) 1 Rp586.500 TYPE 3
18-3 87380-58RD0-CBD TRIM, RR BACK RH (BROWN) 1 Rp452.500 Dreza
19 09387-19001-000
SUB: 09387B19001N000		 RING 3 Rp9.000
20 87360-60M10-000
SUB: 87360B60M10N000		 PAD, RR BACK RH 1 Rp1.659.500
21 87310-60MB0-000
SUB: 87310B60MB0N000		 FRAME, RR BACK RH 1 Rp4.473.000
22 87333-60M00-V6N
SUB: 87333B60M00NV6N		 COVER, RR BACK RH 1 Rp8.000
23 87319-60M00-000
SUB: 87319B60M00N000		 COVER, WALKIN LEVER RH 1 Rp17.500
24 87331-60MA0-V6N
SUB: 87331B60MA0NV6N		 BEZEL, WALKIN RH (BEIGE) 1 Rp15.000
25 87332-60M00-V6N
SUB: 87332B60M00NV6N		 KNOB, WALKIN RH (BEIGE) 1 Rp5.500
26 87322-60M00-000
SUB: 87322B60M00N000		 LEVER, WALKIN RH 1 Rp14.000
27 87323-60M00-000
SUB: 87323B60M00N000		 SPRING, WALKIN LEVER 1 Rp5.500
28 87326-60M00-000
SUB: 87326B60M00N000		 BUSH, WALKIN LEVER 1 Rp6.500
29 87133-60M00-000
SUB: 87133B60M00N000		 CABLE, WALKIN 1 Rp82.000
30-2 87501-60M00-BQ3
SUB: 87501-60M00-BQ4		 ARMREST ASSY, RR (BEIGE) 1 Rp641.500 TYPE 3
30-1 87501-60M00-KCE
SUB: 87501B60M00NKCE		 ARMREST ASSY, RR (BEIGE) 1 Rp780.000 TYPE 1,TYPE 2
30-3 87501-60M00-B9R ARMREST ASSY, RR (BROWN) 1 Rp783.000 Dreza
31 87542-60M00-V6N
SUB: 87542B60M00NV6N		 •COVER, RR ARMREST (BEIGE) 1 Rp45.000
32 87520-60M00-000
SUB: 87520B60M10N000		 •HINGE, RR ARMREST 1 Rp123.500
33 DISCONTINUE
SUB: 87541B60M00N000		 •BOLT, RR ARMREST 1 -
34 87543-60M00-000
SUB: 87543B60M00N000		 •BUSH, RR ARMREST RH 1 Rp9.500
35 87544-60M00-000
SUB: 87544B60M00N000		 •BUSH, RR ARMREST LH 1 Rp9.500
36 08316-1008A-000
SUB: 08316B1008AN000		 NUT 3 Rp3.500
37-1 86401-66J21-KCF HEADRESTRAINT ASSY, RR (BEIGE) 1 Rp480.500 TYPE 1,TYPE 2
37-2 86401-66J21-BQ3 HEADRESTRAINT ASSY, RR (BEIGE) 1 Rp480.500 TYPE 3
37-3 86401-66J21-QA1 HEADRESTRAINT ASSY, RR (BROWN) 1 Rp480.500 Dreza
38-1 DISCONTINUE
SUB: 85341-63J10-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 - TYPE 1,TYPE 2
38-2 85341-58RA1-V6N
SUB: 85341-58RA0-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 Rp10.500 TYPE 3, Dreza
39-1 85840-63J10-V6N GUIDE, HEADRESTRAINT (BEIGE) 1 Rp87.000 TYPE 1,TYPE 2
39-2 DISCONTINUE
SUB: 85840-58RA0-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 - TYPE 3, Dreza
40 01550-1020A-000 BOLT 4 Rp21.000
41 03241-0508A-000 SCREW 2 Rp10.500
42 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
43 09164-22012-000 WASHER 1 Rp28.500
44 36990-25G00-000
SUB: 09407-14403L000		 CLAMP 1 Rp13.000
45-1 87491-60M00-V6N
SUB: 87491B60M00NV6N		 COVER, RR MTG OUTSIDE (BEIGE) 1 Rp117.500 TYPE 1,TYPE 2
45-2 87491-60M00-R8R COVER, RR MTG OUTSIDE (BROWN) 1 Rp18.000 TYPE 3, Dreza
46-1 87492-60M00-V6N
SUB: 87492B60M00NV6N		 COVER, RR MTG INSIDE (BEIGE) 1 Rp118.500 TYPE 1,TYPE 2
46-2 87492-60M00-R8R COVER, RR MTG INSIDE (BROWN) 1 Rp19.000 TYPE 3, Dreza
47-1 87494-60M00-V6N
SUB: 87494B60M00NV6N		 COVER, RR MTG (BEIGE) 2 Rp108.500 TYPE 1,TYPE 2
47-2 87494-60M00-R8R COVER, RR MTG (BROWN) 2 Rp17.000 TYPE 3, Dreza
48-1 87495-60M00-V6N
SUB: 87495B60M00NV6N		 COVER, RR MTG LOWER (BEIGE) 2 Rp87.000 TYPE 1,TYPE 2
48-2 87495-60M00-R8R COVER, RR MTG LOWER (BROWN) 2 Rp13.000 TYPE 3
49 87493-60M00-000 BOLT, RR MTG 4 Rp23.000
50 87329-60M00-000
SUB: 87329B60M00N000		 SILENCER, RR BACK 2 Rp11.000
51 87329-60M10-000
SUB: 87329B60M10N000		 SILENCER, RR CUSHION 1 Rp11.000
52 88327-60M10-000
SUB: 88327B60M10N000		 PAD, 2ND BACK SILENCER 1 Rp6.500
53 87169-60M00-000
SUB: 87169B60M00N000		 SILENCER, RR CUSHION RH 1 Rp50.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
