ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

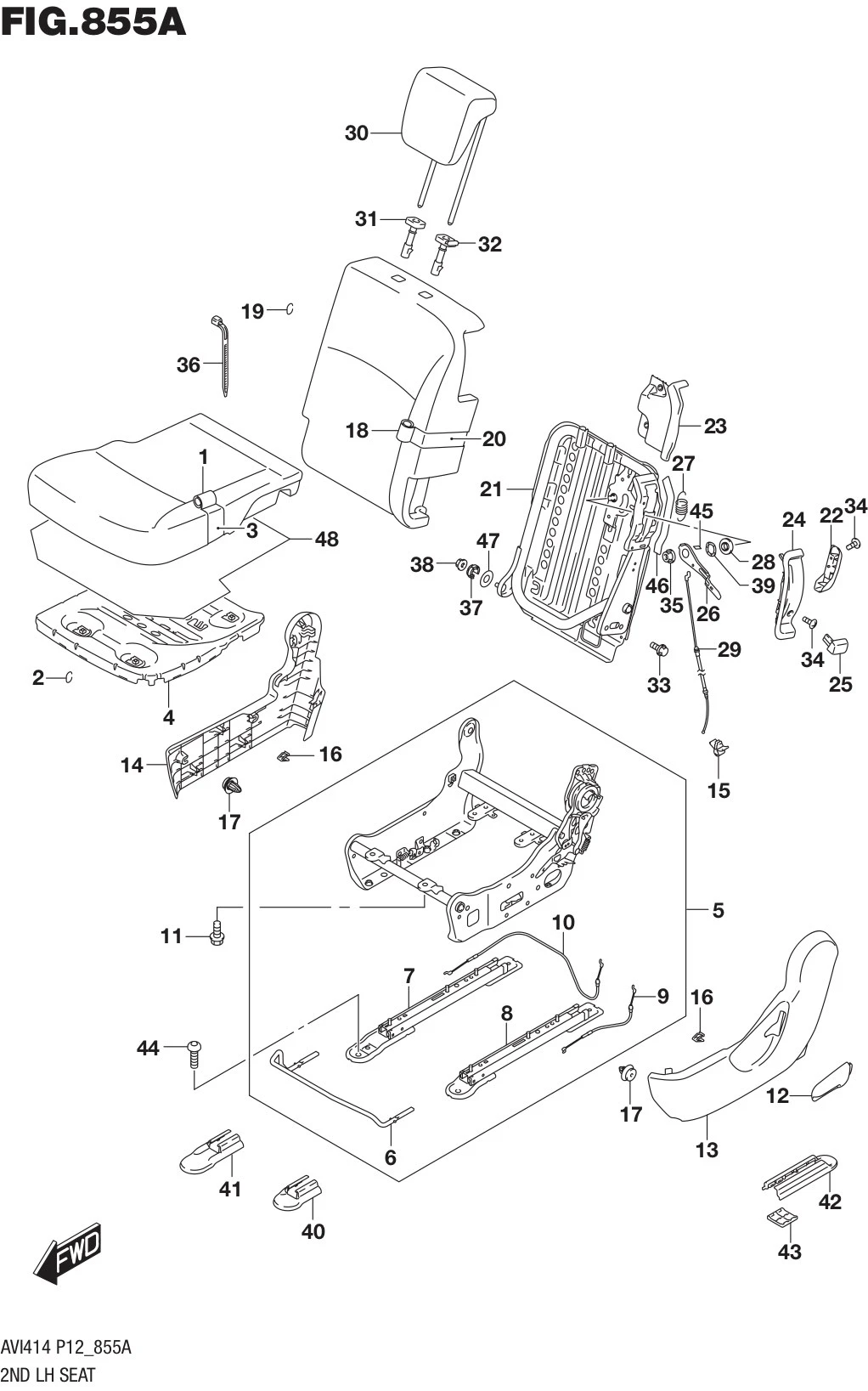

FIG.855A 2ND LH SEAT

FIG.855A 2ND LH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1-2 87680-60M00-KCG
SUB: 87680B60M00NKCG		 TRIM, RR CUSHION LH (BEIGE) 1 Rp366.000 TYPE 1,TYPE 2 : GL, GX
1-1 87680-60M00-KCK
SUB: 87680B60M00NKCK		 TRIM, RR CUSHION LH (BEIGE) 1 Rp368.500 TYPE 1,TYPE 2 : GA
1-5 87680-58RD0-CBD TRIM, RR CUSHION LH (BROWN) 1 Rp583.500 Dreza
1-3 87680-60M00-B9H TRIM, RR CUSHION LH (SILVER/BLACK) 1 Rp415.500 TYPE 3 : GA
1-4 87680-60M00-B9J TRIM, RR CUSHION LH (BEIGE) 1 Rp366.000 TYPE 3 : GL, GX
2 09387-19001-000
SUB: 09387B19001N000		 RING 3 Rp9.000
3 87660-60M00-000
SUB: 87660B60M00N000		 PAD, RR CUSHION LH 1 Rp467.500
4 87610-60M00-000
SUB: 87610B60M00N000		 PANEL, RR CUSHION LH 1 Rp559.000
5-1 86806-60M10-000
SUB: 86806B60M00N000		 ADJUSTER ASSY, RR LH 1 Rp3.769.000 TYPE 1,TYPE 2 : GA
5-2 86806-60M10-000
SUB: 86806B60M10N000		 ADJUSTER ASSY, RR LH 1 Rp3.769.000 TYPE 1,TYPE 2 : GL, GX, TYPE 3, Dreza
6 86782-60M20-000 •HANDLE, RR SEAT ADJUSTER LH 1 Rp175.000
7 86820-60M00-000
SUB: 86820B60M00N000		 •ADJUSTER ASSY, RR INSIDE LH 1 Rp454.000
8 86840-60M00-000
SUB: 86840B60M00N000		 •ADJUSTER ASSY, RR OUTSIDE LH 1 Rp422.000
9 87131-60M00-000
SUB: 87131B60M00N000		 •CABLE, SLIDE RELEASE OUTSIDE 1 Rp53.500
10 87632-60M00-000
SUB: 87632B60M00N000		 •CABLE, SLIDE RELEASE INSIDE LH 1 Rp75.000
11 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 4 Rp3.500
12 85711-58RA0-V6N
SUB: 85711B68K00NV6N		 KNOB, RECLINING LH (BEIGE) 1 Rp10.000
13 87721-60M00-V6N
SUB: 87721B60M00NV6N		 COVER, RCLNG OUTSIDE LH (BEIGE) 1 Rp62.500
14 87741-60MA0-V6N
SUB: 87741B60MA0NV6N		 COVER, RCLNG INSIDE LH (BEIGE) 1 Rp64.500
15 09403M04401-000 CLAMP 1 Rp4.500
16 09409-10308-000
SUB: 09409B10308N000		 CLIP 2 Rp6.500
17 09409-10314-000 CLIP 4 Rp17.000
18-1 87880-60M00-KCK
SUB: 87880B60M00NKCK		 TRIM, RR BACK LH (BEIGE) 1 Rp586.500 TYPE 1,TYPE 2 : GA
18-2 87880-60M10-KCG
SUB: 87880B60M10NKCG		 TRIM, RR BACK LH (BEIGE) 1 Rp579.500 TYPE 1,TYPE 2 : GL, GX
18-3 87880-60M10-B9H TRIM, RR BACK LH (BEIGE) 1 Rp427.500 TYPE 3 : GA
18-4 87880-60M10-B9J TRIM, RR BACK LH (GOLD/GRAY) 1 Rp586.500 TYPE 3 : GL, GX
18-5 87880-58RD0-CBD TRIM, RR BACK LH (BROWN) 1 Rp452.500 Dreza
19 09387-19001-000
SUB: 09387B19001N000		 RING 3 Rp9.000
20 87860-60M10-000
SUB: 87860B60M10N000		 PAD, RR BACK LH 1 Rp467.500
21-1 87810-60M00-000
SUB: 87810B60M00N000		 FRAME, RR BACK LH 1 Rp946.000 TYPE 1,TYPE 2 : GA
21-2 87810-60MB0-000
SUB: 87810B60MB0N000		 FRAME, RR BACK LH 1 Rp954.000 TYPE 1,TYPE 2 : GL, GX, TYPE 3, Dreza
22 87833-60M00-V6N
SUB: 87833B60M00NV6N		 COVER, RR BACK LH 1 Rp8.000
23 87819-60M00-000
SUB: 87819B60M00N000		 COVER, WALKIN LEVER LH 1 Rp19.500
24 87831M60M00-V6N
SUB: 87831B60MA0NV6N		 BEZEL, WALKIN LH (BEIGE) 1 Rp18.500
25 87832-60M00-V6N
SUB: 87832B60M00NV6N		 KNOB, WALKIN LH (BEIGE) 1 Rp5.500
26 87822-60M00-000
SUB: 87822B60M00N000		 LEVER, WALKIN LH 1 Rp16.000
27 87323-60M00-000
SUB: 87323B60M00N000		 SPRING, WALKIN LEVER 1 Rp5.500
28 87326-60M00-000
SUB: 87326B60M00N000		 BUSH, WALKIN LEVER 1 Rp6.500
29 87133-60M00-000
SUB: 87133B60M00N000		 CABLE, WALKIN 1 Rp82.000
30-1 86401-66J21-KCF HEADRESTRAINT ASSY, RR (BEIGE) 1 Rp480.500 TYPE 1,TYPE 2 : GL, GX
30-2 86401-66J21-RC4 HEADRESTRAINT ASSY, RR (BEIGE) 1 Rp394.000 TYPE 3 : GA
30-3 86401-66J21-BQ3 HEADRESTRAINT ASSY, RR (BEIGE) 1 Rp480.500 TYPE 3 : GL, GX
30-4 86401-66J21-QA1 HEADRESTRAINT ASSY, RR (BROWN) 1 Rp480.500 Dreza
31-1 DISCONTINUE
SUB: 85341-63J10-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 - TYPE 1,TYPE 2
31-2 85341-58RA1-V6N
SUB: 85341-58RA0-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 Rp10.500 TYPE 3, Dreza
32-1 85840-63J10-V6N GUIDE, HEADRESTRAINT (BEIGE) 1 Rp87.000 TYPE 1,TYPE 2
32-2 DISCONTINUE
SUB: 85840-58RA0-V6N		 GUIDE, HEADRESTRAINT (BEIGE) 1 - TYPE 3, Dreza
33 01550-1020A-000 BOLT 2 Rp22.000
34 03241-0508A-000 SCREW 2 Rp10.500
35 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
36 36990-25G00-000
SUB: 09407-14403L000		 CLAMP 1 Rp13.000
37 87327-60M00-000
SUB: 87327B60M00N000		 BUSH, RR HINGE 1 Rp5.500
38 09159-08119-000 NUT 1 Rp20.000
39 09164-22012-000 WASHER 1 Rp31.000
40-1 87491-60M00-V6N
SUB: 87491B60M00NV6N		 COVER, RR MTG OUTSIDE (BEIGE) 1 Rp117.500 TYPE 1,TYPE 2
40-2 87491-60M00-R8R COVER, RR MTG OUTSIDE (BROWN) 1 Rp18.000 TYPE 3
41-1 87492-60M00-V6N
SUB: 87492B60M00NV6N		 COVER, RR MTG INSIDE (BEIGE) 1 Rp118.500 TYPE 1,TYPE 2
41-2 87492-60M00-R8R COVER, RR MTG INSIDE (BROWN) 1 Rp19.000 TYPE 3
42-1 87494-60M00-V6N
SUB: 87494B60M00NV6N		 COVER, RR MTG (BEIGE) 2 Rp108.500 TYPE 1,TYPE 2
42-2 87494-60M00-R8R COVER, RR MTG (BROWN) 2 Rp17.000 TYPE 3
43-1 87495-60M00-V6N
SUB: 87495B60M00NV6N		 COVER, RR MTG LOWER (BEIGE) 2 Rp87.000 TYPE 1,TYPE 2
43-2 87495-60M00-R8R COVER, RR MTG LOWER (BROWN) 2 Rp13.000 TYPE 3
44 87493-60M00-000 BOLT, RR MTG 4 Rp23.000
45 87329-60M00-000
SUB: 87329B60M00N000		 SILENCER, RR BACK 2 Rp11.000
46 88327-60M10-000
SUB: 88327B60M10N000		 PAD, 2ND BACK SILENCER 1 Rp6.500
47 87336-60M10-000
SUB: 87336B60M10N000		 TAPE, RR BACK 1 Rp18.500
48 87669-60M00-000
SUB: 87669B60M00N000		 SILENCER, RR CUSHION LH 1 Rp42.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
