ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

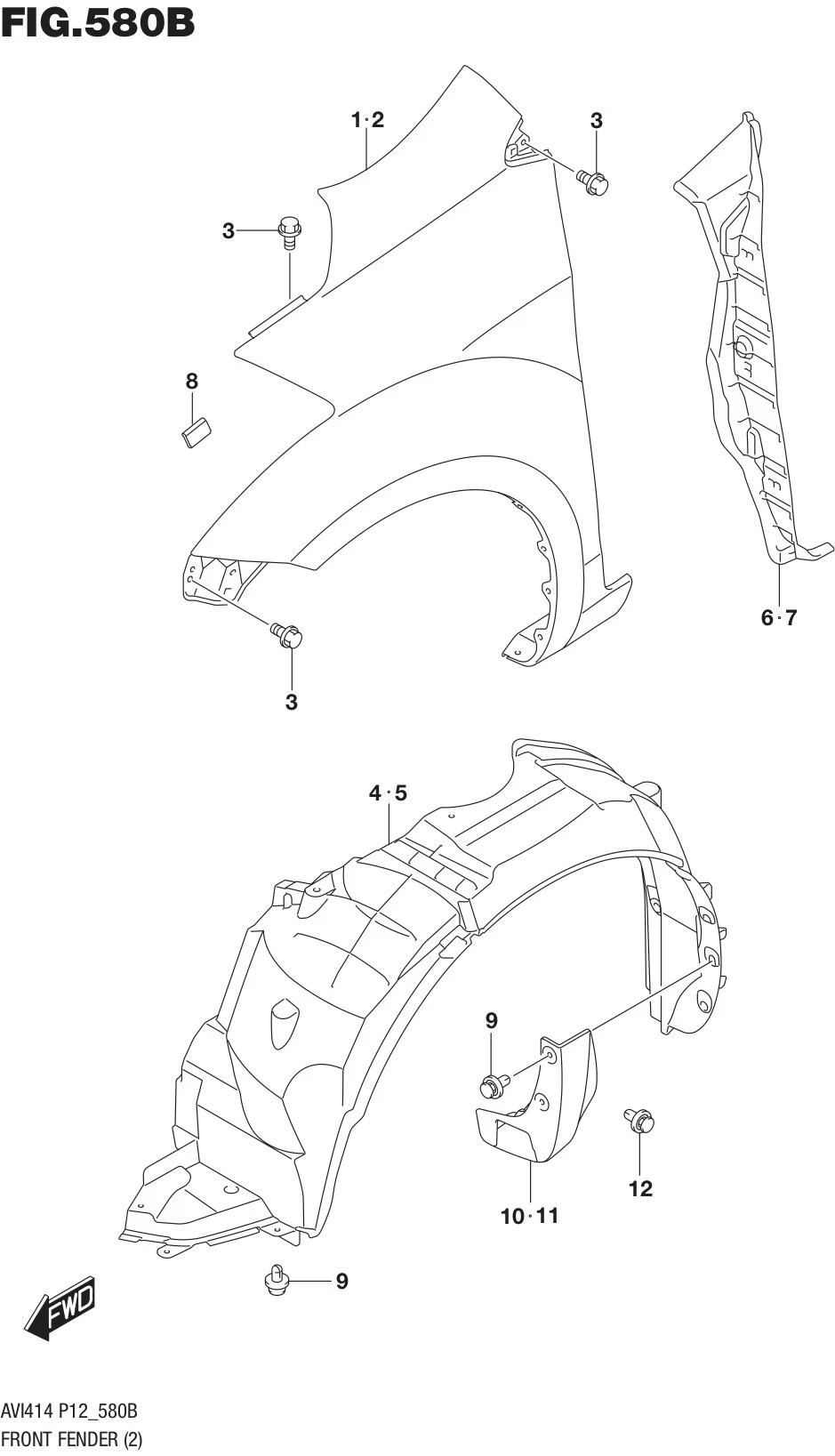

FIG.580B FRONT FENDER

FIG.580B FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 57611-77M10-000 PANEL, FRONT FENDER RH 1 Rp973.000
2 57711-77M10-000 PANEL, FRONT FENDER LH 1 Rp973.000
3 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 12 -
4 72321-59R50-000 LINING, FRONT FENDER RH 1 Rp356.500
5 72322-59R50-000 LINING, FRONT FENDER LH 1 Rp356.500
6 72351-60M00-000
SUB: 72351B60M00N000		 COVER, FRONT FENDER RH 1 Rp22.000
7 72352-60M00-000
SUB: 72352B60M00N000		 COVER, FRONT FENDER LH 1 Rp22.000
8 72377-71L00-000
SUB: 72377B71L00N000		 CUSHION, FR FENDER 2 Rp11.500
9 09409-07340-000 CLIP 24 Rp17.500
10 72211-60M10-5PK
SUB: 72211B60M00N5PK		 FLAP, MAD FRONT RH (BLACK) 1 Rp336.000
11 72221-60M10-5PK
SUB: 72221B60M00N5PK		 FLAP, MAD FRONT LH (BLACK) 1 Rp336.000
12 09409-07340-000 CLIP 2 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
