ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

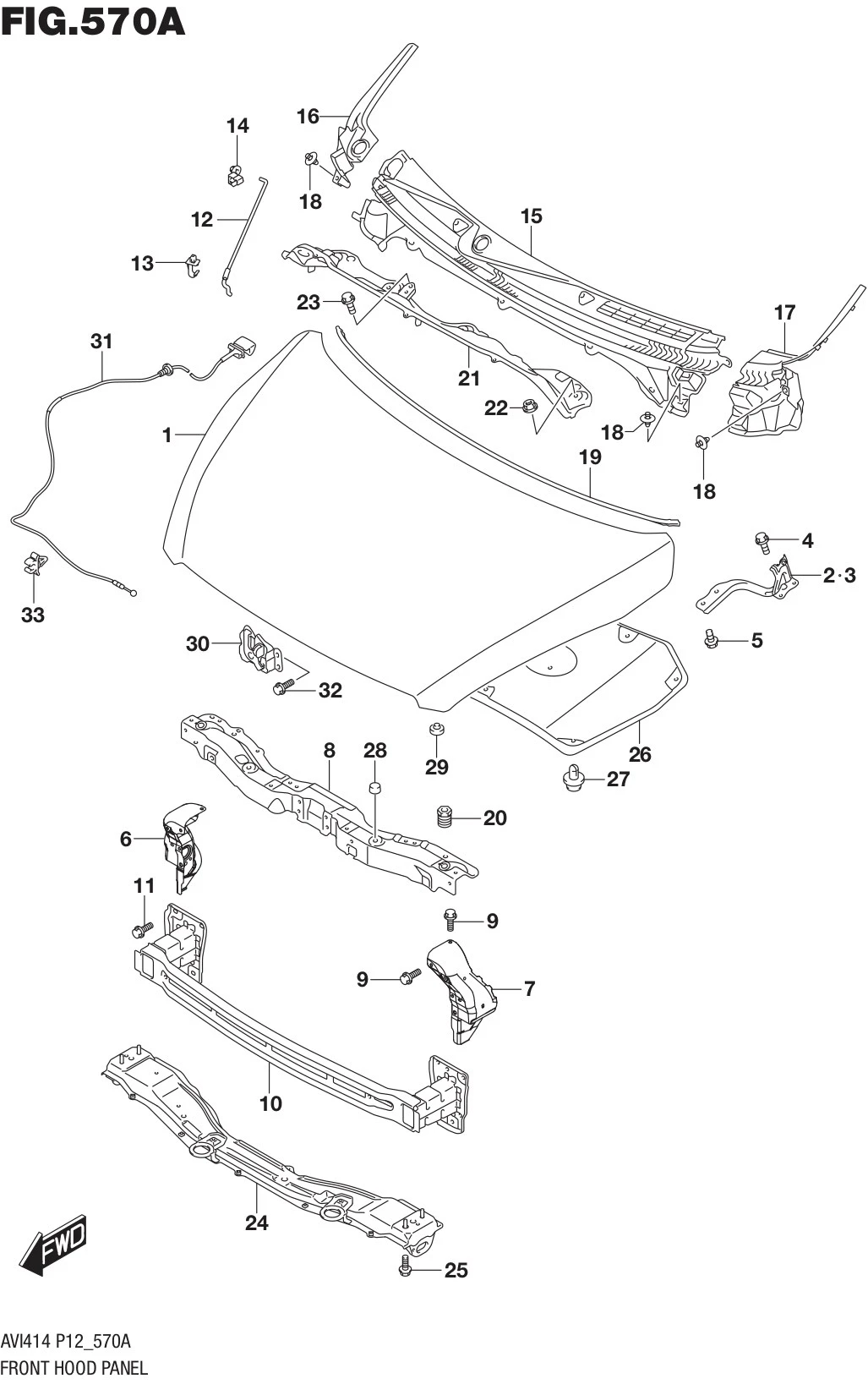

FIG.570A FRONT HOOD PANEL

FIG.570A FRONT HOOD PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 57300-77M00-000
SUB: 57300B77M00N000		 PANEL, FRONT HOOD 1 Rp2.351.000
2 57410-83K00-000
SUB: 57410B83K00N000		 HINGE, FRONT HOOD RH 1 Rp71.500
3 57420-83K00-000
SUB: 57420B83K00N000		 HINGE, FRONT HOOD LH 1 Rp71.500
4 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 4 -
5 02162-0616A-000 SCREW 4 Rp3.000
6 58110-74L00-000
SUB: 58110B74L00N000		 BRACE, LAMP SUPPORT RH 1 Rp239.500
7 58120-74L00-000
SUB: 58120B74L00N000		 BRACE, LAMP SUPPORT LH 1 Rp247.000
8-1 58230-77M01-000
SUB: 58230B60M00N000		 MEMBER, HOOD LOCK 1 Rp368.000 TO 2013-3
8-2 58230-77M01-000
SUB: 58230B77M00N000		 MEMBER, HOOD LOCK 1 Rp368.000 FROM 2013-4
9 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500
10-2 58270-59R00-000
SUB: 58270-58R00-000		 MEMBER, FR BUMPER 1 Rp618.000 TYPE 3
10-3 58270-59R50-000 MEMBER, FR BUMPER 1 Rp379.500 Dreza
10-1 58270-60M00-000
SUB: 58270B60M00N000		 MEMBER, FR BUMPER 1 Rp316.500 TYPE 1, TYPE 2
11 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 7 Rp5.500
12 72310M74L00-000
SUB: 72310B74L00N000		 STAY, FRONT HOOD 1 Rp31.000
13 72312-67LG0-000
SUB: 72312B67LG0N000		 HOLDER, FRONT HOOD STAY 1 Rp7.500
14 09209M09L02-000
SUB: 09209M09007-000		 LINKAGE 1 Rp4.500
15-1 72330-77M00-5PK
SUB: 72330B60M00N5PK		 GARNISH ASSY, COWL TOP (BLACK) 1 Rp287.500
15-2 72330-77M00-5PK
SUB: 72330B77M00N5PK		 GARNISH ASSY, COWL TOP (BLACK) 1 Rp287.500 FROM 2012-8
16 72340-59R50-5PK
SUB: 72340B60M00N5PK		 GARNISH, COWL TOP SIDE RH 1 Rp73.500
17 72360-60M00-5PK GARNISH, COWL TOP SIDE LH 1 -
18 09409M07L02-5PK
SUB: 09409M07308-5PK		 CLIP (BLACK) 9 Rp7.500
19 72362-54M00-000 SEAL, HOOD REAR 1 Rp315.500
20 72372-63J00-000
SUB: 72372B63J00N000		 CUSHION, FRONT HOOD FRONT 2 Rp8.000
21-1 72380-77M00-000
SUB: 72380B77M00N000		 PANEL, FR COWL UPPER 1 Rp485.000 TYPE 1, TYPE 2, TYPE 3 : GA, GL
21-2 72380-77M00-000
SUB: 72380B60M00N000		 PANEL, FR COWL UPPER 1 Rp485.000 TYPE 3 : GX
22 08316-1006A-000
SUB: 08316B1006AN000		 NUT 4 Rp2.000
23 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
24 72390-74L00-000
SUB: 72390B74L00N000		 CROSSMEMBER, FRONT LOWER 1 Rp817.000
25 09103-08288-000 BOLT (8X25) 4 Rp20.500
26 72440M60M00-000
SUB: 72440B60M00N000		 SILENCER, FRONT HOOD 1 Rp229.500 TYPE 3 : GX
27 09409-07340-000 CLIP 12 Rp17.500 TYPE 3 : GX
28 09321-10023-000
SUB: 09321B10023N000		 CUSHION 2 Rp6.000
29 09321-07003-000
SUB: 09321B07003N000		 CUSHION 2 Rp5.500
30 82110-77M00-000
SUB: 82110B77M00N000		 LATCH, HOOD 1 Rp133.000
31 82160-77M00-000
SUB: 82160B77M00N000		 CABLE, HOOD LATCH RELEASE 1 Rp70.500
32 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 3 Rp3.500
33 09403M04401-000 CLAMP 5 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
