ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

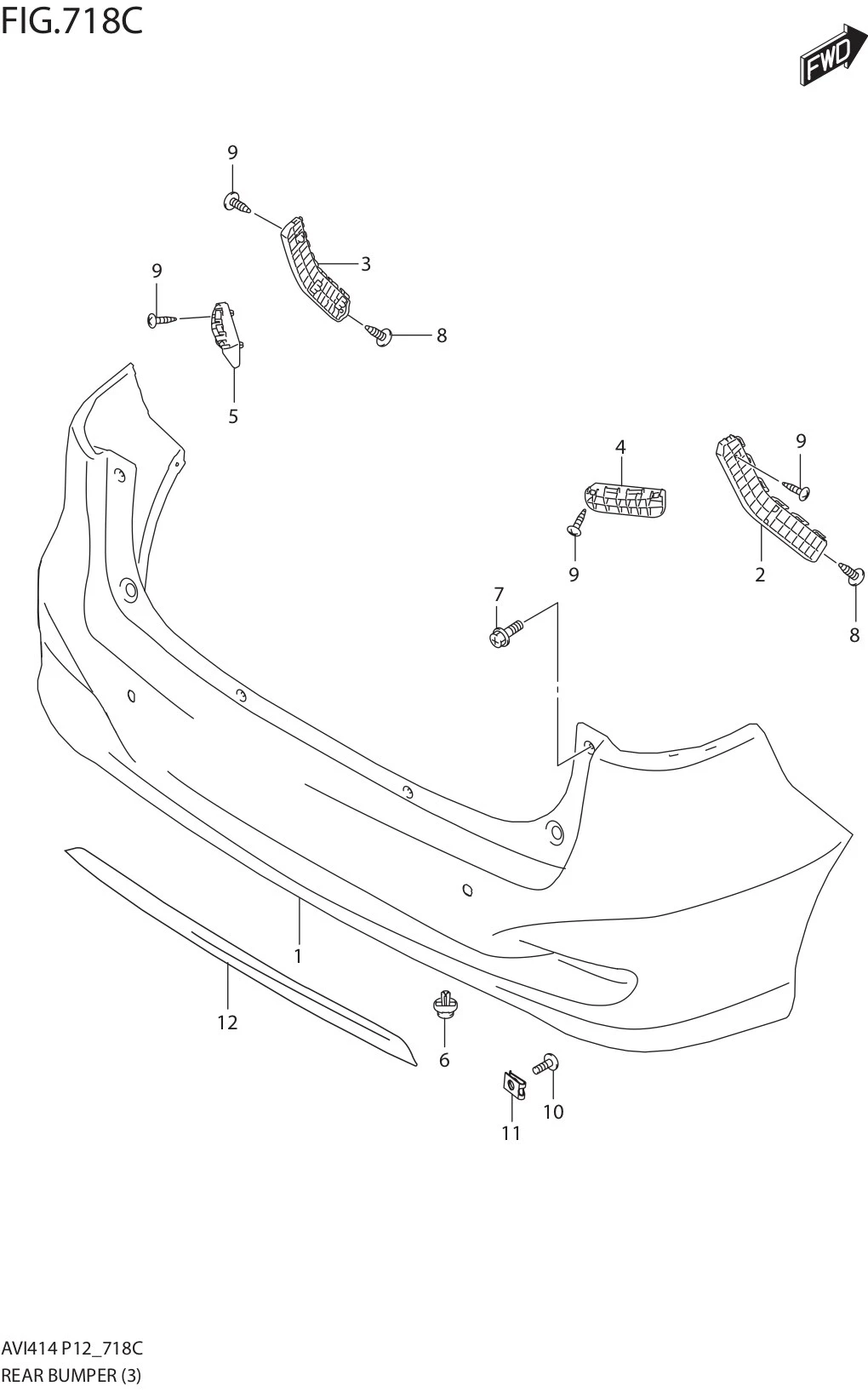

FIG.718C REAR BUMPER

FIG.718C REAR BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71811-59R50-799 BUMPER, REAR (PRIMARY) 1 Rp2.196.000 PAINT TO MATCH
2 71821-60M00-000
SUB: 71821B60M00N000		 HOLDER, RR BUMPER SIDE RH 1 Rp26.500
3 71822-60M00-000
SUB: 71822B60M00N000		 HOLDER, RR BUMPER SIDE LH 1 Rp26.500
4 71823-60M00-000
SUB: 71823B60M00N000		 HOLDER, RR BUMPER SIDE RR RH 1 Rp16.500
5 71824-60M00-000
SUB: 71824B60M00N000		 HOLDER, RR BUMPER SIDE RR LH 1 Rp16.500
6 09409-08327-000 CLIP 4 Rp15.000
7 01551-0616C-000 BOLT 4 Rp14.500
8 03241-0616E-000 SCREW 2 Rp19.500
9 03541-0512A-000 SCREW 10 Rp3.500
10 09136-05068-000 SCREW 2 Rp15.000
11 09148-05047-000
SUB: 09148B05047N000		 NUT 2 Rp3.500
12 990H0-990AW-048 REAR BUMPER GARNISH 1 Rp462.000 Dreza GS

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
