ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580B FRONT FENDERFIG.640A SIDE BODY PANELFIG.717C FRONT BUMPERFIG.718C REAR BUMPERFIG.720A INSTRUMENT PANELFIG.750B COVER CAPFIG.755A FUEL LID OPENERFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.800C FRONT DOOR PANELFIG.801C REAR DOOR PANELFIG.805C BACK DOOR PANELFIG.848A FRONT LH SEATFIG.849B FRONT RH SEATFIG.854C 2ND RH SEATFIG.855A 2ND LH SEATFIG.857A 3RD RH SEATFIG.858A 3RD LH SEATFIG.952J AIR CONDITIONER

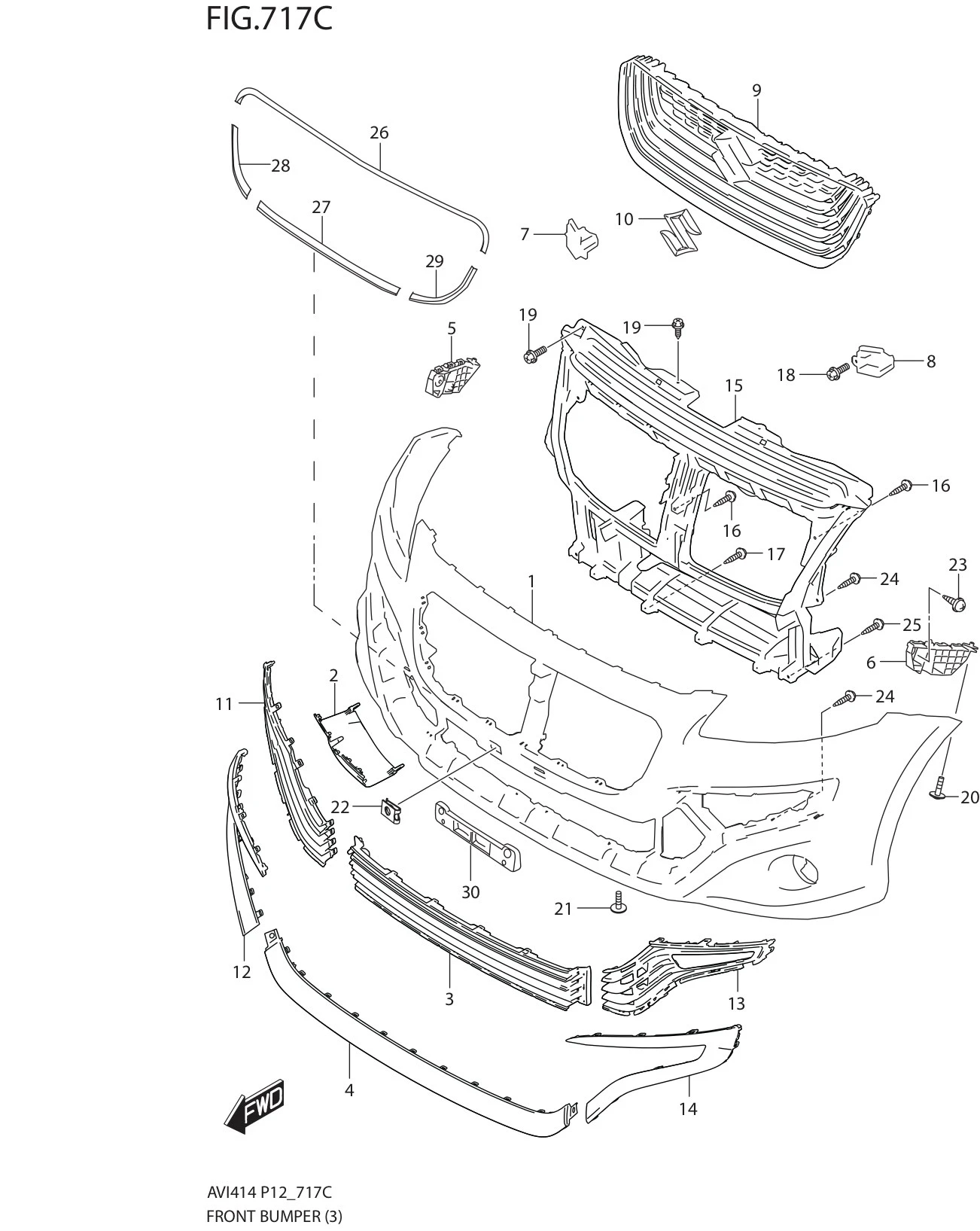

FIG.717C FRONT BUMPER

FIG.717C FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711-59R50-799 BUMPER, FRONT (PRIMARY) 1 Rp1.892.500 PAINT TO MATCH
2 71712-59R51-799
SUB: 71712-59R50-799		 CAP, FRONT BUMPER (PRIMARY) 1 Rp17.000 PAINT TO MATCH
3 71721-59R50-5PK GRILLE, RADIATOR LOWER (BLACK) 1 Rp38.500
4 71722-59R50-0PG GARNISH, RDTR LOWER (CHROME) 1 Rp311.500
5 71731-77M10-000
SUB: 71731B77M10N000		 HOLDER, FR BUMPER SIDE RH 1 Rp26.500
6 71732-77M10-000
SUB: 71732B77M10N000		 HOLDER, FR BUMPER SIDE LH 1 Rp26.500
7 71733-60MA0-000 HOLDER, FR BUMPER FR RH 1 Rp45.500
8 71734-60MA0-000 HOLDER, FR BUMPER FR LH 1 Rp45.500
9 71741-59R50-5PK GRILLE, RADIATOR UPPER (BLACK) 1 Rp193.000
10 77811-65J00-0PG •EMBLEM S (CHROME) 1 Rp131.500
11 71751-59R50-5PK BEZEL, POSITION LAMP RH (BLACK) 1 Rp20.500
12 71752-59R50-0PG GARNISH, POSITION LAMP BEZEL RH (CHROME) 1 Rp228.500
13 71761-59R50-5PK BEZEL, POSITION LAMP LH (BLACK) 1 Rp20.500
14 71762-59R50-0PG GARNISH, POSITION LAMP BEZEL LH (CHROME) 1 Rp228.500
15 71770-59R50-0PG SHROUD, RADIATOR (CHROME) 1 Rp690.000
16 03541-0516A-000 SCREW 3 Rp3.500
17 03541-0516A-000 SCREW 2 Rp3.500
18 09122-76006-000 SCREW (6X16) 4 Rp13.000
19 09122-76006-000 SCREW (6X16) 4 Rp13.000
20 09136-05068-000 SCREW (5X20) 2 Rp15.000
21 09136-05068-000 SCREW (5X20) 3 Rp15.000
22 09148-06021-000 NUT 2 Rp27.500
23 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 4 Rp4.000
24 03541-0516A-000 SCREW 10 Rp3.500
25 03541-0516A-000 SCREW 1 Rp3.500
26 990H0-990AW-044 FR GRILLE GARNISH RING UPPER 1 Rp335.000 Dreza GS
27 990H0-990AW-047 FR GRILLE GARNISH RING LOWER 1 Rp218.500 Dreza GS
28 990H0-990AW-046 FR GRILLE GARNISH RING RIGHT 1 Rp102.000 Dreza GS
29 990H0-990AW-045 FR GRILLE GARNISH RING LEFT 1 Rp102.000 Dreza GS
30 990H0-990AW-049 SPACER LICENSE PLATE 1 Rp27.500 Dreza GS

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
