BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFT (5MT)FIG.410B FRONT DRIVE SHAFT (4AT)FIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKET (5MT)FIG.490B PEDAL/PEDAL BRACKET (4AT)FIG.500A BRAKE MASTER CYLINDER (5MT)FIG.500B BRAKE MASTER CYLINDER (4AT)FIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

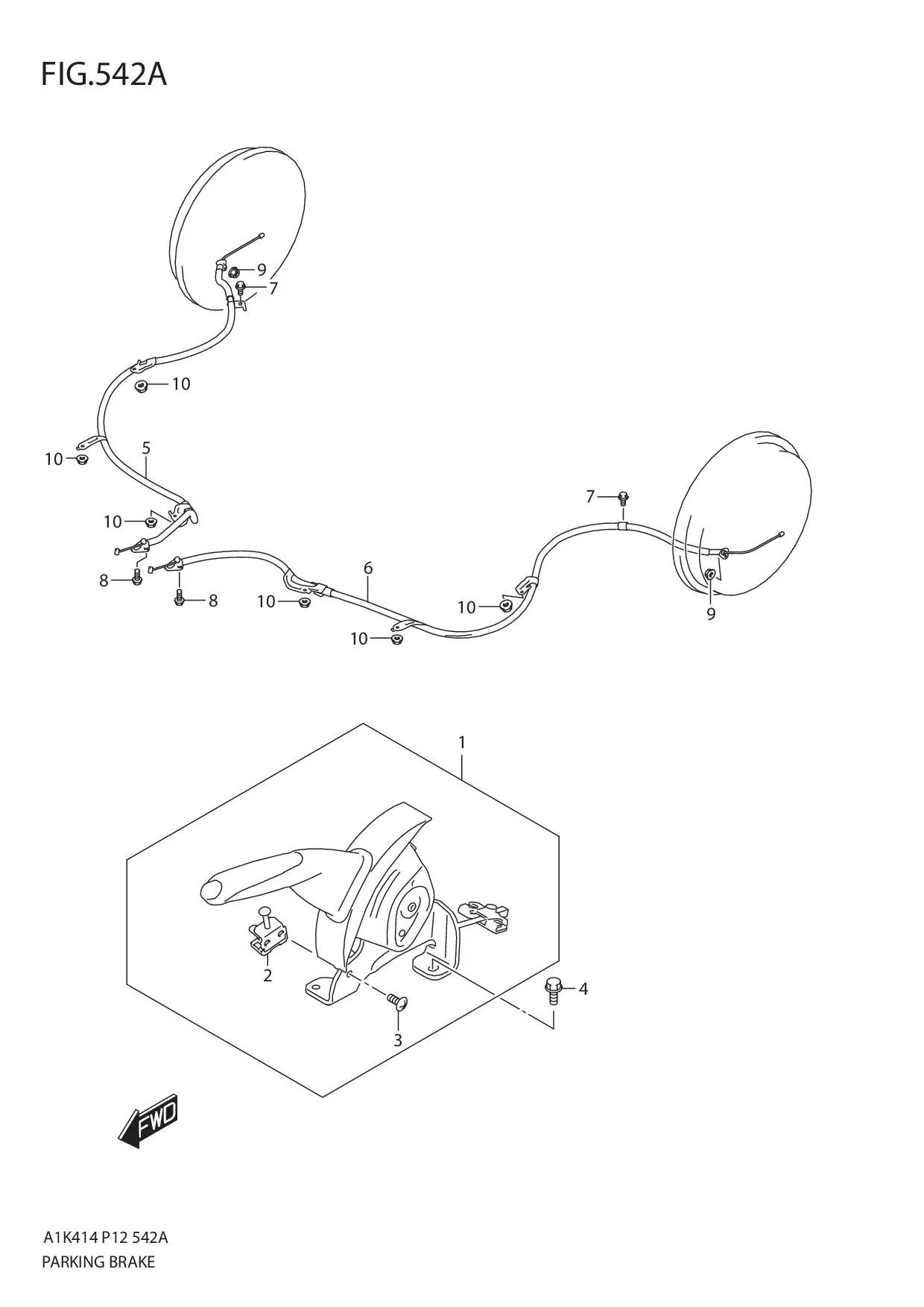

FIG.542A PARKING BRAKE

FIG.542A PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100M68P03-C48
SUB: 54100M68P01-C48		 LEVER ASSY, PARKING BRAKE (CHROME/BLACK) 1 Rp468.000
2 37940-76G00-000
SUB: 37940B76G00N000		 •SWITCH ASSY, PARKING BRAKE 1 Rp75.500
3 54115-76G00-000
SUB: 54115B76G00N000		 •SCREW 1 Rp16.000
4 01551-0820A-000 BOLT 2 Rp17.500
5 54401M68P50-000 CABLE, PARKING BRAKE RH 1 Rp356.000
6 54402M68P50-000 CABLE, PARKING BRAKE LH 1 Rp266.000
7 01550M0612A-000 BOLT 2 Rp5.000
8 02162-0616A-000 SCREW 2 Rp3.000
9 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
10 08316-1006A-000
SUB: 08316B1006AN000		 NUT 6 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
