BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFT (5MT)FIG.410B FRONT DRIVE SHAFT (4AT)FIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKET (5MT)FIG.490B PEDAL/PEDAL BRACKET (4AT)FIG.500A BRAKE MASTER CYLINDER (5MT)FIG.500B BRAKE MASTER CYLINDER (4AT)FIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

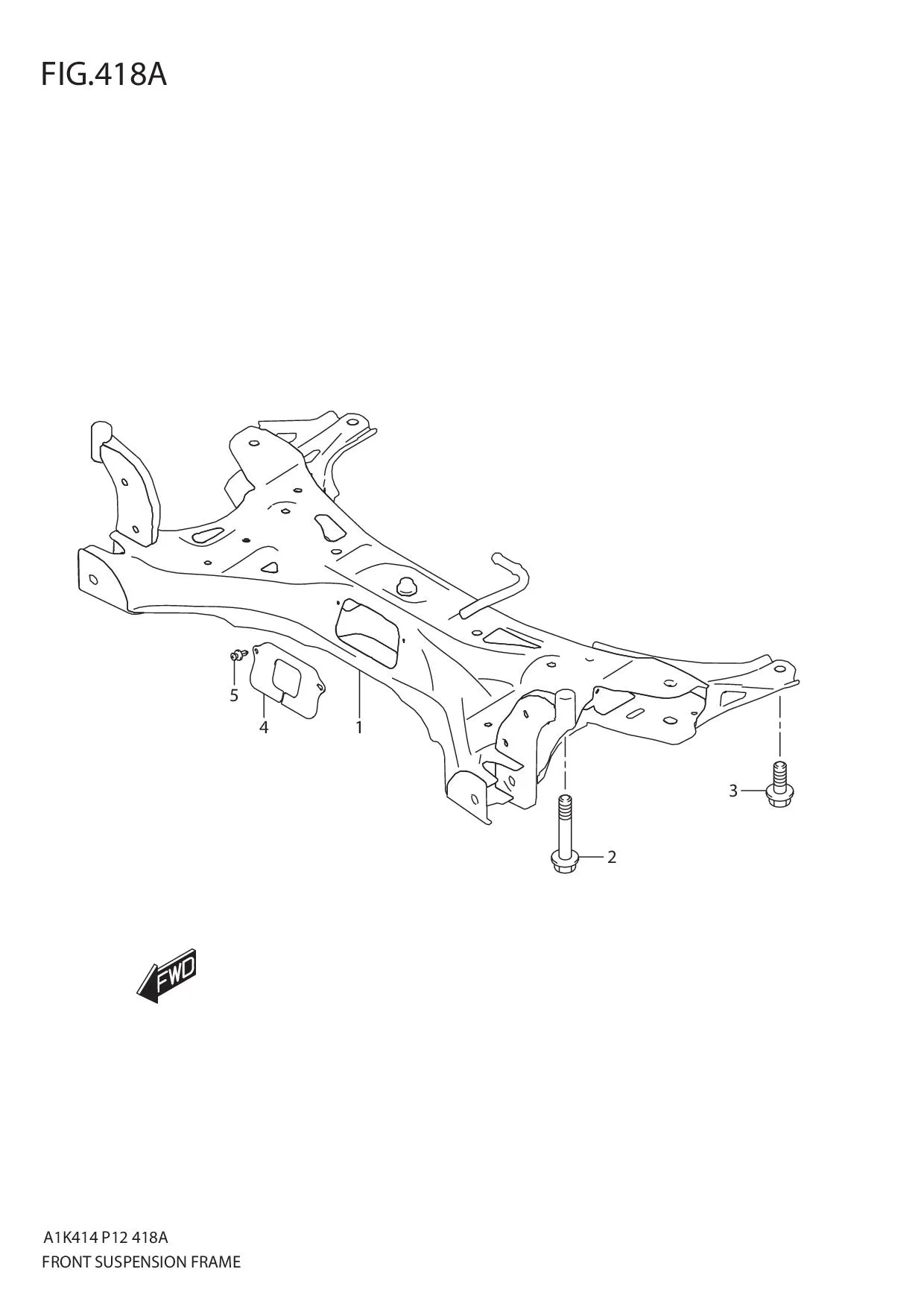

FIG.418A FRONT SUSPENSION FRAME

FIG.418A FRONT SUSPENSION FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 45810M68P01-000
SUB: 45810M68P00-000		 FRAME, FRONT SUSPENSION 1 Rp2.826.000
2 45861M68P10-000 BOLT, SPNSN ARM FR BUSHING 2 Rp70.000
3 09103-10216-000 BOLT (10X20) 2 Rp31.000
4 45851M68P00-000 COVER, TORQUE ROD 1 Rp13.000
5 09409-06322-5PK
SUB: 09409-06322-000		 CLIP 2 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
