BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFT (5MT)FIG.410B FRONT DRIVE SHAFT (4AT)FIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKET (5MT)FIG.490B PEDAL/PEDAL BRACKET (4AT)FIG.500A BRAKE MASTER CYLINDER (5MT)FIG.500B BRAKE MASTER CYLINDER (4AT)FIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

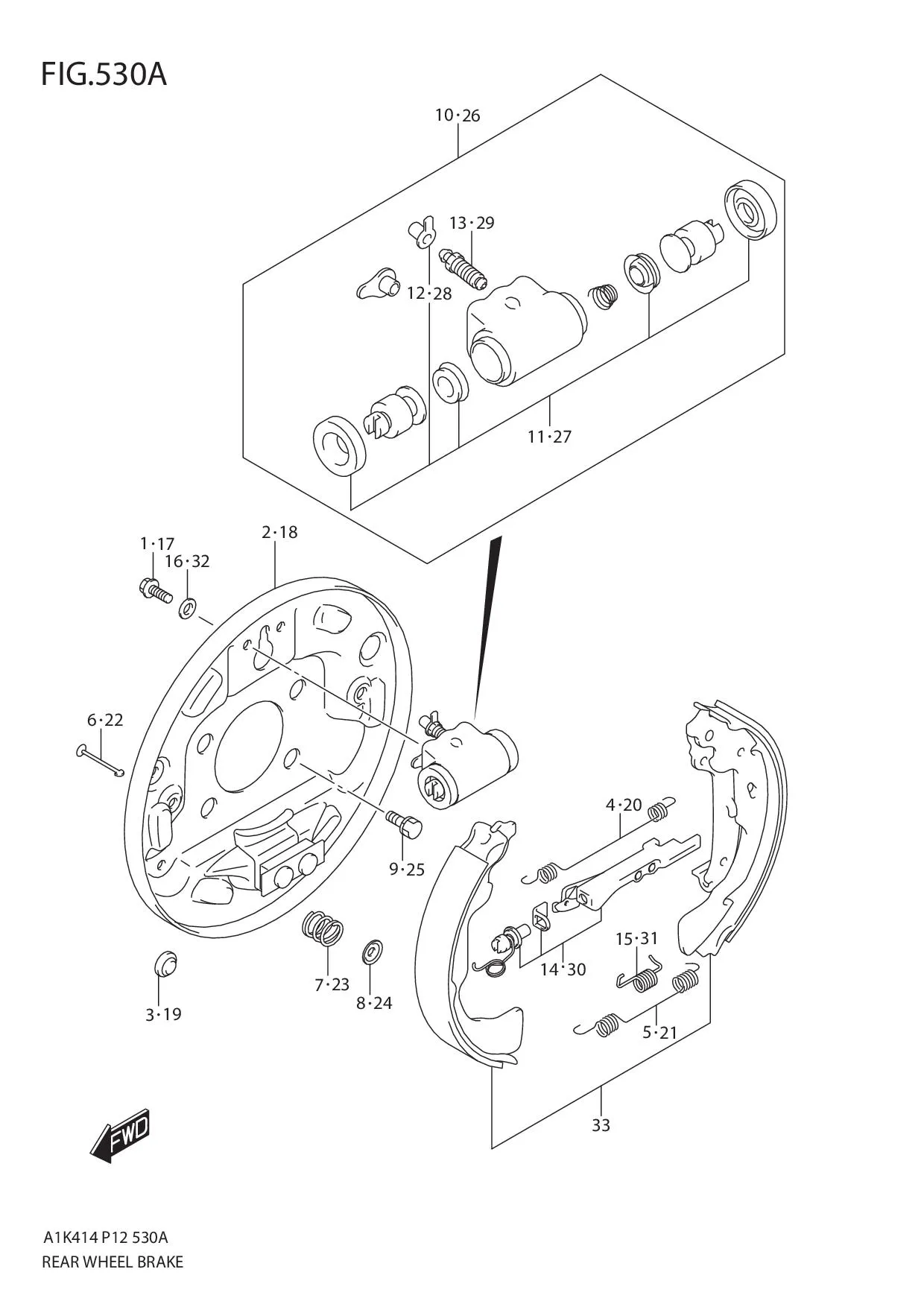

FIG.530A REAR WHEEL BRAKE

FIG.530A REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 52476M68K00-000 BOLT, WHEEL CYLINDER 2 Rp10.500
2 53101M68P50-000 PLATE, RR BRAKE RH 1 Rp398.500
3 53141M79F10-000 PLUG, BACKING PLATE 1 Rp5.500
4 53231M76M00-000 SPRING, SHOE RETURN 1 Rp16.500
5 53232M76M00-000 SPRING, SHOE RETURN LWR 1 Rp10.500
6 53241M68P50-000 PIN 2 Rp10.500
7 53243M75J00-000 SPRING, HOLD DOWN 2 Rp10.000
8 53244M79GC0-000 CUP 2 Rp9.500
9 53247M75J00-000 SCREW 1 Rp11.500
10 53402M75J01-000 CYLINDER ASSY, RR WHEEL 1 Rp219.500
11 53400M75J00-000 •CUP SET, RR WHEEL CYLINDER 1 Rp53.000
12 55156M68K00-000 ••CAP, BLEEDER PLUG 1 Rp5.500
13 55473M68P50-000 •PLUG, BLEEDER 1 Rp5.500
14 53701M68P50-000 STRUT ASSY RH 1 Rp308.000
15 53714M75J00-000 SPRING, STRUT RETAINING RH 1 Rp18.500
16 DISCONTINUE
SUB: 08321-0106A-000		 LOCK WASHER 2 -
17 52476M68K00-000 BOLT, WHEEL CYLINDER 2 Rp10.500
18 53102M68P50-000 PLATE, RR BRAKE LH 1 Rp398.500
19 53141M79F10-000 PLUG, BACKING PLATE 1 Rp5.500
20 53231M76M00-000 SPRING, SHOE RETURN 1 Rp16.500
21 53232M76M00-000 SPRING, SHOE RETURN LWR 1 Rp10.500
22 53241M68P50-000 PIN 2 Rp10.500
23 53243M75J00-000 SPRING, HOLD DOWN 2 Rp10.000
24 53244M79GC0-000 CUP 2 Rp9.500
25 53247M75J00-000 SCREW 1 Rp11.500
26 53402M75J01-000 CYLINDER ASSY, RR WHEEL 1 Rp219.500
27 53400M75J00-000 •CUP SET, RR WHEEL CYLINDER 1 Rp53.000
28 55156M68K00-000 ••CAP, BLEEDER PLUG 1 Rp5.500
29 55473M68P50-000 •PLUG, BLEEDER 1 Rp5.500
30 53702M68P50-000 STRUT ASSY LH 1 Rp308.000
31 53715M75J00-000 SPRING, STRUT RETAINING LH 1 Rp18.500
32 DISCONTINUE
SUB: 08321-0106A-000		 LOCK WASHER 2 -
33 53200M68P50-000 SHOE SET 1 Rp760.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
