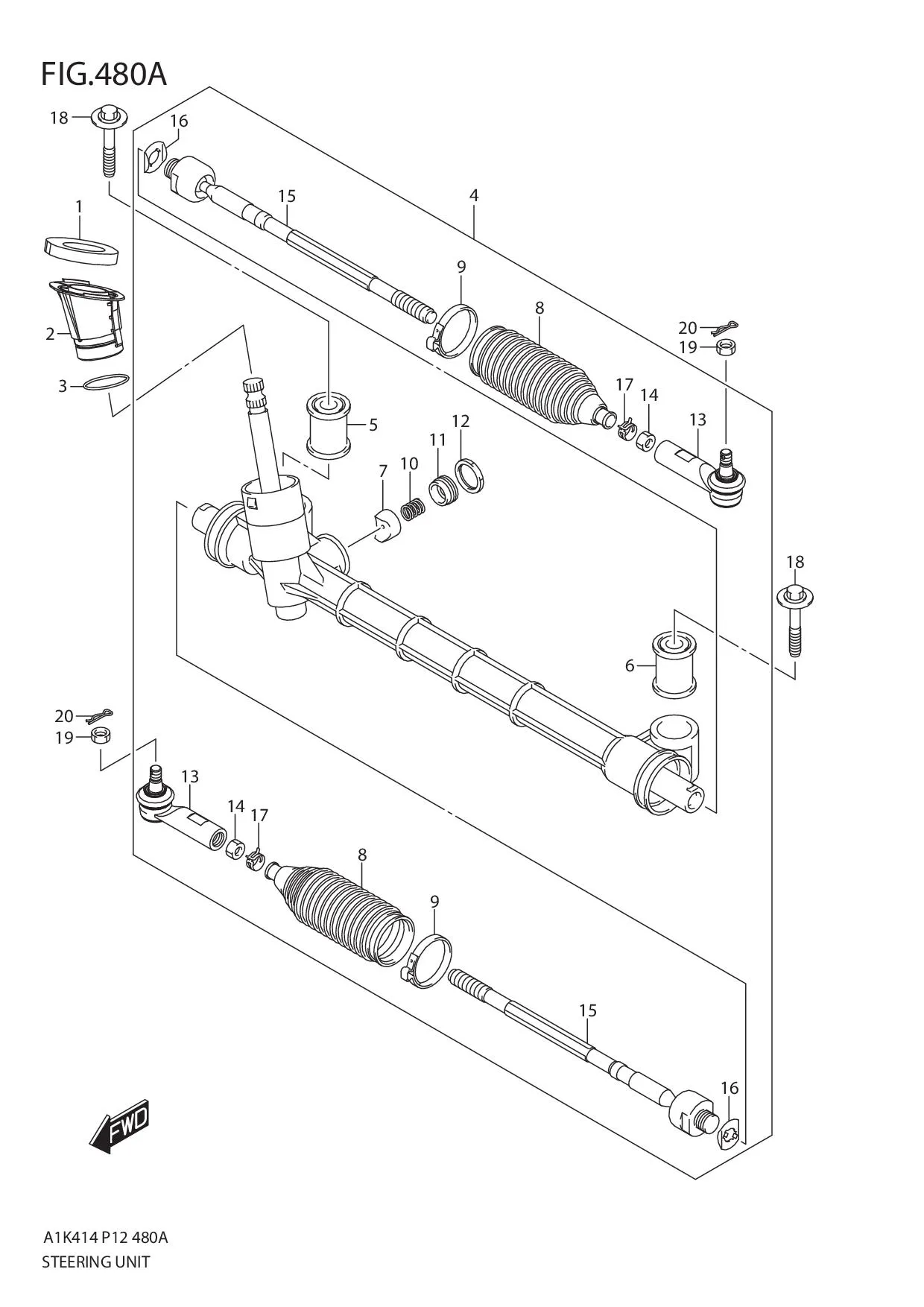

Suspension - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs
1	48451M68P00-000	PACKING, STRG GEAR	1	Rp47.500
2	48452M68P00-000	COVER, STRG GEAR	1	Rp24.000
3	09280-46002-000	O RING (D:2.4,ID:45.7)	1	Rp72.500
4	48500M68P04-000 SUB: 48500M68P02-000	BOX ASSY, STRG GEAR	1	Rp3.865.500
5	48525M68P00-000	•MOUNT, STRG PINION SIDE	1	Rp66.000
6	48525M68P50-000	•MOUNT, STRG RACK SIDE	1	Rp96.000
7	48534M68P00-000	•PLUNGER, STRG RACK	1	Rp154.500
8	48571M68P00-000	•BOOT, STRG	2	Rp71.000
9	48575M68P00-000	•STRAP, BOOT	2	Rp17.500
10	48591M74L10-000	•SPRING	1	Rp20.500
11	48592M68P00-000	•YOKE COVER	1	Rp35.500
12	48593M74L10-000	•LOCK NUT	1	Rp18.500
13	48810M68P00-000	•END, STRG TIE ROD	2	Rp107.500
14	48817M74L10-000	•NUT, STRG TIE ROD LOCK	2	Rp5.500
15	48830M68P00-000	•TIE ROD, STRG	2	Rp178.500
16	48841M79M00-000 SUB: 48841M74L10-000	•LOCK WASHER	2	Rp6.500
17	48871M74L10-000	•CLIP	2	Rp11.500
18	09116-12010-000	BOLT (12X77)	2	Rp60.000
19	09140-12039-000 SUB: 09140B12039N000	NUT	2	Rp6.500
20	09385-12002-000 SUB: 09385B12002N000	SNAP PIN	2	Rp4.500
