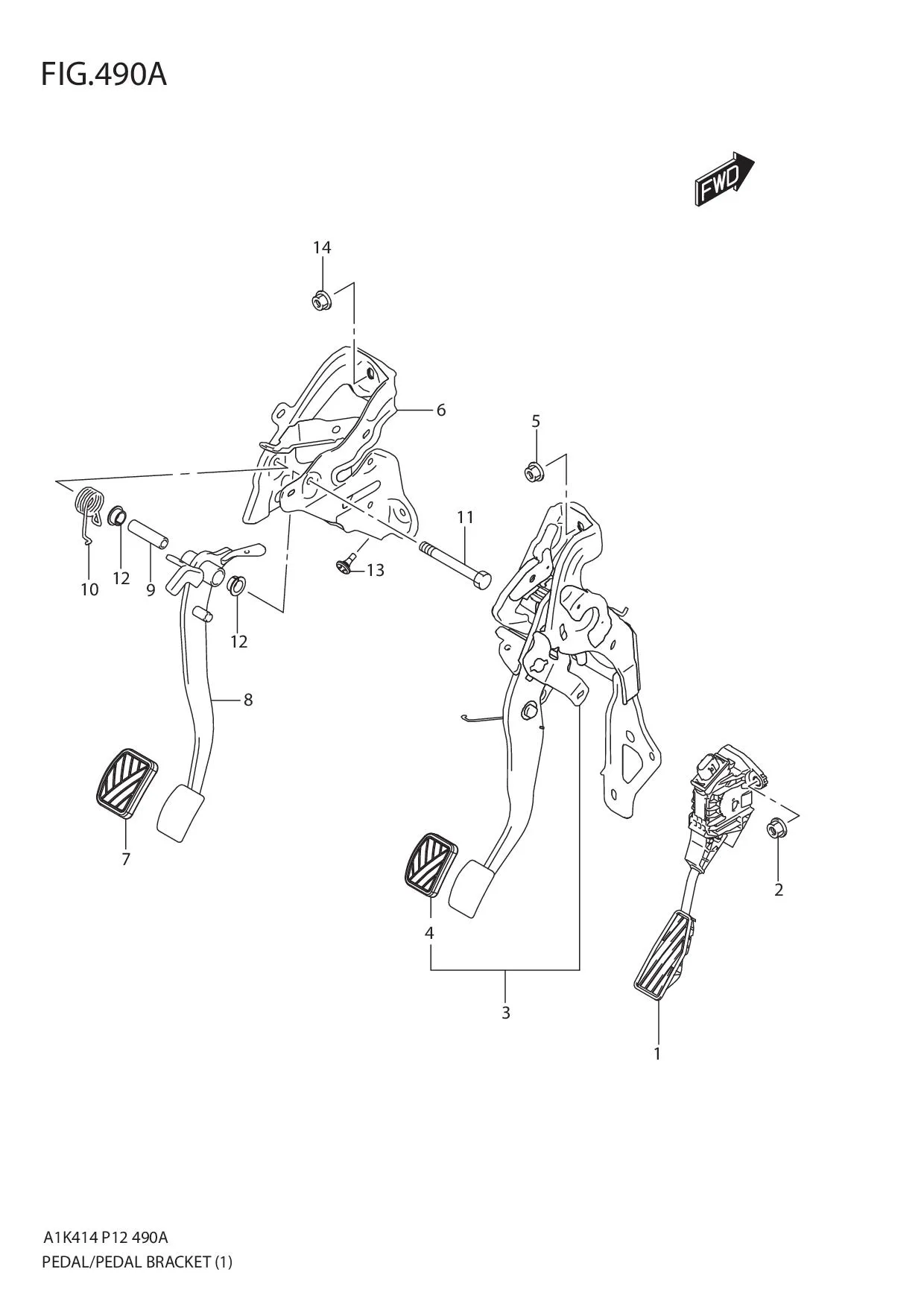

FIG.490A PEDAL/PEDAL BRACKET (5MT)

FIG.490A PEDAL/PEDAL BRACKET (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 49400M68P00-000 PEDAL ASSY, ACCELERATOR 1 Rp784.000
2 09159-08127-000
SUB: 09159M08153-000		 NUT 2 Rp11.000
3 49600M68P00-000 PEDAL ASSY, BRAKE 1 Rp544.000
4 49751M58J00-000 •PAD, PEDAL 1 Rp9.500
5 09159-08127-000
SUB: 09159M08153-000		 NUT 1 Rp11.000
6 49720M68P00-000 BRACKET, CLUTCH PEDAL 1 Rp181.000
7 49751M58J00-000 PAD, PEDAL 1 Rp9.500
8 49810M68P00-000 PEDAL, CLUTCH 1 Rp123.500
9 49871M80F00-000 SPACER, PEDAL SHAFT 1 Rp8.500
10 49891M68P00-000 SPRING, CLUTCH PEDAL 1 Rp9.500
11 DISCONTINUE
SUB: 09100-10304-000		 BOLT (10X65) 1 -
12 09306M13004-000
SUB: 09307M13005-000		 BUSH (13X21X8) 2 Rp11.500
13 09321M06026-000 CUSHION 1 Rp4.500
14 09159-08127-000
SUB: 09159M08153-000		 NUT 3 Rp11.000
15 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
