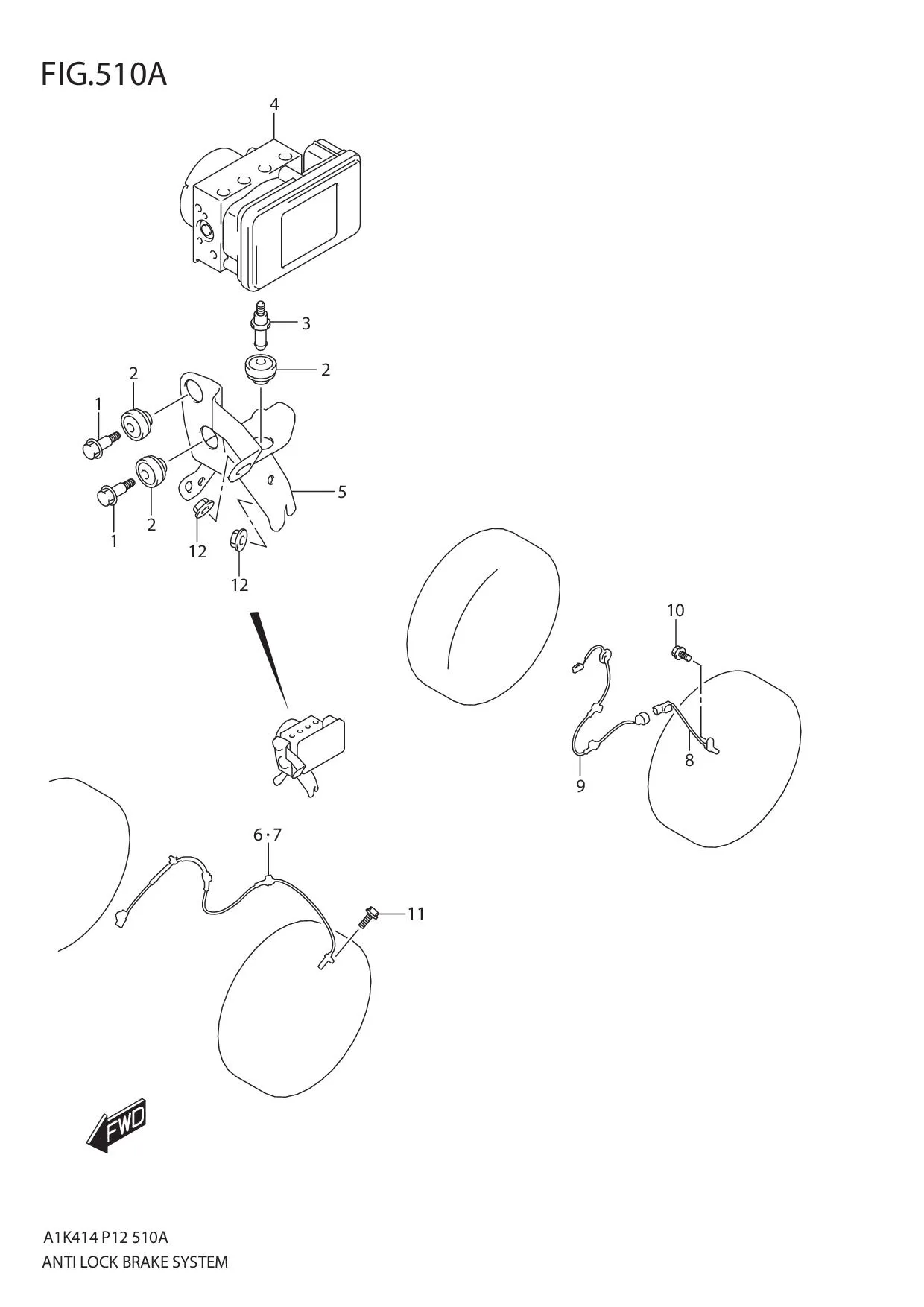

FIG.510A ANTI LOCK BRAKE SYSTEM

FIG.510A ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 56111-75F00-000 BOLT, ACTUATOR MOUNT 2 Rp42.500
2 56112-75F00-000 DAMPER, ACTUATOR MOUNT 3 Rp40.000
3 DISCONTINUE
SUB: 56113-59J00-000		 BOLT, ACTUATOR LWR MOUNT 1 -
4 56130M68P03-000
SUB: 56130M68P01-000		 ACTUATOR ASSY, ABS 1 Rp10.887.500
5 56161M68P00-000 BRACKET, ABS ACTUATOR 1 Rp54.500
6 56210M68P01-000
SUB: 56210M68P00-000		 SENSOR, FR WHEEL RH 1 Rp324.000
7 56220M68P01-000
SUB: 56220M68P00-000		 SENSOR, FR WHEEL LH 1 Rp316.500
8 56310M68P01-000
SUB: 56310M68P00-000		 SENSOR, RR WHEEL 2 Rp301.500
9 56315M68P00-000 HARNESS, RR WHEEL SENSOR 2 Rp227.500
10 01550M0612A-000 BOLT 2 Rp5.000
11 02162-0616A-000 SCREW 2 Rp3.000
12 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
