BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFT (5MT)FIG.410B FRONT DRIVE SHAFT (4AT)FIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKET (5MT)FIG.490B PEDAL/PEDAL BRACKET (4AT)FIG.500A BRAKE MASTER CYLINDER (5MT)FIG.500B BRAKE MASTER CYLINDER (4AT)FIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

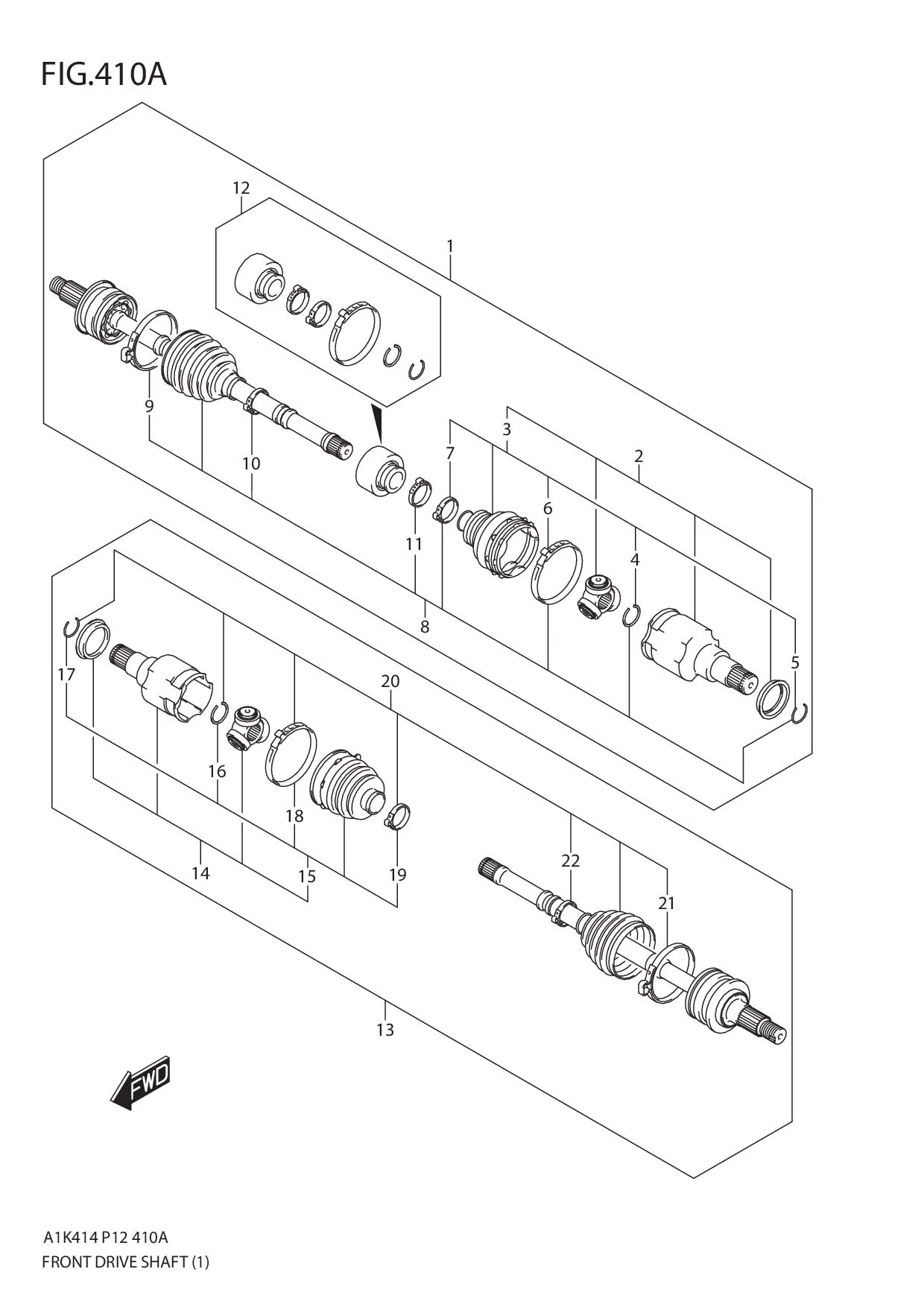

FIG.410A FRONT DRIVE SHAFT (5MT)

FIG.410A FRONT DRIVE SHAFT (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 44101M68P00-000 SHAFT ASSY, FRONT DRIVE RH 1 Rp3.288.000
2 44117M68P01-000
SUB: 44117M68P00-000		 •JOINT ASSY, DIFF SIDE 1 Rp923.500
3 44120M68P01-000
SUB: 44120M68P00-000		 ••BOOT SET, DIFF SIDE 1 Rp433.500
4 27183M83K00-000 •••CIRCLIP 1 Rp25.500
5 44111M83K00-000 •••CIRCLIP 1 Rp23.000
6 44121M68P00-000 •••CLAMP, BOOT BIG 1 Rp38.000
7 44123M68P00-000 •••CLAMP, BOOT SMALL 1 Rp22.500
8 44118M68P01-000
SUB: 44118M68P00-000		 •BOOT SET, WHEEL SIDE 1 Rp281.000
9 44122M75J00-000 ••CLAMP, BOOT BIG 1 Rp21.500
10 44124M79M00-000 ••CLAMP, BOOT SMALL 1 Rp24.000
11 44411M79M00-000 ••CLAMP, DAMPER 1 Rp13.000
12 44410M68P01-000
SUB: 44410M68P00-000		 •DAMPER SET 1 Rp279.500
13 44102M68P00-000 SHAFT ASSY, FRONT DRIVE LH 1 Rp3.288.000
14 44117M68P01-000
SUB: 44117M68P00-000		 •JOINT ASSY, DIFF SIDE 1 Rp923.500
15 44120M68P01-000
SUB: 44120M68P00-000		 ••BOOT SET, DIFF SIDE 1 Rp433.500
16 27183M83K00-000 •••CIRCLIP 1 Rp25.500
17 44111M83K00-000 •••CIRCLIP 1 Rp23.000
18 44121M68P00-000 •••CLAMP, BOOT BIG 1 Rp38.000
19 44123M68P00-000 •••CLAMP, BOOT SMALL 1 Rp22.500
20 44125M68P01-000
SUB: 44125M68P00-000		 •BOOT SET, WHEEL SIDE 1 Rp499.000
21 44122M75J00-000 ••CLAMP, BOOT BIG 1 Rp21.500
22 44124M79M00-000 ••CLAMP, BOOT SMALL 1 Rp24.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
