BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFT (5MT)FIG.410B FRONT DRIVE SHAFT (4AT)FIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKET (5MT)FIG.490B PEDAL/PEDAL BRACKET (4AT)FIG.500A BRAKE MASTER CYLINDER (5MT)FIG.500B BRAKE MASTER CYLINDER (4AT)FIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

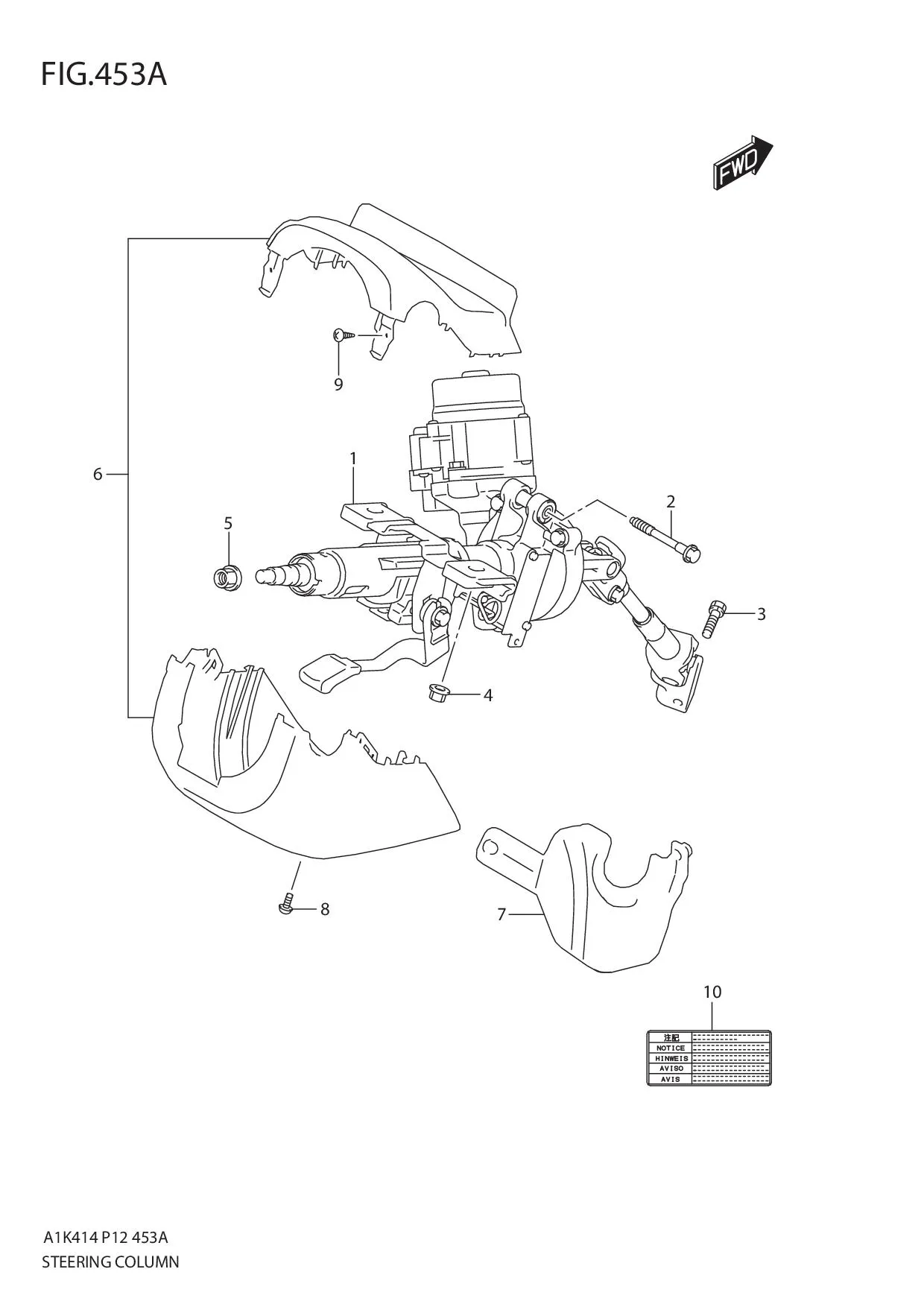

FIG.453A STEERING COLUMN

FIG.453A STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48200M68P41-000 COLUMN ASSY, COLPS STEERING 1 Rp24.604.000
2 48215-76M00-000 BOLT, STRG COLUMN LWR 1 Rp37.500
3 09117M08111-000 BOLT (8X30) 1 Rp8.500
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
5 09159-12001-000 NUT 1 Rp90.500
6 48400M68P30-5PK COVER ASSY, STEERING COLUMN (BLACK) 1 Rp135.500
7 48481M68P00-000 COVER, STEERING JOINT 1 Rp24.000
8 09136M05030-000 SCREW (5X12) 1 Rp4.500
9 03241M0512A-000 SCREW 2 Rp4.000
10 DISCONTINUE
SUB: 79172-80G02-000		 LABEL, STRG JOINT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
