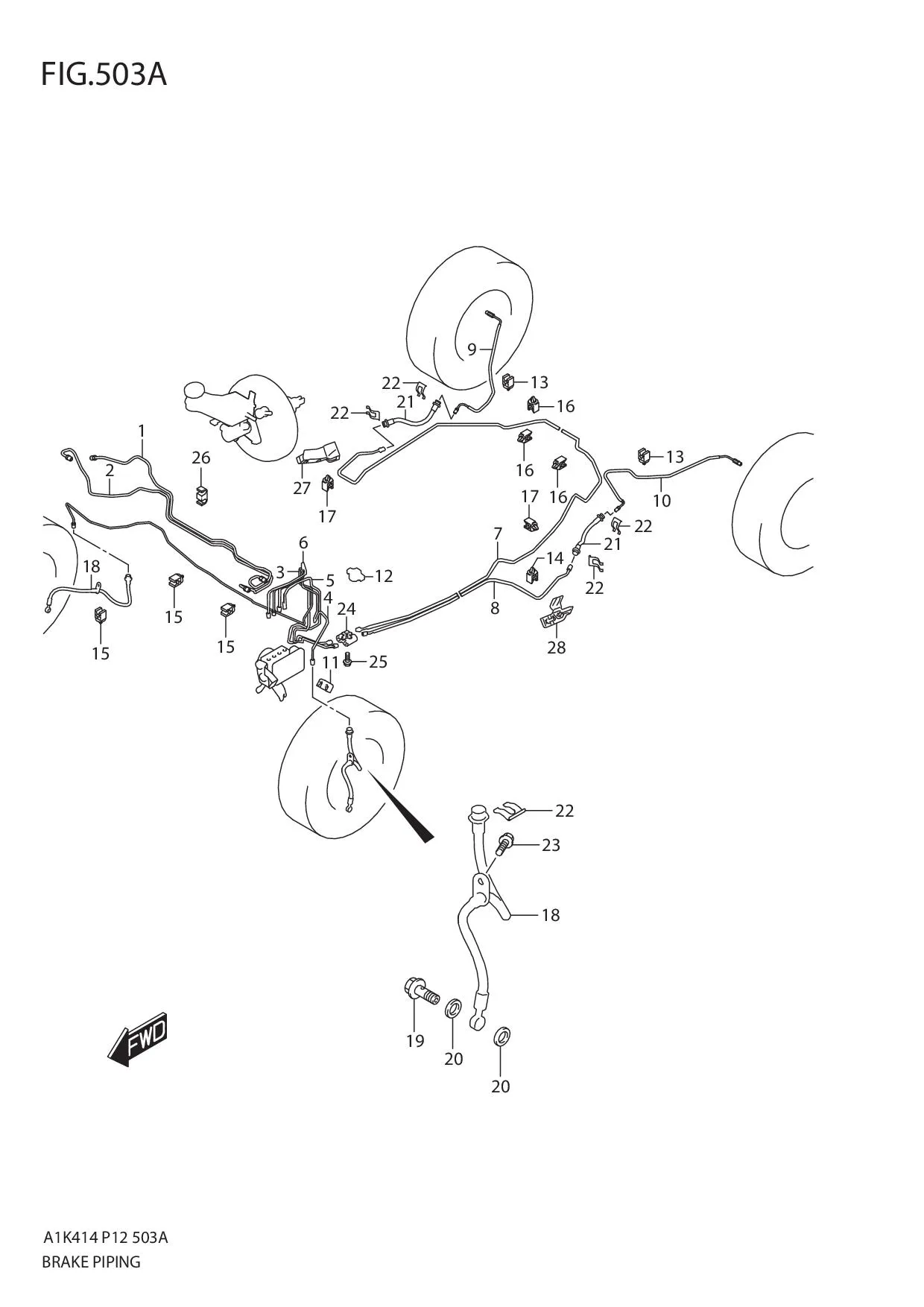

FIG.503A BRAKE PIPING

FIG.503A BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51410M68P10-000 PIPE, MA PRI TO HU 1 Rp59.500
2 51420M68P10-000 PIPE, MA SEC TO HU 1 Rp71.000
3 51430M68P00-000 PIPE, HU TO FR BK HOSE RH 1 Rp84.000
4 51440M68P00-000 PIPE, HU TO FR BK HOSE LH 1 Rp46.000
5 51450M68P51-000 PIPE, HU TO JOINT RH 1 Rp59.000
6 51460M68P01-000 PIPE, HU TO JOINT LH 1 Rp59.000
7 51470M68P50-000 PIPE, JOINT TO RR BK HOSE RH 1 Rp230.500
8 51480M68P00-000 PIPE, JOINT TO RR BK HOSE LH 1 Rp122.000
9 51510M68P50-000 PIPE, RR BK HOSE TO RR W/C RH 1 Rp59.000
10 51520M68P50-000 PIPE, RR BK HOSE TO RR W/C LH 1 Rp57.000
11 51751M55K00-000 CLAMP, BK PIPE DASH 1 1 Rp18.000
12 51751M68P00-000 CLAMP, BK PIPE 4 1 Rp46.000
13 51761M60M20-000 CLAMP, PIPE 2 Rp5.500
14 51761M60M20-000 CLAMP, PIPE 1 Rp5.500
15 51761M60M00-000 CLAMP, PIPE 3 Rp5.500
16 51761M60M20-000 CLAMP, PIPE 3 Rp5.500
17 51761M60M20-000 CLAMP, PIPE 2 Rp5.500
18 DISCONTINUE
SUB: 51550M68P00-000		 HOSE, FR BRAKE FLEXIBLE 2 -
19 51561M55K00-000 BOLT, FR DISC FLEXIBLE HOSE 2 Rp8.500
20 51562M55K00-000 WASHER, FR DISC FLEXIBLE HOSE 4 Rp8.500
21 51570M68P00-000 HOSE, RR BRAKE FLEXIBLE 2 Rp113.500
22 09383M13005-000 E RING 6 Rp7.000
23 01551-0816C-000 BOLT 2 Rp13.500
24 51630M70F00-000 JOINT, 4WAY BRAKE 1 Rp122.000
25 02162M0625E-000 SCREW 1 Rp7.500
26 51751M55K00-000 CLAMP, BK PIPE DASH 1 3 Rp18.000
27 51711M68P00-000 COVER, BRAKE PIPE RH 1 Rp32.000
28 51712M68P00-000 COVER, BRAKE PIPE LH 1 Rp32.000
29 51753-52R00-000 CLAMP, BRAKE CLUTCH PIPE 1 - 5MT FROM 2017-4

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
