BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFT (5MT)FIG.410B FRONT DRIVE SHAFT (4AT)FIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKET (5MT)FIG.490B PEDAL/PEDAL BRACKET (4AT)FIG.500A BRAKE MASTER CYLINDER (5MT)FIG.500B BRAKE MASTER CYLINDER (4AT)FIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

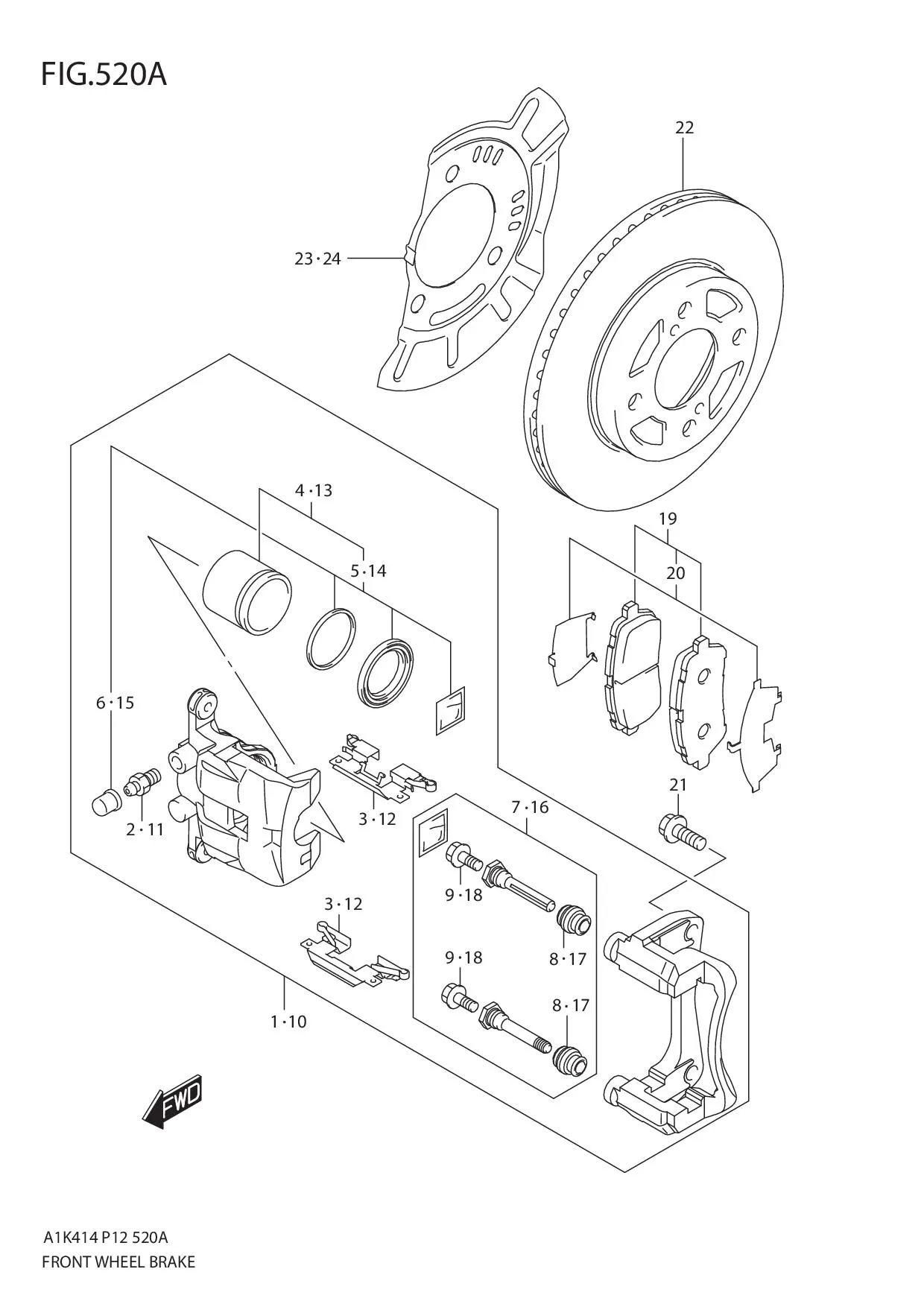

FIG.520A FRONT WHEEL BRAKE

FIG.520A FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101M69P00-000 CALIPER ASSY, FR BRAKE RH 1 Rp2.312.500
2 55151M55K00-000 •PLUG, BLEEDER 1 Rp11.500
3 55234M69P00-000 •CLIP 2 Rp83.000
4 55830M69P01-000
SUB: 55830M69P00-000		 •PISTON/SEAL SET 1 Rp115.000
5 55840M69P01-000
SUB: 55840M69P00-000		 ••SEAL SET 1 Rp45.500
6 55156M66310-000 •••CAP, BLEEDER PLUG 1 Rp23.500
7 55850M60M00-000 •PIN SET, SLIDING 1 Rp247.000
8 55201M60M00-000 ••BOOT, PIN 2 Rp23.000
9 55206M76G00-000 ••BOLT, PIN 2 Rp21.000
10 55102M69P00-000 CALIPER ASSY, FR BRAKE LH 1 Rp2.312.500
11 55151M55K00-000 •PLUG, BLEEDER 1 Rp11.500
12 55234M69P00-000 •CLIP 2 Rp83.000
13 55830M69P01-000
SUB: 55830M69P00-000		 •PISTON/SEAL SET 1 Rp115.000
14 55840M69P01-000
SUB: 55840M69P00-000		 ••SEAL SET 1 Rp45.500
15 55156M66310-000 •••CAP, BLEEDER PLUG 1 Rp23.500
16 55850M60M00-000 •PIN SET, SLIDING 1 Rp247.000
17 55201M60M00-000 ••BOOT, PIN 2 Rp23.000
18 55206M76G00-000 ••BOLT, PIN 2 Rp21.000
19 55810M69P00-000 PAD SET 1 Rp1.115.500
20 55820M69P00-000 •SHIM SET 1 Rp302.500
21 55164M74L00-000 BOLT, BRAKE CALIPER 4 Rp17.000
22 55311M69P10-000 DISC, FRONT BRAKE 2 Rp990.500
23 55321M68P00-000 COVER, BRAKE DISC DUST RH 1 Rp30.000
24 55322M68P00-000 COVER, BRAKE DISC DUST LH 1 Rp30.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
