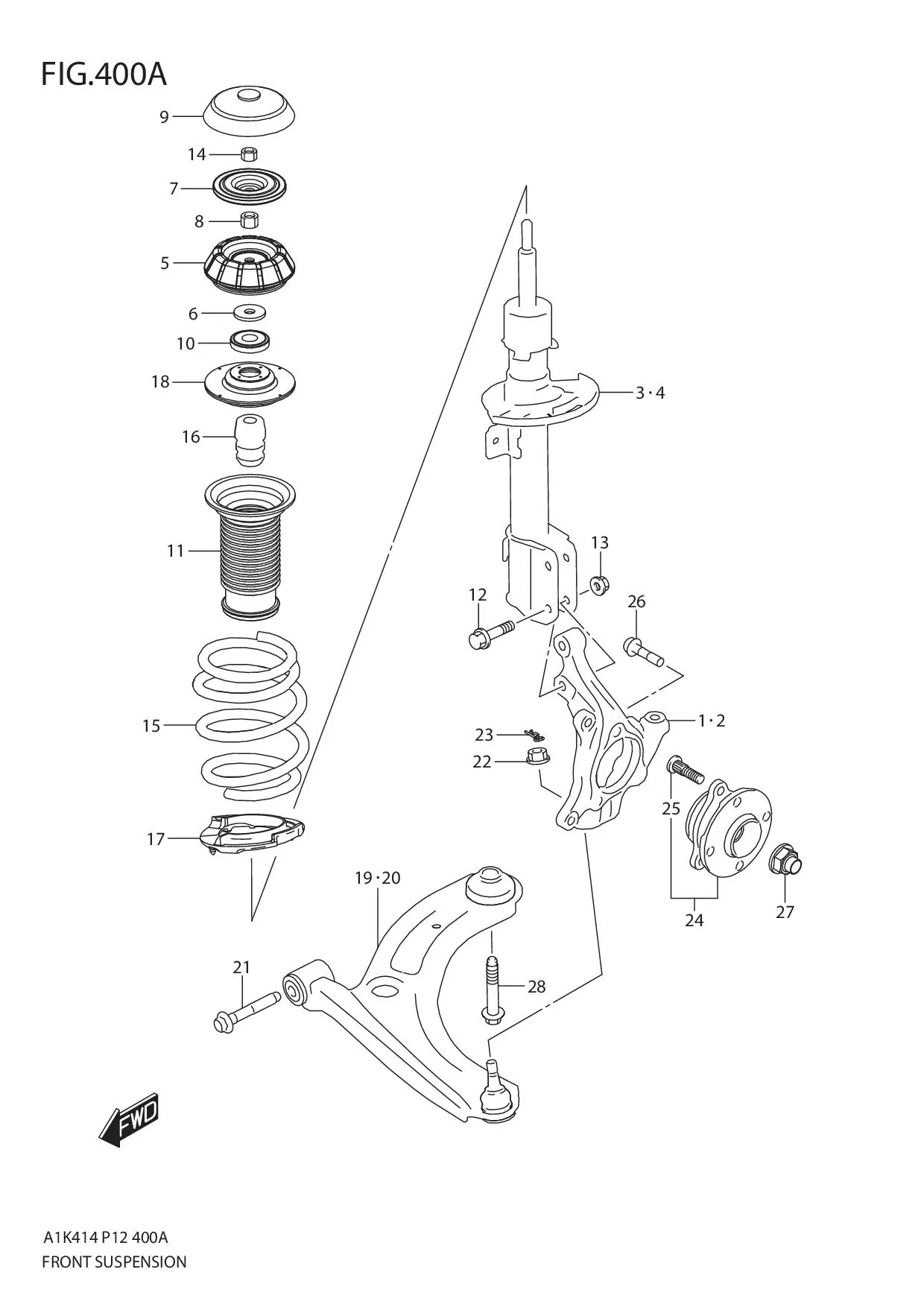

FIG.400A FRONT SUSPENSION

FIG.400A FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111M68P00-000 KNUCKLE, STEERING RH 1 Rp917.000
2 45151M68P00-000 KNUCKLE, STEERING LH 1 Rp917.000
3 41601M68P40-000 STRUT ASSY, FRONT SPNSN RH 1 Rp1.144.000
4 41602M68P40-000 STRUT ASSY, FRONT SPNSN LH 1 Rp1.144.000
5 41710M68P00-000 SUPPORT, FRONT STRUT 2 Rp226.500
6 41711M57K00-000 PLATE, STRUT BEARING 2 Rp10.500
7 41720M83K10-000 STOPPER, FRONT STRUT REBOUND 2 Rp62.500
8 41721M83K00-000 NUT, STRUT SUPPORT LWR 2 Rp10.000
9 41724M63J00-000 CAP, STRUT ROD 2 Rp34.500
10 41742M57K10-000 BEARING, FR STRUT 2 Rp81.000
11 41931M68P00-000 COVER, STRUT DUST 2 Rp42.000
12 09103-12118-000 BOLT (12X50) 4 Rp33.000
13 41616M76M00-000 NUT, STRUT BRACKET 4 Rp15.000
14 08310M0012A-000 NUT 2 Rp5.000
15 41111M68P40-000 SPRING, FRONT COIL 2 Rp394.500
16 42111M68P00-000 STOPPER, FRONT BUMP 2 Rp197.500
17 41212M79M00-000 SEAT, FR SPRING LWR 2 Rp146.500
18 41230M74L00-000 SEAT, FR SPRING UPR 2 Rp103.000
19 45201M68P01-000
SUB: 45201M68P00-000		 ARM ASSY, FRONT SUSPENSION RH 1 Rp581.000
20 45202M68P01-000
SUB: 45202M68P00-000		 ARM ASSY, FRONT SUSPENSION LH 1 Rp581.000
21 45861M68P10-000 BOLT, SPNSN ARM FR BUSHING 2 Rp70.000
22 09159-12069-000 NUT 2 Rp23.000
23 09385-12002-000
SUB: 09385B12002N000		 SNAP PIN 2 Rp4.500
24 43401M68P01-000
SUB: 43401M68P00-000		 HUB ASSY, FRONT WHEEL 2 Rp1.201.000
25 43423M79G00-000 •BOLT, HUB 8 Rp22.500
26 43458M68P00-000 BOLT, WHEEL HUB HOUSING 6 Rp25.000
27 09159-18024-000 NUT 2 Rp74.500
28 45861M68P10-000 BOLT, SPNSN ARM FR BUSHING 2 Rp70.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
