BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFT (5MT)FIG.410B FRONT DRIVE SHAFT (4AT)FIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKET (5MT)FIG.490B PEDAL/PEDAL BRACKET (4AT)FIG.500A BRAKE MASTER CYLINDER (5MT)FIG.500B BRAKE MASTER CYLINDER (4AT)FIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

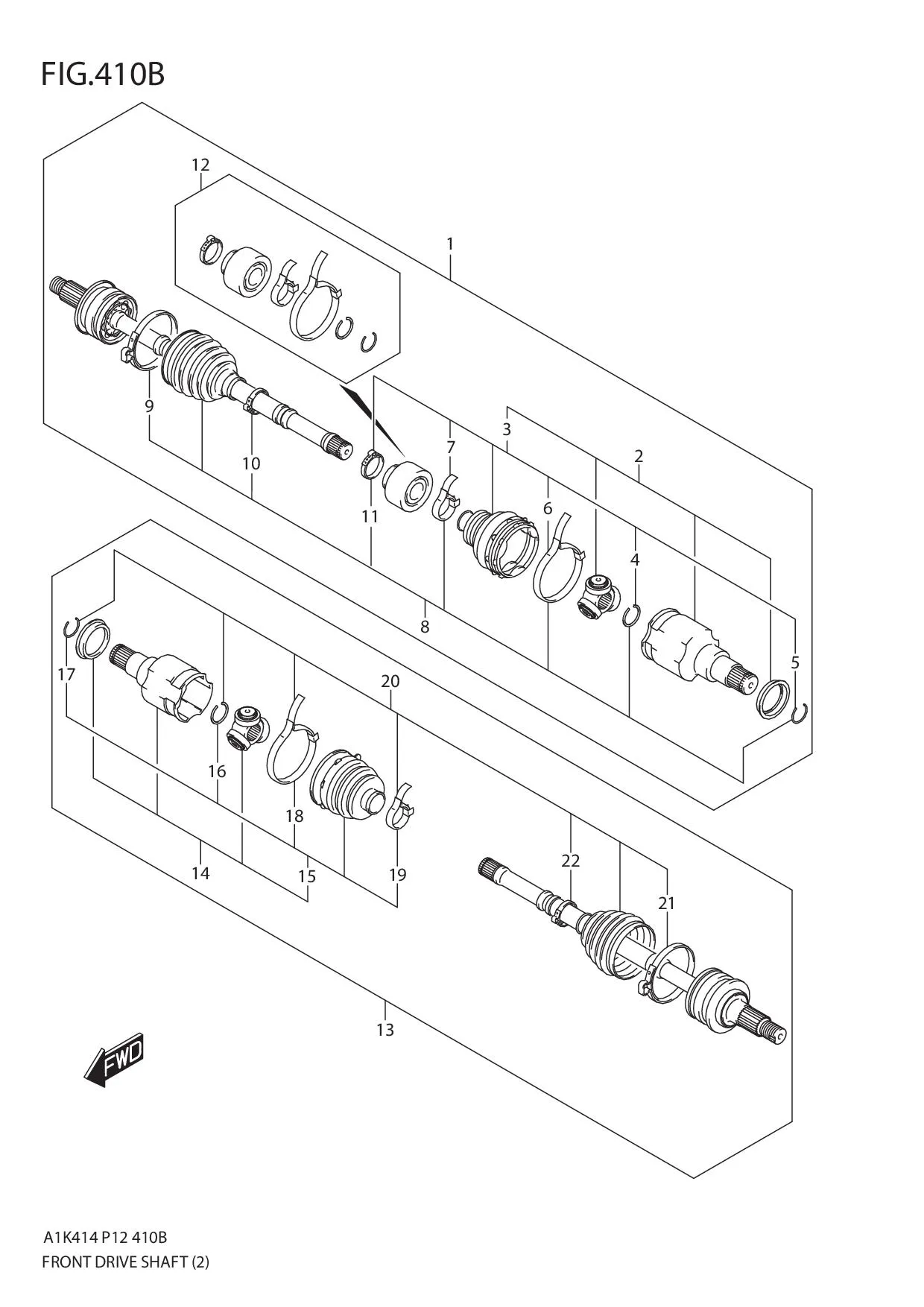

FIG.410B FRONT DRIVE SHAFT (4AT)

FIG.410B FRONT DRIVE SHAFT (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 44101M68P31-000
SUB: 44101M68P30-000		 SHAFT ASSY, FRONT DRIVE RH 1 Rp2.876.000
2 44117M68P30-000 •JOINT ASSY, DIFF SIDE 1 Rp1.680.000
3 44120M68P30-000 ••BOOT SET, DIFF SIDE 1 Rp558.500
4 27183M83K00-000 •••CIRCLIP 1 Rp25.500
5 44414M79M30-000 •••CIRCLIP 1 Rp12.500
6 44121M68P00-000 •••CLAMP, BOOT BIG 1 Rp38.000
7 44123M68P00-000 •••CLAMP, BOOT SMALL 1 Rp22.500
8 44118M68P30-000 •BOOT SET, WHEEL SIDE 1 Rp493.000
9 44122M75J00-000 ••CLAMP, BOOT BIG 1 Rp21.500
10 44124M79M00-000 ••CLAMP, BOOT SMALL 1 Rp24.000
11 44411M79M00-000 ••CLAMP, DAMPER 1 Rp13.000
12 44410M68P30-000 •DAMPER SET 1 Rp487.500
13 44102M68P30-000 SHAFT ASSY, FRONT DRIVE LH 1 Rp2.876.000
14 44117M68P30-000 •JOINT ASSY, DIFF SIDE 1 Rp1.680.000
15 44120M68P30-000 ••BOOT SET, DIFF SIDE 1 Rp558.500
16 27183M83K00-000 •••CIRCLIP 1 Rp25.500
17 44414M79M30-000 •••CIRCLIP 1 Rp12.500
18 44121M68P00-000 •••CLAMP, BOOT BIG 1 Rp38.000
19 44123M68P00-000 •••CLAMP, BOOT SMALL 1 Rp22.500
20 44125M68P30-000 •BOOT SET, WHEEL SIDE 1 Rp488.500
21 44122M75J00-000 ••CLAMP, BOOT BIG 1 Rp21.500
22 44124M79M00-000 ••CLAMP, BOOT SMALL 1 Rp24.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
