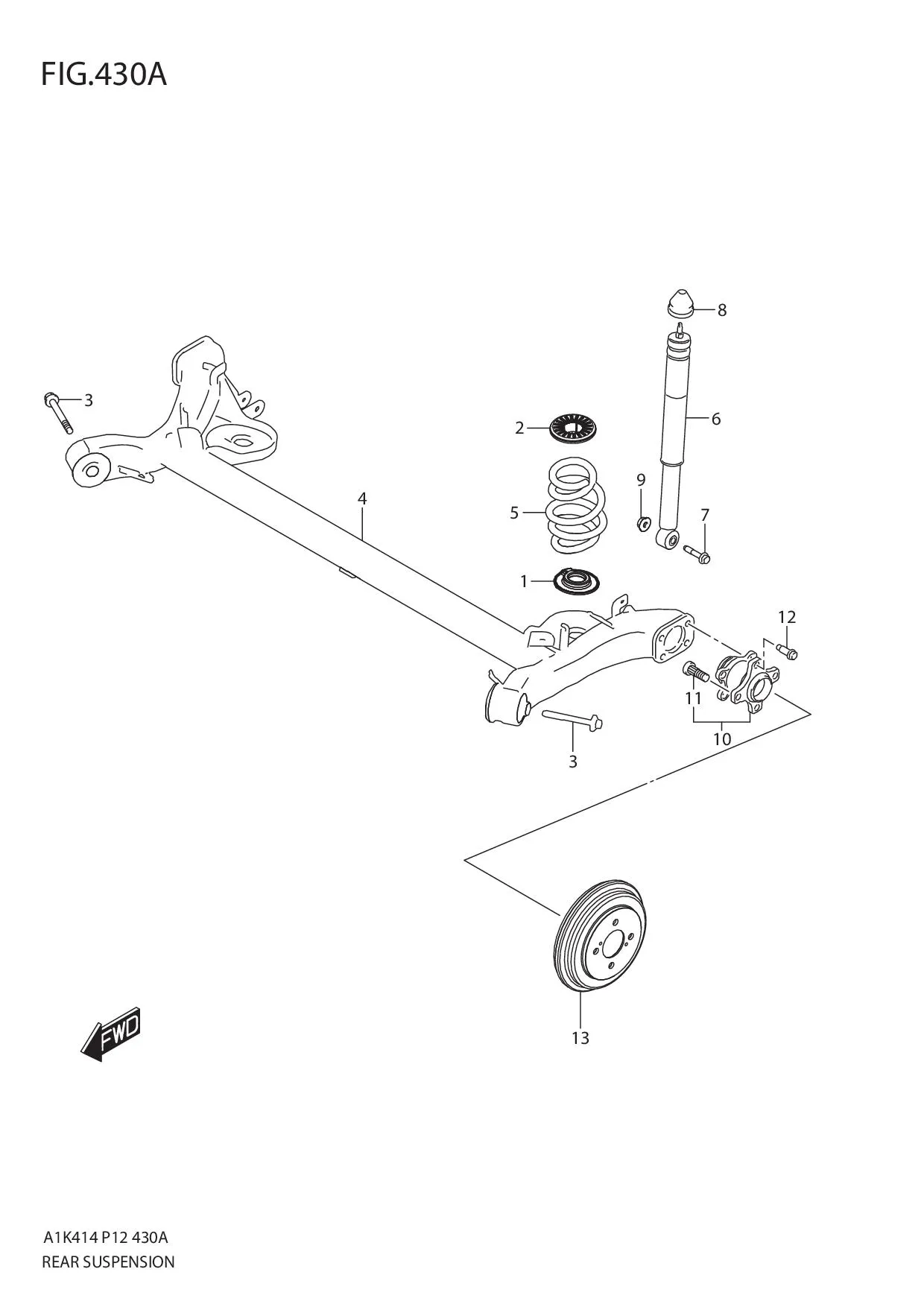

FIG.430A REAR SUSPENSION

FIG.430A REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 41312M68P00-000 SEAT, REAR SPRING LOWER 2 Rp11.500
2 41341M68P00-000 SEAT, REAR SPRING UPPER 2 Rp27.000
3 46223M72R00-000
SUB: 46223M68P00-000		 BOLT, RR TRAILING 2 Rp135.500
4 46500M68P10-000 BEAM ASSY, RR SPNSN 1 Rp6.039.000
5 41311M68P40-000 SPRING, REAR COIL 2 Rp367.500
6 41800M68P30-000 ABSORBER ASSY, REAR SHOCK 2 Rp1.024.000
7 41821M55R00-000 BOLT, RR SHK ABSOBER LWR 2 Rp33.000
8 41951M68P00-000 CAP, RR SHOCK ABSORBER 2 Rp24.000
9 41616M76M00-000 NUT, STRUT BRACKET 2 Rp15.000
10 43402M55R02-000
SUB: 43402M68P01-000		 HUB ASSY, RR WHEEL 2 Rp1.661.000
11 43423M62S00-000
SUB: 43423M79G00-000		 •BOLT, HUB 8 Rp19.000
12 43413M68P00-000 BOLT, REAR HUB MOUNTING 8 Rp17.500
13 43511M68P70-000
SUB: 43511M68P50-000		 DRUM, BRAKE REAR 2 Rp655.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
