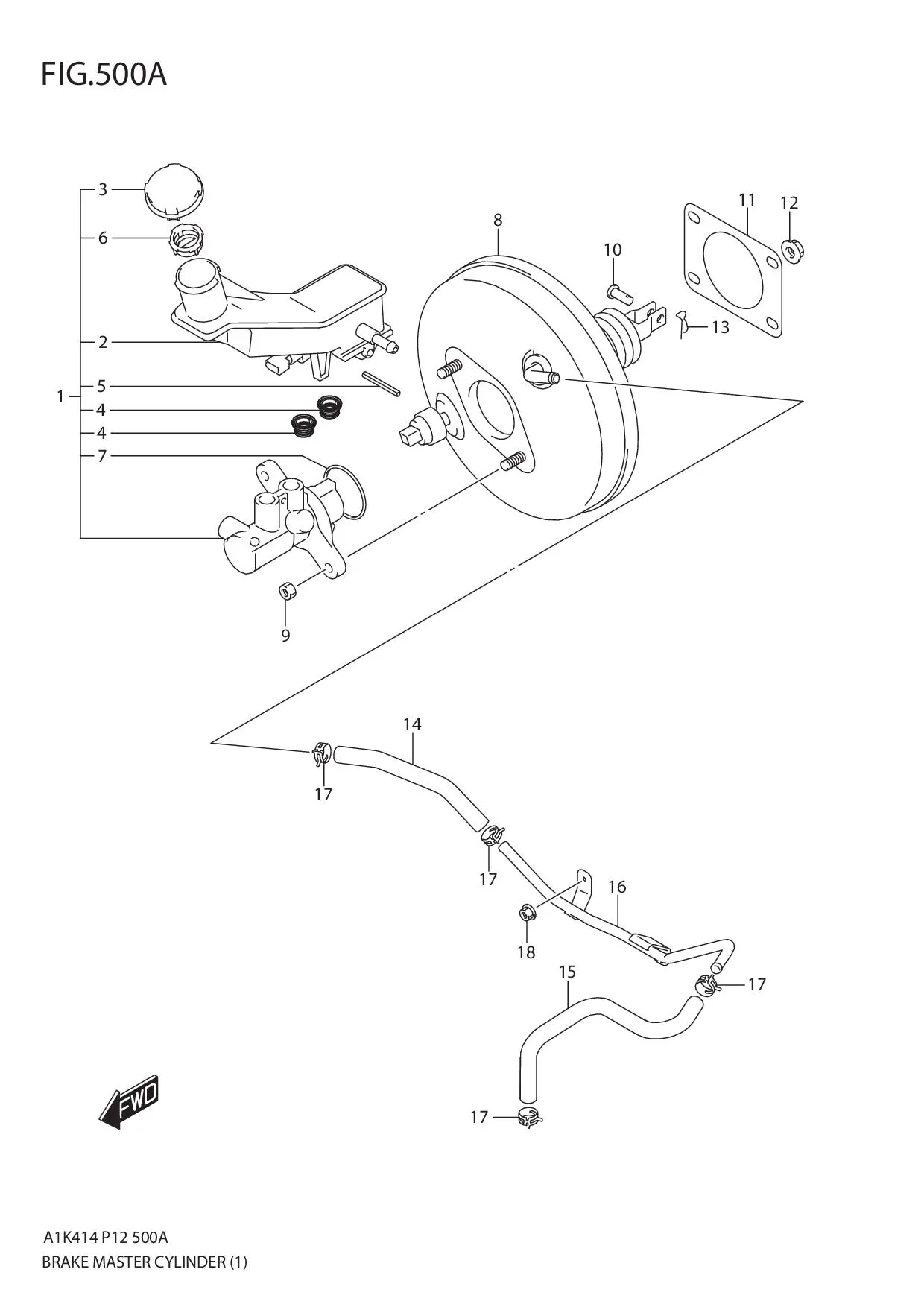

FIG.500A BRAKE MASTER CYLINDER (5MT)

FIG.500A BRAKE MASTER CYLINDER (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 51100M68PD1-000 CYLINDER ASSY, BRAKE MASTER 1 Rp2.133.500
2 51200M68P50-000 •RESERVOIR ASSY, MASTER CYLINDER 1 Rp427.500
3 51220M55R00-000 •CAP, RESERVOIR 1 Rp25.000
4 51232M74L00-000 •GROMMET, RSVR CONNECTOR 2 Rp37.500
5 51233M65J00-000 •PIN 1 Rp29.500
6 51240M67LA0-000 •FILTER 1 Rp51.500
7 51311M68K00-000 •O RING 1 Rp10.500
8 51300M50RT0-000 BOOSTER ASSY, BRAKE MASTER 1 Rp1.522.500
9 08361-1508A-000 NUT 2 Rp20.500
10 51120M60M00-000 PIN, BRAKE MASTER CYLINDER 1 Rp10.500
11 51132M79G10-000
SUB: 51132M79G00-000		 PACKING, BRAKE MASTER CYLINDER 1 Rp5.500
12 09159-08127-000
SUB: 09159M08153-000		 NUT 4 Rp11.000
13 09385M08L01-000 SNAP PIN 1 Rp9.000
14-1 51010M68P00-000 HOSE, VACUUM BSTR TO PIPE 1 Rp48.000
14-2 51811M68P00-000 HOSE, VACUUM BSTR TO PIPE 1 Rp40.000 FROM 2016-12
15 51020M68P00-000 HOSE, VACUUM PIPE TO INTK 1 Rp33.000
16 51870M68P00-000 PIPE, BRAKE VACUUM 1 Rp61.500
17 09401-15420-000 CLIP 4 Rp17.000
18 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
