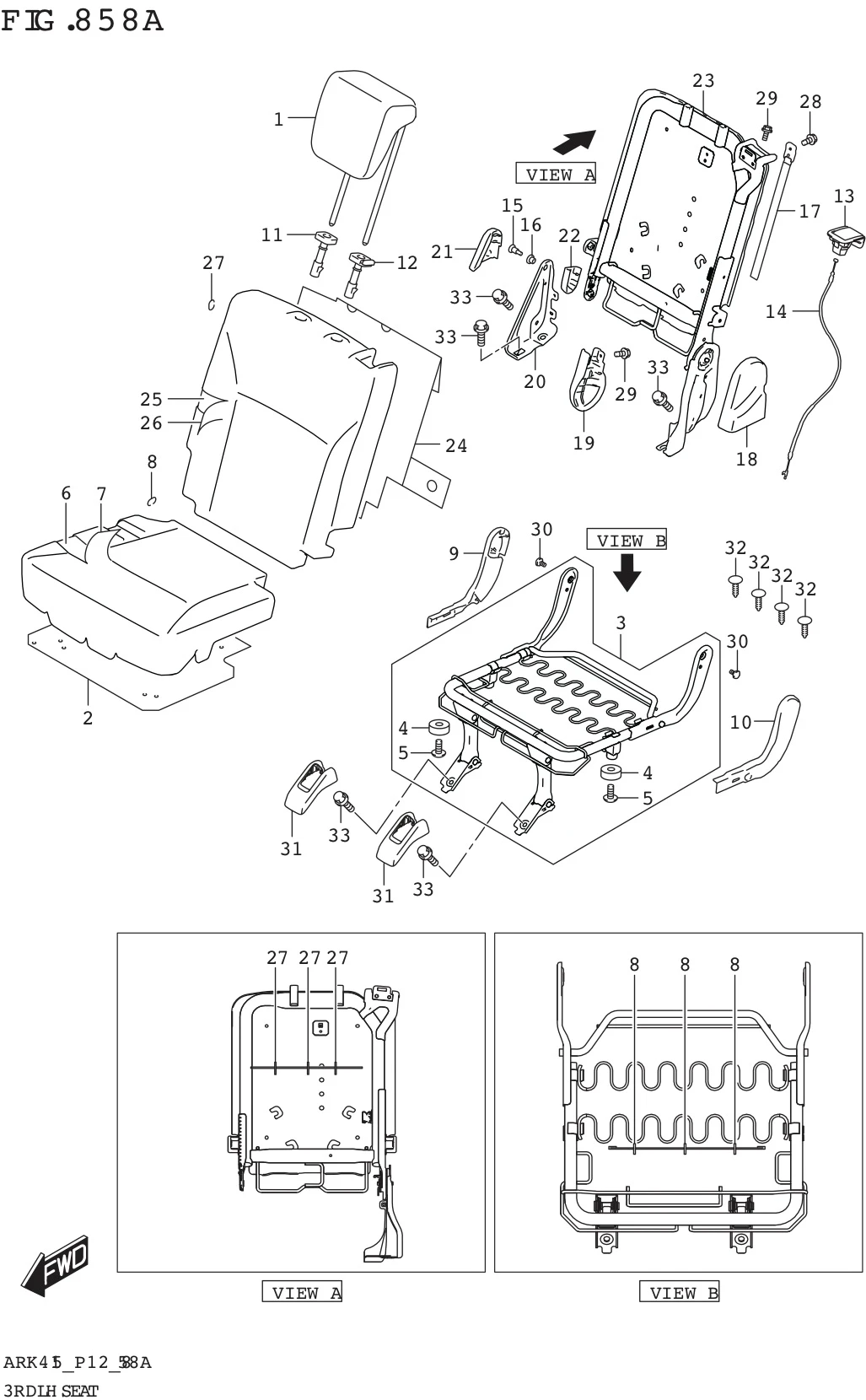

FIG. 858A 3RD LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	86401-73RA0-DJV	HEADRESTRAINT ASSY,3RD (BEIGE)	1	Rp773.500	GL,GX
1-1	86401-73RA0-WCV	HEADRESTRAINT ASSY,3RD (BEIGE)	1	Rp364.500	GA
2	87163-78F00-000	SUPPORT,RR CUSH	1	Rp7.000
3	88104-73RA0-000	FRAME ASSY,3RD CUSH,L	1	Rp596.500
4	87193-82K00-000	.CUSHION,RR LEG STOPPER	2	Rp12.500
5	03241-0512A-000 SUB: 03241B0512AN000	.SCREW	2	Rp3.500
6	88660-73RA0-000	PAD,3RD CUSH,L	1	Rp253.500
7-1	88680-73RA0-DGQ	TRIM,3RD CUSH,L (BEIGE/BROWN)	1	Rp551.500	GA
7-2	88680-73RA0-DJQ	TRIM,3RD CUSH,L (BEIGE/BROWN)	1	Rp452.500	GL,GX
8	09387-19001-000	RING (OD:22.6)	3	Rp9.000
9	88171-73RA0-V6N	COVER,3RD STAY,R (BEIGE)	1	Rp14.500
10	88172-73RA0-R8R	COVER,3RD STAY,L (BROWN)	1	Rp13.000
11	85341-58RA1-V6N	GUIDE, HEADRESTRAINT (BEIGE)	1	Rp10.500
12	85840-73R10-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp11.000
13	87290-70K00-V6N	KNOB,RCLNG RELEASE (BEIGE)	1	Rp99.000
14	88294-73RA0-000	CABLE,3RD RCLNG RELEASE	1	Rp46.000
15	88321-73RA0-000	BOLT,3RD BACK HINGE	1	Rp9.000
16	88322-73RA0-000	BUSH,3RD BACK HINGE	1	Rp6.500
17	88370-73RA0-R8R	BAND ASSY,3RD BACK (BROWN)	1	Rp8.000
18	88721-73RA0-R8R	COVER,3RD RCLNG LOWER,L (BROWN)	1	Rp11.000
19	88722-73RA0-R8R	COVER,3RD RCLNG UPR,L (BROWN)	1	Rp11.000
20	88731-73RB0-000	BRACKET,3RD BACK HINGE,L	1	Rp170.500
21	88741-73RA0-V6N	COVER,3RD HINGE LOWER,L (BEIGE)	1	Rp10.000
22	88742-73RA0-V6N	COVER,3RD HINGE UPPER,L (BEIGE)	1	Rp5.500
23	88810-73RA1-000 SUB: 88810-73RA0-000	FRAME,3RD BACK,L	1	Rp1.145.500
24	88834-73RA0-000	SILENCER,3RD BACK,L	1	Rp37.000
25	88860-73RA0-000	PAD,3RD BACK,L	1	Rp219.500
26-1	88880-73RA0-DGQ	TRIM,3RD BACK,L (BEIGE/BROWN)	1	Rp587.500	GA
26-2	88880-73RA0-DJQ	TRIM,3RD BACK,L (BEIGE/BROWN)	1	Rp497.000	GL,GX
27	09387-19001-000	RING (OD:22.6)	3	Rp9.000
28	02142-0510A-000 SUB: 02142B0510AN000	SCREW	1	Rp4.000
29	03241-0510A-000	SCREW	2	Rp8.000
30	88323-73RA0-000	BOLT,3RD STAY FIX	2	Rp8.500
31	88491-73RA0-R8R	COVER,3RD MTG (BROWN)	2	Rp8.000
32	09409-10302-R8R	CLIP (BROWN)	4	Rp19.000
33	01551-1020A-000	BOLT	5	Rp18.000
