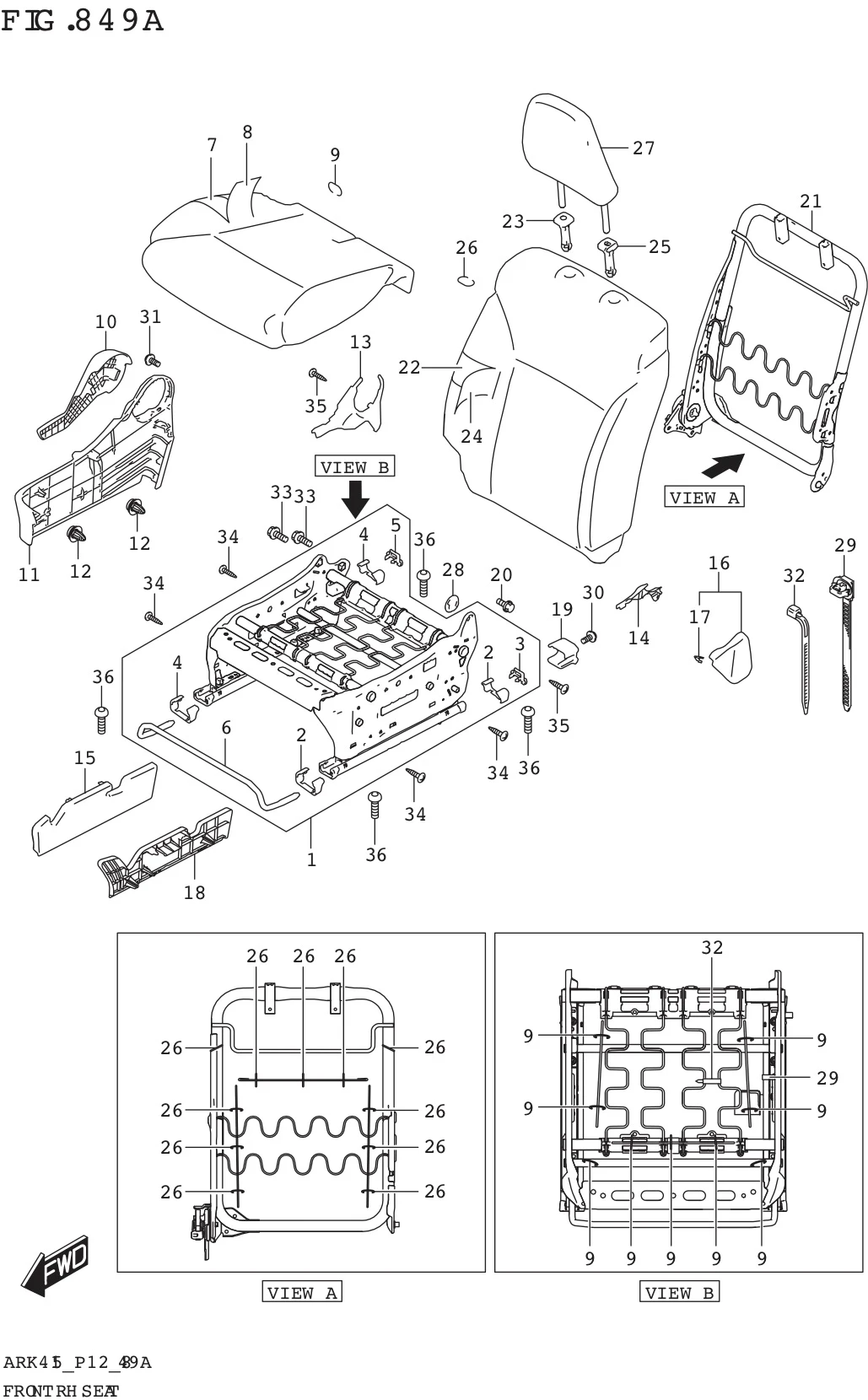

FIG. 849A FRONT RH SEAT (GA,GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85103-73R10-000	FRAME ASSY,FR CUSH,R	1	Rp1.953.500	GA,GL
2	86652M74P50-000	.CAP,FR ADJUSTER LOWER	2	Rp5.500	GA,GL
3	86653M74P50-000	.CAP,FR ADJUSTER UPPER	1	Rp5.500	GA,GL
4	86652M74P50-000	.CAP,FR ADJUSTER LOWER	2	Rp5.500	GA,GL
5	86653M74P50-000	.CAP,FR ADJUSTER UPPER	1	Rp5.500	GA,GL
6	86691-73R00-000	.HANDLE,FR SEAT ADJUSTER	1	Rp130.500	GA,GL
7	85160-73R00-000	PAD,FR CUSH	1	Rp346.500	GA,GL
8-1	85180-73R00-DF1	TRIM,FR CUSH,R (BEIGE)	1	Rp570.500	GA
8-2	85180-73R00-DHQ	TRIM,FR CUSH,R (BEIGE/BROWN)	1	Rp655.500	GL
9	09387-19001-000	RING (OD:22.6)	9	Rp9.000	GA,GL
10	85211-62R00-V6N	KNOB,RCLNG,R (BEIGE)	1	Rp70.500	GA,GL
11	85221-73R00-V6N	COVER,RCLNG OUTSIDE,R (BEIGE)	1	Rp107.000	GA,GL
12	09409-10313-000	CLIP	2	Rp14.000	GA,GL
13	85222-68P00-V6N	COVER,RCLNG INS LWR,R (BEIGE)	1	Rp10.000	GA,GL
14	85222-73R00-V6N	COVER,RCLNG INS LWR,R (BEIGE)	1	Rp86.000	GA,GL
15	85223-73R00-000	COVER,FR RISER,R	1	Rp19.000	GA,GL
16	85241-68P10-V6N	COVER,FR RCLNG INS,R (BEIGE)	1	Rp10.000	GA,GL
17	85249M68P00-000	.CLIP	1	Rp9.500	GA,GL
18	85243-73R00-000	COVER,FR RISER,L	1	Rp20.500	GA,GL
19	85280-81P00-000	COVER,FR HARNESS BRACKET	1	Rp6.500	GA,GL
20	85295-58J01-000	BOLT,FR BACK FIX	1	Rp34.000	GA,GL
21	85303-73R00-000	FRAME ASSY,FR BACK,R	1	Rp1.012.000	GA,GL
22	85360-73R00-000	PAD,FR BACK,R	1	Rp346.000	GA,GL
23	85341-73R00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp49.000	GA,GL
24-1	85380-73R00-DF1	TRIM,FR BACK,R (BEIGE)	1	Rp1.376.500	GA
24-2	85380-73R00-DHQ	TRIM,FR BACK,R (BEIGE/BROWN)	1	Rp2.327.000	GL
25	85840-73R00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp49.000	GA,GL
26	09387-19001-000	RING (OD:22.6)	11	Rp9.000	GA,GL
27-2	86401-73R00-DJV	HEADRESTRAINT ASSY (BEIGE)	1	Rp747.000	GL
27-1	86401-73R00-WCV	HEADRESTRAINT ASSY (BEIGE)	1	Rp364.500	GA
28	87286-81P00-000	BUSH,FR BACK FIX	1	Rp37.000	GA,GL
29	96619-59L00-000	CLAMP	1	Rp24.500	GA,GL
30	09132-04037-000	SCREW (4X10)	1	Rp15.000	GA,GL
31	09132-04037-000	SCREW (4X10)	1	Rp15.000	GA,GL
32	09407M14403-000	CLAMP (L:125)	1	Rp5.000	GA,GL
33	01550-1016A-000 SUB: 01550B1016AN000	BOLT (10X16)	2	Rp5.500	GA,GL
34	03541-0410A-000	SCREW	4	Rp11.000	GA,GL
35	03541-0410A-000	SCREW	2	Rp11.000	GA,GL
36	09119-08107-000	BOLT (8X25)	4	Rp5.500	GA,GL
