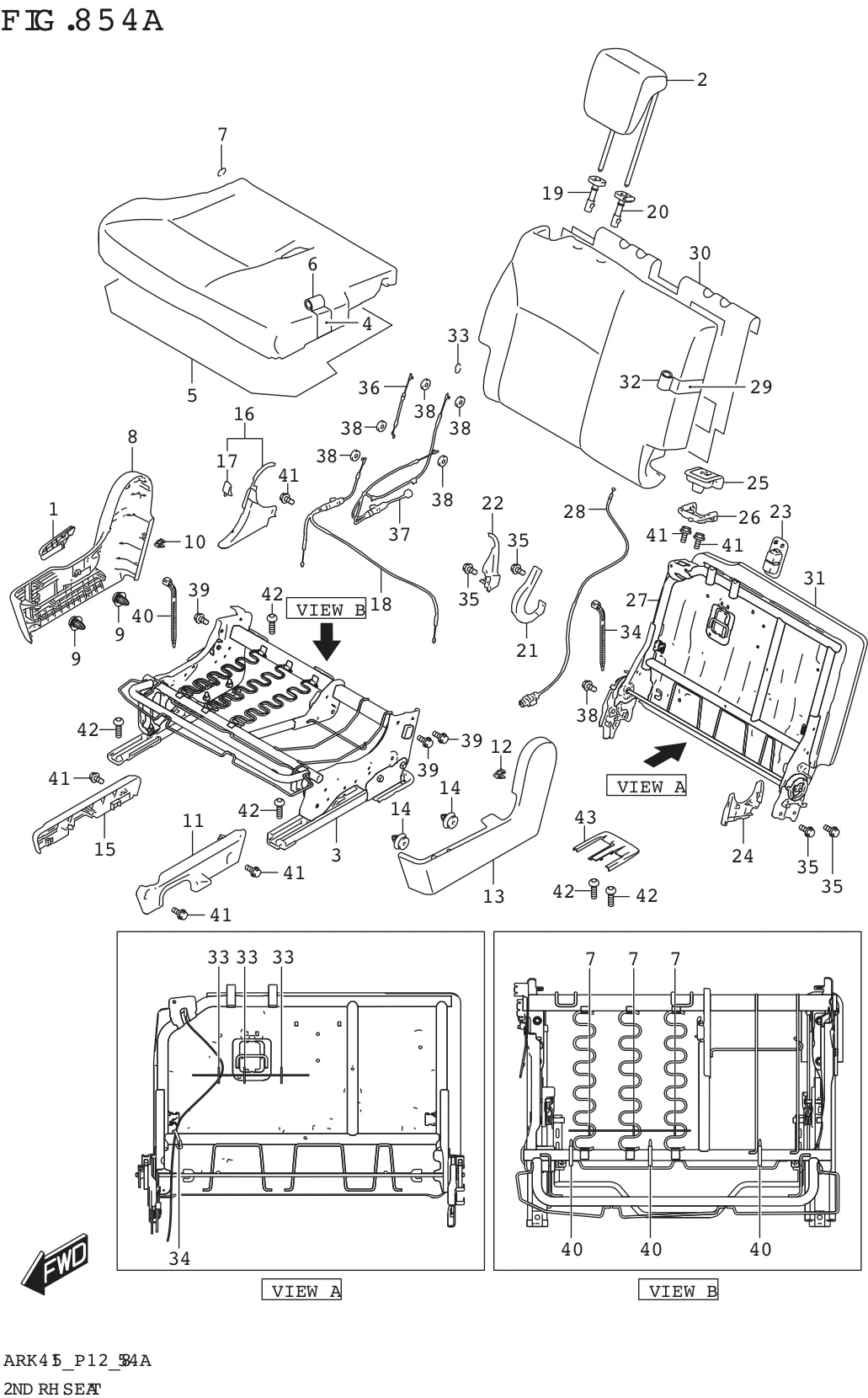

FIG. 854A 2ND RH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85211-58RA0-V6N	KNOB, RECLINING RH (BEIGE)	1	Rp10.000
2-1	86401-73R10-WCV	HEADRESTRAINT ASSY,RR (BEIGE)	1	Rp407.000	GA
2-2	86401-73R10-DJV	HEADRESTRAINT ASSY,RR (BEIGE)	1	Rp786.500	GL,GX
3	87103-73R14-000 SUB: 87103-73R10-000	FRAME ASSY,RR CUSH,R	1	Rp2.965.000
4	87160-73R10-000	PAD,RR CUSH,R	1	Rp487.000
5	87169-60M00-000 SUB: 87169B60M00N000	SILENCER,RR CUSH,R	1	Rp50.500
6-1	87180-73R10-DF1	TRIM,RR CUSH,R (BEIGE)	1	Rp472.000	GA
6-2	87180-73R10-DHY	TRIM,RR CUSH,R (BEIGE)	1	Rp747.000	GL,GX
7	09387-19001-000	RING (OD:22.6)	3	Rp9.000
8	87221-73R00-V6N	COVER,RCLNG OUTSIDE,R (BEIGE)	1	Rp112.000
9	87226-73R00-000	CLIP	2	Rp5.500
10	87227-73R00-000	CLIP	1	Rp5.500
11	87225-73R00-000 SUB: 87225-73R00-V6N	COVER,RR OUTER RISER,R (BEIGE)	1	Rp23.500
12	87227-73R00-000	CLIP	1	Rp5.500
13	87241-73R00-V6N	COVER,RCLNG INSIDE,R (BEIGE)	1	Rp145.500
14	09409-10314-000	CLIP	2	Rp17.000
15	87244-73R00-000 SUB: 87244-73R00-V6N	COVER,RR INNER RISER,R (BEIGE)	1	Rp21.500
16	87270-73R00-V6N	COVER,RCLNG INR LWR,R (BEIGE)	1	Rp30.500
17	87229-73R00-V6N	.PROTECTOR,RR RCLNG COVER,R	1	Rp105.000
18	87294-73R00-000	CABLE,RR SLIDE RELEASE,R	1	Rp138.000
19	85341-58RA1-V6N	GUIDE, HEADRESTRAINT (BEIGE)	1	Rp10.500
20	85840-73R10-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp11.000
21	87222-73R01-V6N	COVER,RCLNG OUT INR R (BEIGE)	1	Rp12.000
22	87224-73R00-V6N	COVER,RCLNG INR LWR,R (BEIGE)	1	Rp18.000
23	87225-73R10-V6N	COVER,TETHER ANCHOR (BEIGE)	1	Rp11.000
24	87243-73R00-V6N	COVER,RCLNG INS INR,R (BEIGE)	1	Rp9.500
25	87290-73R10-V6N	KNOB,WALKIN RELEASE,R (BEIGE)	1	Rp88.000
26	87298-73R00-000	GUIDE,WALKIN LEVER,R	1	Rp19.000
27	87310-73R10-000	FRAME,RR BACK,R	1	Rp1.911.000
28	87342-73R00-000	CABLE,RR BACK WALKIN	1	Rp164.000
29	87360-73R10-000	PAD,RR BACK,R	1	Rp375.000
30	87369-73R00-000	SILENCER,RR BACK,R	1	Rp6.500
31	87372-73R01-000 SUB: 87372-73R00-000	FELT,RR BACK,R	1	Rp58.000
32-1	87380-73R10-DF1	TRIM,RR BACK,R (BEIGE)	1	Rp537.500	GA
32-2	87380-73R10-DHY	TRIM,RR BACK,R (BEIGE)	1	Rp811.000	GL,GX
33	09387-19001-000	RING (OD:22.6)	3	Rp9.000
34	09407M14403-000	CLAMP (L:125)	1	Rp5.000
35	03241-0510A-000	SCREW	4	Rp8.000
36	87341-73R00-000	CABLE,RR RCLNG	1	Rp33.000
37	87343-73R01-000 SUB: 87343-73R00-000	CABLE,RR WALKIN RELEASE,R	1	Rp235.500
38	87371-73R00-000	WASHER,CABLE END	5	Rp5.500
39	09103-10165-000	BOLT	4	Rp33.500
40	09407M14403-000	CLAMP (L:125)	3	Rp5.000
41	03241-0510A-000	SCREW	6	Rp8.000
42	87493-60M00-000	BOLT,RR MTG	5	Rp23.000
43	87494-73R00-R8R	COVER,RR MTG (BROWN)	1	Rp20.500
