ALL NEW ERTIGA

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANEL FIG. 572A TIRE CARRIER FIG. 580A FRONT FENDER PANEL (GA)FIG. 580B FRONT FENDER PANEL (GL)FIG. 580C FRONT FENDER PANEL (GX)FIG. 590A FRONT BODY PANEL FIG. 600A FLOOR PANEL FIG. 640A SIDE BODY PANEL FIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX)FIG. 717A FRONT BUMPER FIG. 718A REAR BUMPER FIG. 721A INSTRUMENT PANEL UPPER FIG. 722A INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B INSTRUMENT PANEL LOWER (GX)FIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX)FIG. 732A HEATER UNIT FIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL,GX:SEE NOTE)FIG. 736A HEATER DOOR (SEE NOTE)FIG. 737A EVAPORATOR UNIT (SEE NOTE)FIG. 73AA HEATER CONTROL FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL,GX)FIG. 741A FLOOR CARPET (GA)FIG. 741B FLOOR CARPET (GL)FIG. 741C FLOOR CARPET (GX)FIG. 745A INTERIOR TRIM FIG. 750A COVER/CAP FIG. 755A FUEL LID OPENER FIG. 757A ROOF SIDE PAD FIG. 760A ROOF LINING FIG. 772A MOLDING FIG. 780A EMBLEM FIG. 790A WINDSHIELD FIG. 800A FRONT DOOR PANEL (GA)FIG. 800B FRONT DOOR PANEL (GL,GX)FIG. 801A REAR DOOR PANEL (GA)FIG. 801B REAR DOOR PANEL (GL,GX)FIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX)FIG. 810A FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX)FIG. 824A BACK DOOR LOCK (GA)FIG. 824B BACK DOOR LOCK (GL)FIG. 824C BACK DOOR LOCK (GX)FIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX)FIG. 841A FRONT SEAT BELT FIG. 843A 2ND SEAT BELT FIG. 844A 3RD SEAT BELT FIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX)FIG. 854A 2ND RH SEAT FIG. 855A 2ND LH SEAT FIG. 857A 3RD RH SEAT FIG. 858A 3RD LH SEAT FIG. 865A FUEL TANK FIG. 893A TOOL FIG. 960A CONDENSER FIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX)FIG. 970A REAR A/C PIPING (GL,GX)FIG. 972A COOLING UNIT (GL,GX)FIG. 990A COMPRESSOR

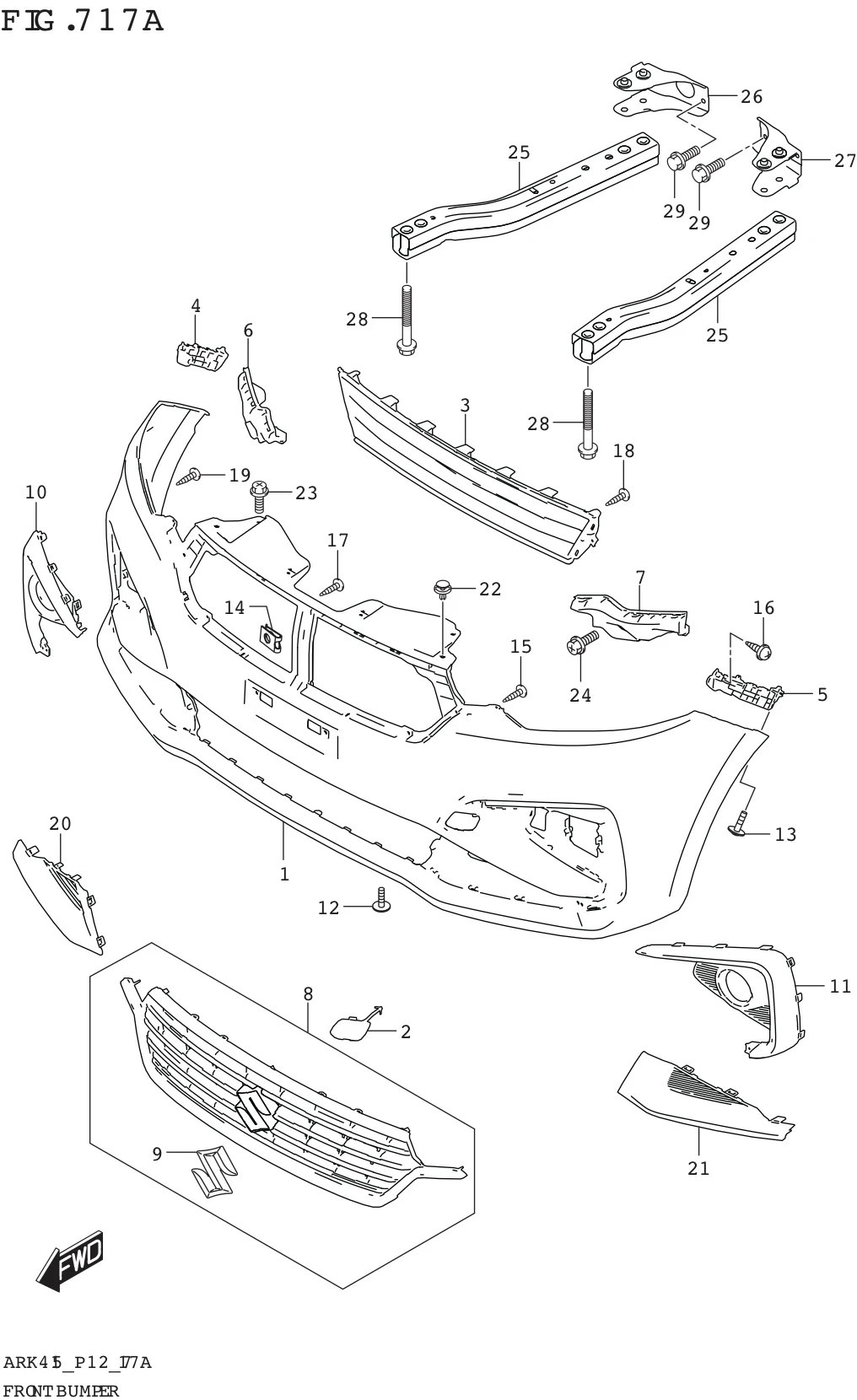

FIG. 717A FRONT BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711-73R00-799	BUMPER,FRONT (PRIMARY)	1	Rp1.080.500
2	71712-73R00-000	CAP,FRONT BUMPER	1	Rp65.500
3	71721-73R00-5PK	GRILLE,RADIATOR LOWER (BLACK)	1	Rp93.500
4	71731-73R00-000	HOLDER,FR BUMPER SIDE,R	1	Rp17.500
5	71732-73R00-000	HOLDER,FR BUMPER SIDE,L	1	Rp17.500
6	71733-73R00-000	HOLDER,FR BUMPER FRONT,R	1	Rp32.500
7	71734-73R00-000	HOLDER,FR BUMPER FRONT,L	1	Rp32.500
8-1	71740-73R00-CUG	GRILLE,RADIATOR UPPER	1	Rp483.500	GA
8-2	71740-73R10-CUG	GRILLE,RADIATOR UPPER	1	Rp1.001.500	GL,GX
9	77811-54GC0-0PG SUB: 77811B54GC0N0PG	EMBLEM,MARK S (CHROME)	1	Rp49.500
10-1	71751-73R00-5PK	BEZEL,FRONT FOG LAMP,R (BLACK)	1	Rp30.500	GA,GL
10-2	71751-73R10-5PK	BEZEL,FRONT FOG LAMP,R (BLACK)	1	Rp30.500	GX
11-1	71761-73R00-5PK	BEZEL,FRONT FOG LAMP,L (BLACK)	1	Rp30.500	GA,GL
11-2	71761-73R10-5PK	BEZEL,FRONT FOG LAMP,L (BLACK)	1	Rp30.500	GX
12	09136-05068-000	SCREW (5X20)	4	Rp15.000
13	09136-05068-000	SCREW (5X20)	2	Rp15.000
14	09148-06021-000	NUT (M6)	2	Rp27.500
15	03541-0412A-000 SUB: 03541B0412AN000	SCREW (4X12)	2	Rp3.500
16	03541-0512B-000 SUB: 03541B0512BN000	SCREW	4	Rp4.000
17	03541-0516A-000	SCREW	8	Rp3.500
18	03541-0516A-000	SCREW	2	Rp3.500
19	03541-0516A-000	SCREW	4	Rp3.500
20	71752-73R00-5PK	COVER,FRONT FOG LAMP BEZEL,R	1	Rp42.000
21	71762-73R00-5PK	COVER,FRONT FOG LAMP BEZEL,L	1	Rp42.000
22	09409-08010-000	CLIP	2	Rp5.500
23	02162-0616A-000	SCREW (6X16)	4	Rp3.000
24	02162-0616A-000	SCREW (6X16)	4	Rp3.000
25	71120-73R00-000	MEMBER,APRON LOWER	2	Rp275.500
26	71141-73R00-000	BRACKET,APRON LOWER MEMBER,R	1	Rp150.500
27	71151-73R00-000	BRACKET,APRON LOWER MEMBER,L	1	Rp150.500
28	01550-0865B-000 SUB: 01550B0865BN000	BOLT	8	Rp8.500
29	01551-0816C-000	BOLT	4	Rp13.500
