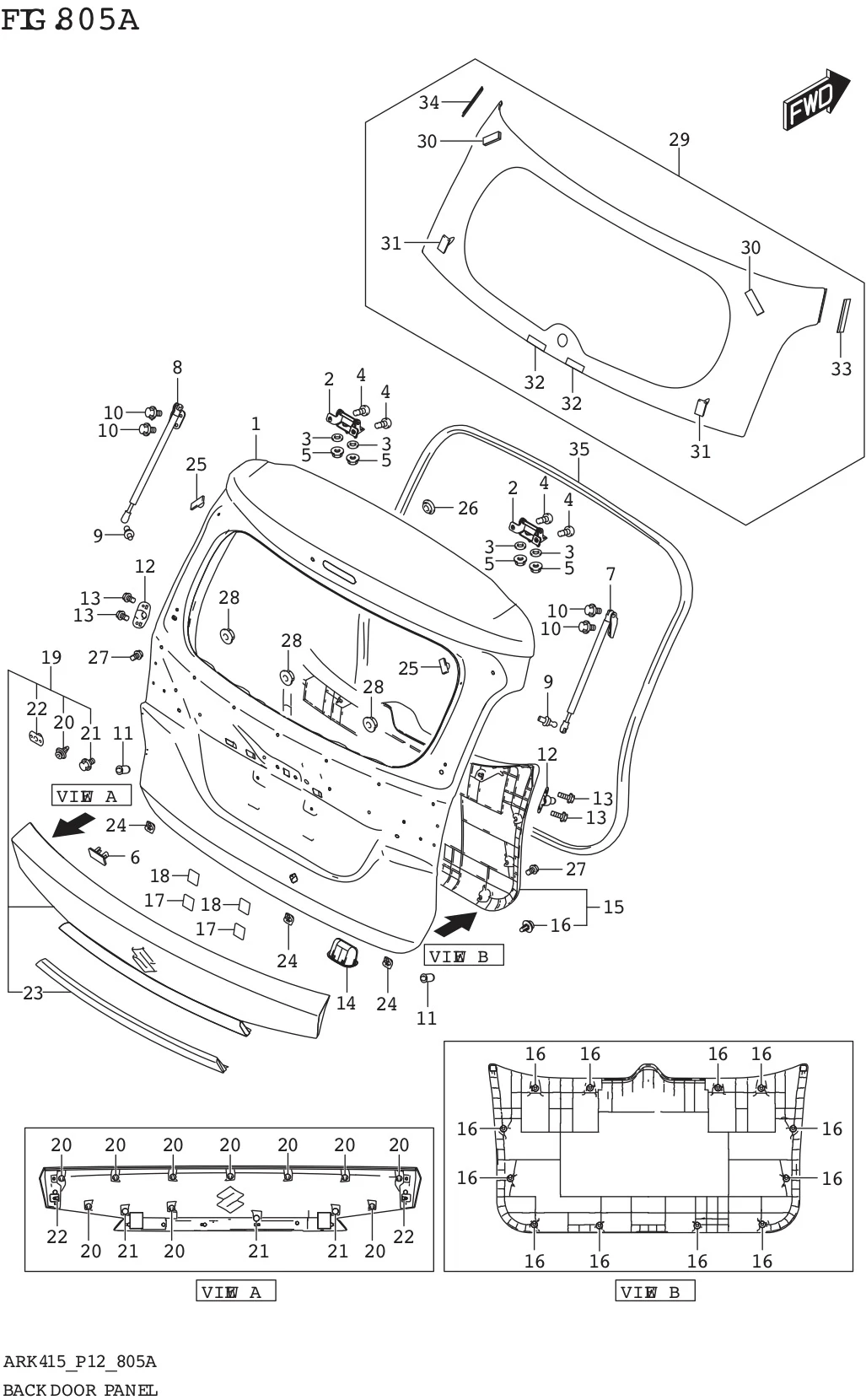

FIG. 805A BACK DOOR PANEL (GA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100-73R01-000 SUB: 69100-73R00-000	PANEL ASSY,BACK DR	1	Rp2.439.500
2	69510-73R00-000	HINGE,BACK DR	2	Rp49.500
3	69571M76G00-000	.PACKING,BACK DR HINGE	4	Rp6.500
4	09111-06086-000	BOLT (6X12)	4	Rp16.000
5	08361-2508A-000	NUT	4	Rp16.500
6	39977M66R00-000	CAP,BACK CAMERA	1	Rp16.000
7	81850M73R00-000	BALANCER,BACK DOOR,R	1	Rp282.000
8	81860M73R00-000	BALANCER,BACK DOOR,L	1	Rp282.000
9	81871M68P01-000	BALLSTUD,BACK DOOR BALANCER	2	Rp31.000
10	09113M08002-000	BOLT (8X12)	4	Rp5.500
11	82683-73R00-000	CUSHION,BACK DOOR LOWER	2	Rp19.500
12	82760-73R00-000	CUSHION,BACK DOOR SIDE	2	Rp25.000
13	02162-0616B-000	SCREW (6X16)	4	Rp15.500
14	82841-82G02-000 SUB: 82841B82G02N000	HANDLE,BACK DOOR INNER	1	Rp7.000
15	83770-73R00-V6N	TRIM,BACK DR (BEIGE)	1	Rp513.000
16	09409-10327-000	.CLIP	12	Rp5.000
17	44281-29C00-000 SUB: 44281B29C00N000	CUSHION	2	Rp6.000
18	77151-82000-000 SUB: 77151B82000N000	FILM	2	Rp7.000
19-7	83940-73R00-ZZA	GARNISH,BACK DR LICENSE (BROWN)	1	Rp831.500	BODY COLOR:ZZA
19-6	83940-73R00-ZLL	GARNISH,BACK DR LICENSE (RED)	1	Rp831.500	BODY COLOR:ZLL
19-3	83940-73R00-ZYZ	GARNISH,BACK DR LICENSE (GRAY)	1	Rp807.500	BODY COLOR:ZYZ
19-5	83940-73R00-ZKB	GARNISH,BACK DR LICENSE (RED)	1	Rp826.500	BODY COLOR:ZKB
19-2	83940-73R00-Z2S	GARNISH,BACK DR LICENSE (SILVER)	1	Rp826.500	BODY COLOR:Z2S
19-1	83940-73R00-ZQZ	GARNISH,BACK DR LICENSE (WHITE)	1	Rp826.500	BODY COLOR:ZQZ
19-4	83940-73R00-ZBD	GARNISH,BACK DR LICENSE (BLACK)	1	Rp826.500	BODY COLOR:ZBD
20	71812-78F00-000 SUB: 71812B78F00N000	.CLIP	10	Rp9.000
21	83947-73R00-000	.BOLT,BACK DR GARNISH	3	Rp27.500
22	09146M06003-000	.NUT	2	Rp7.500
23	83942-73R00-000	.MOLDING BACK DOOR GARNISH	1	Rp97.500
24	83994-73R00-000	CAP,BACK DR DRAIN HOLE	3	Rp5.500
25	84515-65D00-000	FEMALE,GLASS FASTENER NO.2	2	Rp45.500
26	09250M20031-000 SUB: 09250M20L02-000	CAP (OD:25.8)	1	Rp4.500
27	02162-0616B-000	SCREW (6X16)	2	Rp15.500
28	08316-1006A-000	NUT (6X12)	3	Rp2.000
29	84571-73R10-000 SUB: 84570-73R10-000	GLASS,BACK DR WINDOW	1	Rp430.000
30	84513-76F00-000	.MALE,GLASS FASTENER NO.2	2	Rp38.500
31	84575-73R00-000	.CLIP,GLASS FASTENER	2	Rp19.000
32	84617M60M00-000	.SPACER	2	Rp4.500
33	84623-73R00-000	.MOLDING,BACK DR WINDOW,R	1	Rp19.000
34	84625-73R00-000	.MOLDING,BACK DR WINDOW,L	1	Rp19.000
35	84681-73R00-000	WEATHERSTRIP,BACK DR OPNG	1	Rp259.500
