ALL NEW ERTIGA

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANEL FIG. 572A TIRE CARRIER FIG. 580A FRONT FENDER PANEL (GA)FIG. 580B FRONT FENDER PANEL (GL)FIG. 580C FRONT FENDER PANEL (GX)FIG. 590A FRONT BODY PANEL FIG. 600A FLOOR PANEL FIG. 640A SIDE BODY PANEL FIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX)FIG. 717A FRONT BUMPER FIG. 718A REAR BUMPER FIG. 721A INSTRUMENT PANEL UPPER FIG. 722A INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B INSTRUMENT PANEL LOWER (GX)FIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX)FIG. 732A HEATER UNIT FIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL,GX:SEE NOTE)FIG. 736A HEATER DOOR (SEE NOTE)FIG. 737A EVAPORATOR UNIT (SEE NOTE)FIG. 73AA HEATER CONTROL FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL,GX)FIG. 741A FLOOR CARPET (GA)FIG. 741B FLOOR CARPET (GL)FIG. 741C FLOOR CARPET (GX)FIG. 745A INTERIOR TRIM FIG. 750A COVER/CAP FIG. 755A FUEL LID OPENER FIG. 757A ROOF SIDE PAD FIG. 760A ROOF LINING FIG. 772A MOLDING FIG. 780A EMBLEM FIG. 790A WINDSHIELD FIG. 800A FRONT DOOR PANEL (GA)FIG. 800B FRONT DOOR PANEL (GL,GX)FIG. 801A REAR DOOR PANEL (GA)FIG. 801B REAR DOOR PANEL (GL,GX)FIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX)FIG. 810A FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX)FIG. 824A BACK DOOR LOCK (GA)FIG. 824B BACK DOOR LOCK (GL)FIG. 824C BACK DOOR LOCK (GX)FIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX)FIG. 841A FRONT SEAT BELT FIG. 843A 2ND SEAT BELT FIG. 844A 3RD SEAT BELT FIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX)FIG. 854A 2ND RH SEAT FIG. 855A 2ND LH SEAT FIG. 857A 3RD RH SEAT FIG. 858A 3RD LH SEAT FIG. 865A FUEL TANK FIG. 893A TOOL FIG. 960A CONDENSER FIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX)FIG. 970A REAR A/C PIPING (GL,GX)FIG. 972A COOLING UNIT (GL,GX)FIG. 990A COMPRESSOR

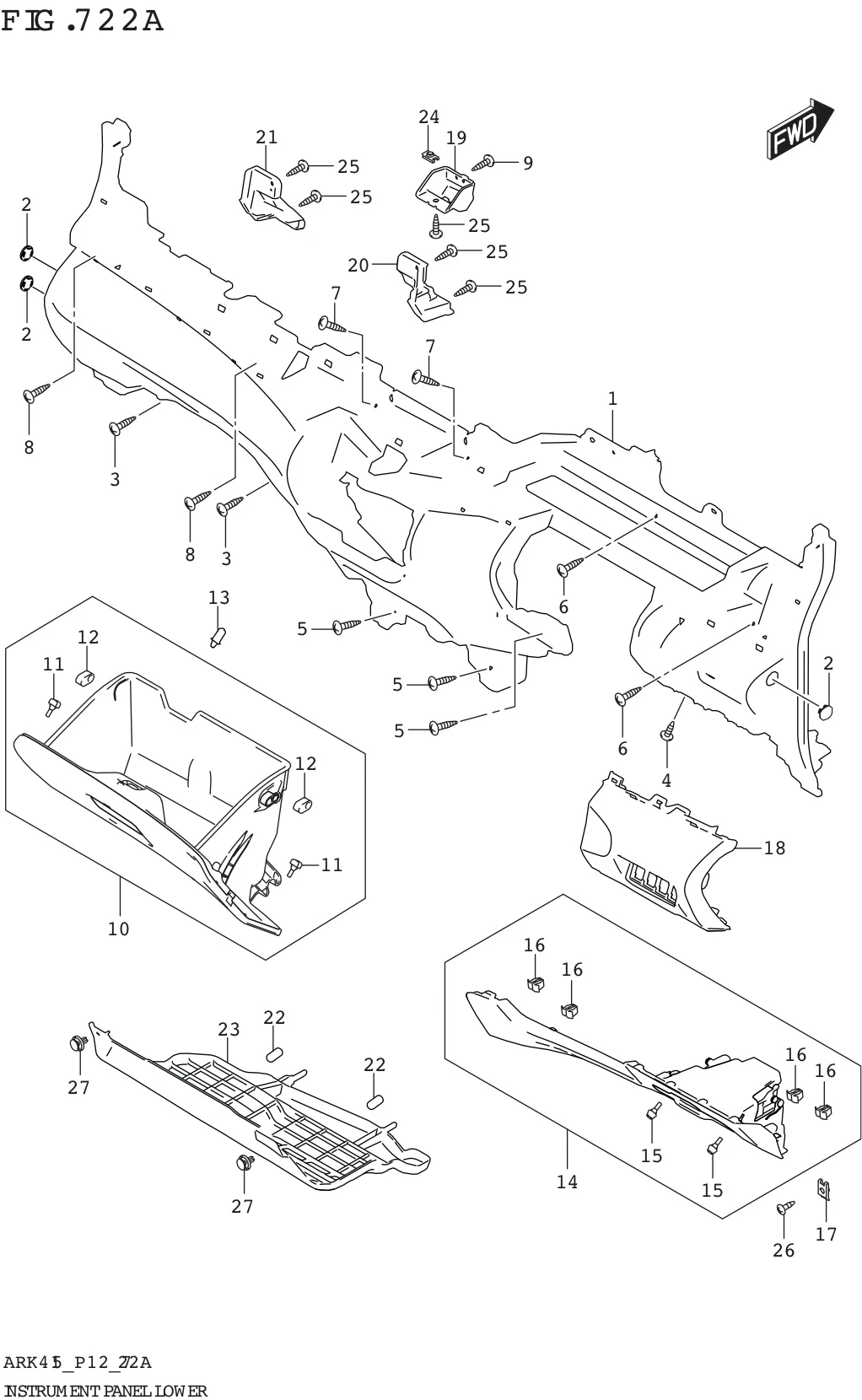

FIG. 722A INSTRUMENT PANEL LOWER (GA,GL)

No	No. Part	Description	Qty	Price Per Pcs
1	73121-73R00-V6N	PANEL,INSTRUMENT MAIN LOWER	1	Rp357.500
2	73871-73H00-5PK	CAP,I/P SIDE (BLACK)	3	Rp43.500
3	09132-05049-000	SCREW (5X12)	2	Rp21.000
4	09132-05049-000	SCREW (5X12)	1	Rp21.000
5	09132-05049-000	SCREW (5X12)	3	Rp21.000
6	09132-05049-000	SCREW (5X12)	2	Rp21.000
7	09132-05049-000	SCREW (5X12)	2	Rp21.000
8	09132-05049-000	SCREW (5X12)	2	Rp21.000
9	03541-0516A-000	SCREW	1	Rp3.500
10	73410-73R00-V6N	BOX,GLOVE (BEIGE)	1	Rp230.000
11	73461-54M00-000	.CUSHION,GLOVE BOX SIDE	2	Rp32.000
12	73413M65D00-000	.CUSHION,GLOVE BOX	2	Rp6.500
13	73461-77R00-000	CUSHION,GLOVE BOX	1	Rp33.500
14	73810-73R00-V6N	COVER,STRG COLUMN HOLE (BEIGE)	1	Rp92.000
15	73413M82C00-000	.CUSHION,GLOVE BOX LID	2	Rp11.500
16	09409-08351-000	.CLIP	4	Rp21.000
17	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	1	Rp4.000
18	73833-73R00-V6N	BEZEL,I/P SW (BEIGE)	1	Rp70.500
19	73841-73R00-000	COVER,GLOVE BOX STRIKER	1	Rp14.000
20	73863-73R00-V6N	COVER,GLOVE BOX INSIDE (BEIGE)	1	Rp9.000
21	73864-73R00-V6N	COVER,GLOVE BOX OUTSIDE (BEIGE)	1	Rp9.000
22	73132-57L00-000	CAP,I/P PIN	2	Rp38.000
23	73891-73R00-000	COVER,I/P UNDER ASST	1	Rp43.500
24	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	1	Rp4.000
25	03541-0516A-000	SCREW	5	Rp3.500
26	03541-0516A-000	SCREW	1	Rp3.500
27	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
