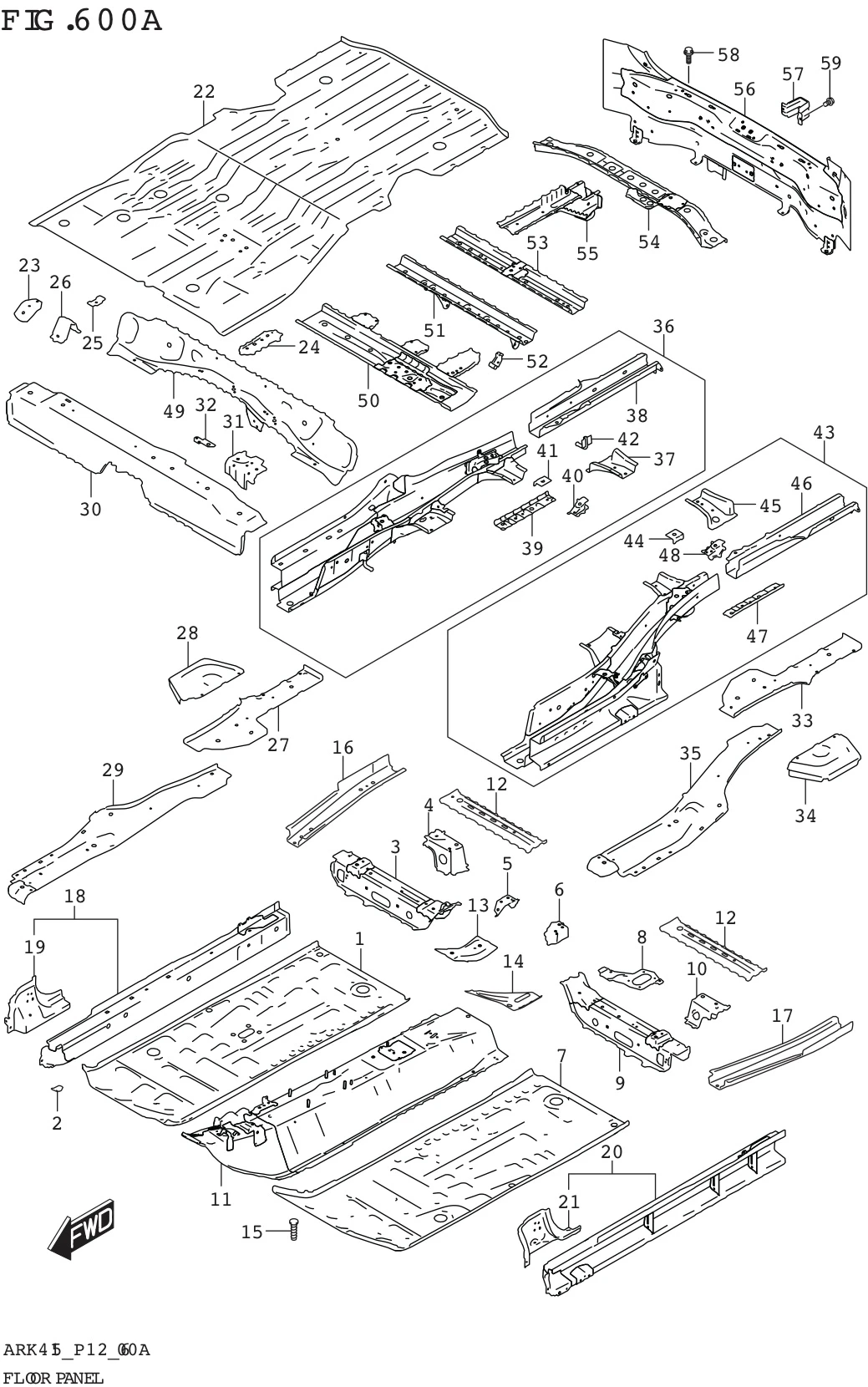

FIG. 600A FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61111-73R00-000	PAN,MAIN FLOOR,R	1	Rp642.000
2	61112M68P00-000	BRACKET,DASH LWR PAD	1	Rp18.000
3	61120-73R00-000	CROSSMEMBER,FLR PAN UPR,R	1	Rp315.000
4	61130-73R00-000	BRACKET,FR SEAT RR OUT,R	1	Rp170.500
5	61141-73R00-000	BRACKET,FR SEAT RR INSIDE,R	1	Rp114.500
6	61143-73R00-000	BRACKET,FR SEAT RR INSIDE,L	1	Rp114.500
7	61161-73R00-000	PAN,MAIN FLOOR,L	1	Rp642.000
8	61163-73R00-000	REINF,MAIN FLOOR CTR	1	Rp40.000
9	61170-73R00-000	CROSSMEMBER,FLR PAN UPR,L	1	Rp315.000
10	61180-73R00-000	BRACKET,FR SEAT RR OUT,L	1	Rp170.500
11	61210-73R00-000	TUNNEL,MAIN FLOOR	1	Rp2.173.000
12	61232M68P00-000	CROSSMEMBER,FL PAN UPR RR	2	Rp143.000
13	61234-72R00-000 SUB: 61234-73R00-000	REINF,MAIN FLOOR,R	1	Rp74.500
14	61235M68P00-000	REINF,MAIN FLOOR INSIDE,R	1	Rp84.000
15-1	09119-05018-000	BOLT (5X15)	3	Rp13.000	GA
15-2	09119-05018-000	BOLT (5X15)	4	Rp13.000	GL,GX
16	61241-55R00-000	MEMBER,FLOOR SIDE RR,R	1	Rp158.000
17	61261-55R00-000	MEMBER,FLOOR SIDE RR,L	1	Rp158.000
18	61310-73R00-000	PANEL,SIDE SILL INNER,R	1	Rp715.000
19	61316-73R00-000	.PANEL,DASH SIDE LOWER,R	1	Rp104.000
20	61320-73R00-000	PANEL,SIDE SILL INNER,L	1	Rp715.000
21	61326-73R00-000	.PANEL,DASH SIDE LOWER,L	1	Rp105.000
22	61512-73R00-000	PANEL,RR FLOOR	1	Rp1.438.500
23	61515-73R00-000	BRACKET,3RD SEAT FR	4	Rp20.000
24	61516-73R00-000	BRACKET,3RD SEAT RR INSIDE	2	Rp33.000
25	61517-73R00-000	BRACKET,FUEL HOSE CLAMP	1	Rp12.500
26	61518-73R00-000	BRACKET,LUGGAGE BOARD	2	Rp24.000
27	61522-73R20-000	PANEL,RR FLOOR SIDE RR,R	1	Rp315.000
28	61523-73R00-000	EXTENSION,RR FLOOR RR SIDE,R	1	Rp247.000
29	61540-73R00-000	PANEL,RR FLOOR SIDE FR,R	1	Rp569.000
30	61511-73R00-000	PANEL,RR FLOOR FR	1	Rp577.000
31	61531-73R00-000	REINF,RR SEAT RAIL FR CTR	1	Rp135.500
32	61532-73R00-000	PATCH,RR SEAT RAIL FR CTR	1	Rp35.500
33	61572-73R00-000	PANEL,RR FLOOR SIDE RR,L	1	Rp305.000
34	61573-73R00-000	EXTENSION,RR FLOOR RR SIDE,L	1	Rp247.000
35	61590-73R00-000	PANEL,RR FLOOR SIDE FR,L	1	Rp551.500
36	62100-73R21-000 SUB: 62100-73R20-000	MEMBER,RR FLOOR SIDE,R	1	Rp2.369.500
37	62118-73R00-000	.EXTENSION,RR FLR 4TH X MBR,R	1	Rp53.000
38	62121-73R00-000	.EXTENSION,RR FLR SIDE MBR RR,R	1	Rp260.500
39	62122-73R00-000	.REINF,RR FLR SIDE MBR,R	1	Rp24.000
40	62123-73R00-000	.REINF,3RD SEAT HINGE,R	1	Rp20.500
41	62124-73R00-000	.REINF,3RD SEAT HINGE FR	1	Rp13.000
42	62140-73R00-000	.ROD,MUFFLER HANGER	1	Rp47.500
43	62300-73R21-000 SUB: 62300-73R20-000	MEMBER,RR FLOOR SIDE,L	1	Rp2.369.500
44	62124-73R00-000	.REINF,3RD SEAT HINGE FR	1	Rp13.000
45	62318-73R00-000	.EXTENSION,RR FLR 4TH X MBR,L	1	Rp51.500
46	62321-73R00-000	.EXTENSION,RR FLR SIDE MBR RR,L	1	Rp260.500
47	62322-73R00-000	.REINF,RR FLR SIDE MBR,L	1	Rp24.000
48	62323-73R00-000	.REINF,3RD SEAT HINGE,L	1	Rp16.500
49	62610-73R00-000	CROSSMEMBER,RR FLOOR FR	1	Rp315.000
50	62620-73R00-000	CROSSMEMBER,RR FLOOR 2ND	1	Rp530.000
51	62650-73R10-000	CROSSMEMBER,RR FLOOR 3RD	1	Rp145.000
52	62654-73R00-000	BRACKET,CANISTER HOSE CLAMP	1	Rp34.500
53	62660-73R00-000	CROSSMEMBER,RR FLOOR 4TH	1	Rp122.000
54	62670-73R00-000	CROSSMEMBER,RR FLOOR 5TH	1	Rp253.500
55	62680-73R00-000	HOOK,TOWING RR	1	Rp211.500
56	65500-73R00-000	PANEL,BACK	1	Rp1.230.500
57	65541-73R00-000	ABSORBER,RR BUMPER	3	Rp21.000
58	01550M0612A-000	BOLT (6X12)	4	Rp5.000
59	01550M0612A-000	BOLT (6X12)	6	Rp5.000
