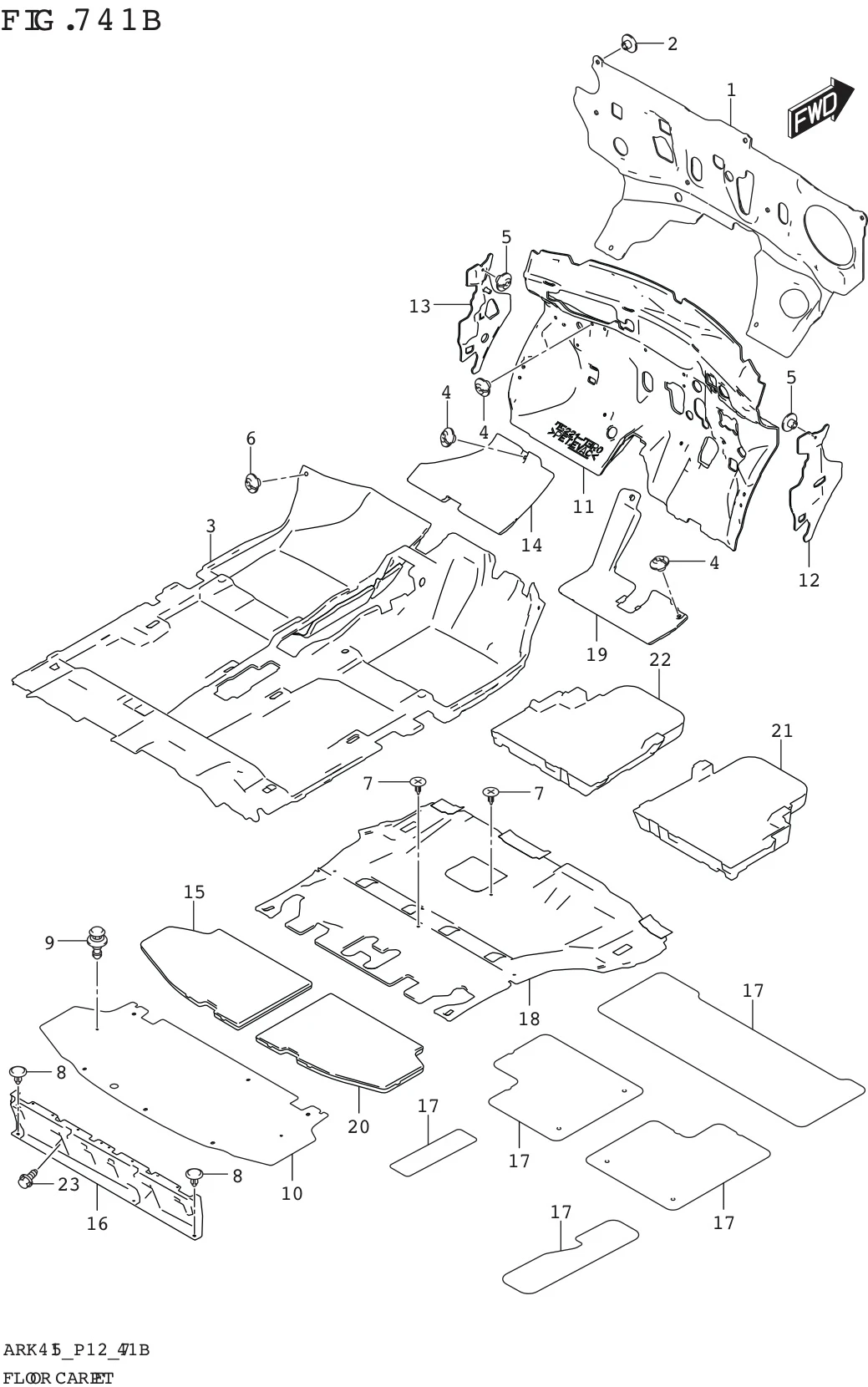

FIG. 741B FLOOR CARPET (GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	72450-73R00-000	SILENCER,DASH OUTER	1	Rp839.500
2	09148-05037-000	CLIP (M5)	3	Rp18.000
3-1	75110-73R01-PZD SUB: 75110-73R00-PZD	CARPET,FRONT FLOOR (BROWN)	1	Rp856.000	5MT
3-2	75110-73R11-PZD SUB: 75110-73R10-PZD	CARPET,FRONT FLOOR (BROWN)	1	Rp878.500	4AT
4	09148-05037-000	CLIP (M5)	2	Rp18.000
5	09148-05037-000	CLIP (M5)	2	Rp18.000
6	09148-05037-000	CLIP (M5)	5	Rp18.000
7	09409-10302-R8R	CLIP (BROWN)	5	Rp19.000
8	09409-07340-R8R	CLIP (BROWN)	2	Rp18.500
9	09409-07340-R8R	CLIP (BROWN)	3	Rp18.500
10	75130-73R00-PZD	CARPET,LUGGAGE FLOOR (BROWN)	1	Rp681.000
11-1	75221-73R00-000	SILENCER,DASH PANEL INNER	1	Rp1.232.500	5MT
11-2	75221-73R10-000	SILENCER,DASH PANEL INNER	1	Rp1.232.500	4AT
12	75222-73R00-000	SILENCER,DASH SIDE PANEL,R	1	Rp206.500
13	75223-73R00-000	SILENCER,DASH SIDE PANEL,L	1	Rp206.500
14	75412-73R00-000	PAD,DASH LOWER,L	1	Rp76.500
15	75471-73R01-PZD SUB: 75471-73R00-PZD	BOARD,LUGGAGE FLOOR,L (BROWN)	1	Rp313.500
16	75481-73R00-R8R	SUPPORT,LUGGAGE FLOOR BOARD	1	Rp356.500
17	99611-60A01-000	SHEET,SILENCER (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED
18	75121-73R11-PZD SUB: 75121-73R10-PZD	CARPET,REAR FLOOR (BROWN)	1	Rp529.000
19	75411-73R00-000	PAD,DASH LOWER,R	1	Rp69.000
20	75461-73R01-PZD SUB: 75461-73R00-PZD	BOARD,LUGGAGE FLOOR,R (BROWN)	1	Rp321.000
21	75531-73R00-000	PAD,MAIN FLOOR UPR RR,R	1	Rp169.500
22	75541-73R00-000	PAD,MAIN FLOOR UPR RR,L	1	Rp169.500
23	09103-06283-000	BOLT (6X16)	6	Rp20.500
24	75901-73R01-000 SUB: 75901-73R00-000	MAT SET FLOOR	1	Rp583.500	NOT ILLUSTRATED
