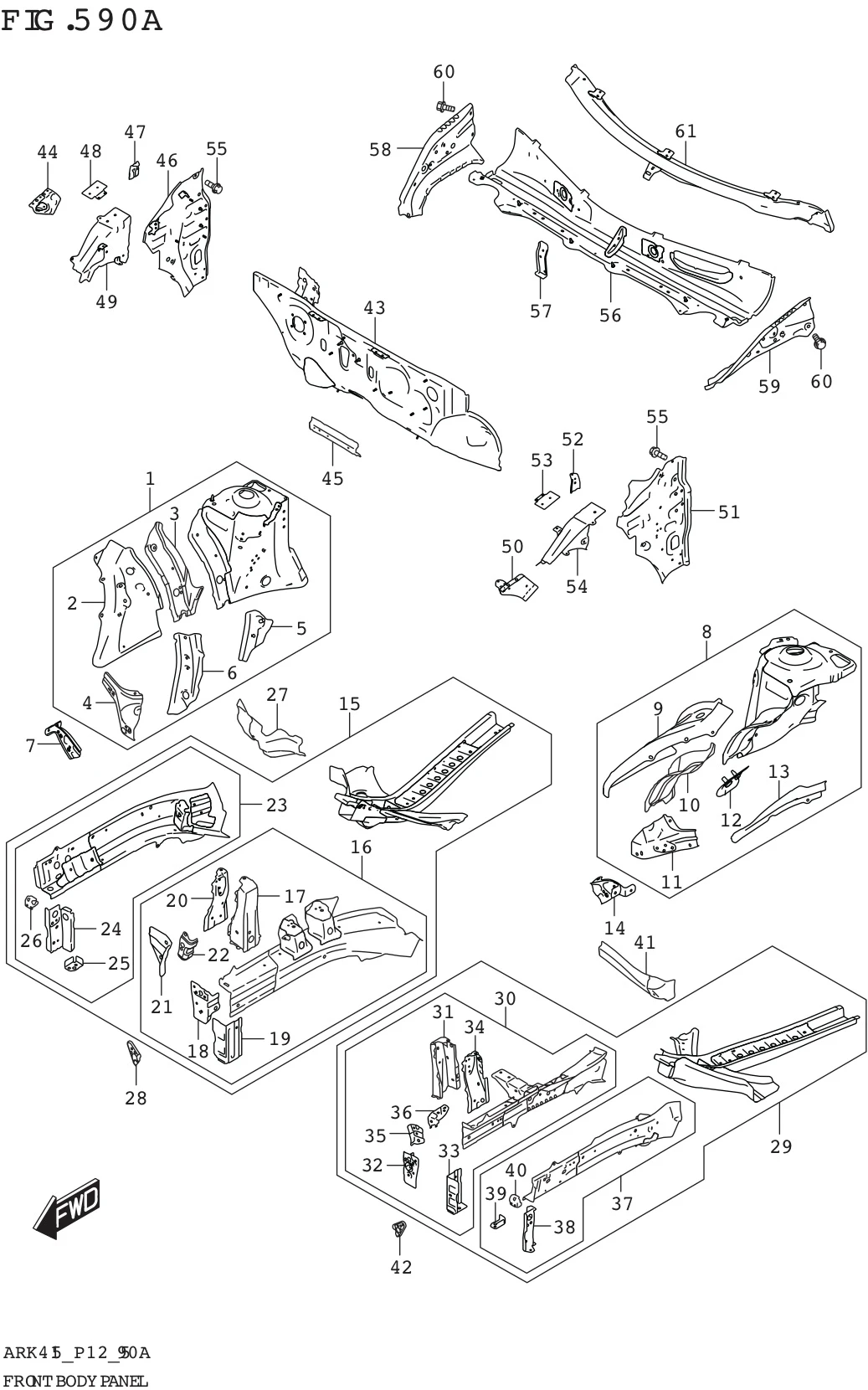

FIG. 590A FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	58310-73R00-000	PANEL,FENDER APRON,R	1	Rp717.500
2	58313-73R00-000	.EXTENSION,APRON FR,R	1	Rp99.000
3	58314-68P00-000	.MEMBER,FENDER APRON,R	1	Rp56.500
4	58315-55R00-000	.EXTENSION,FR FNDR LWR BRKT,R	1	Rp45.500
5	58318-73R00-000	.PATCH,APRON FR EXTENSION,R	1	Rp27.000
6	58321-73R00-000	.MEMBER,APRON FR EXTENSION,R	1	Rp69.000
7	58320-73R00-000	BRACKET,FR FENDER LOWER,R	1	Rp40.500
8	58410-73R01-000 SUB: 58410-73R00-000	PANEL,FENDER APRON,L	1	Rp717.500
9	58413-73R00-000	.EXTENSION,APRON FR,L	1	Rp111.000
10	58414-68P00-000	.MEMBER,FENDER APRON,L	1	Rp58.500
11	58415-55R00-000	.EXTENSION,FR FNDR LWR BRKT,L	1	Rp45.500
12	58418-73R00-000	.PATCH,APRON FR EXTENSION,L	1	Rp25.000
13	58421-73R00-000	.MEMBER,APRON FR EXTENSION,L	1	Rp69.000
14	58420-73R00-000	BRACKET,FR FENDER LOWER,L	1	Rp40.500
15	58600-73R00-000	MEMBER,FR SIDE,R	1	Rp2.408.500
16	58610-73R00-000	.MEMBER,APRON SIDE,R	1	Rp986.500
17	58614-55R00-000	..BRACE,LAMP SUPPORT,R	1	Rp73.500
18	58615-73R00-000	..PLATE,APRON SIDE MEMBER FR,R	1	Rp51.500
19	58618-73R00-000	..BRACE,RDTR SUPPORT INNER,R	1	Rp52.500
20	58619-73R00-000	..BRACE,LAMP SUPPORT OUTER,R	1	Rp46.500
21	58667-73R00-000	..EXTENSION,HEAD LAMP BRACKET,R	1	Rp23.000
22	58668-73R00-000	..REINF,HEAD LAMP BRACKET,R	1	Rp21.000
23	58630-73R00-000	.MEMBER,APRON SIDE OUTER,R	1	Rp786.500
24	58634-73R00-000	..BRACE,RADIATOR SUPPORT,R	1	Rp50.000
25	58635-73R00-000	..BRACKET,RDTR SUPPORT MBR	1	Rp24.000
26	58637-68P00-000	..GUSSET,APRN SIDE LWR,R	1	Rp19.000
27	58650M68P00-000	CROSSMEMBER,DASH UPR,R	1	Rp65.000
28	58671-55R00-000	BRACKET,HEAD LAMP,R	1	Rp30.000
29	58700-73R00-000	MEMBER,FR SIDE,L	1	Rp2.408.500
30	58710-73R00-000	.MEMBER,APRON SIDE,L	1	Rp986.500
31	58714-55R00-000	..BRACE,LAMP SUPPORT,L	1	Rp75.000
32	58715-73R00-000	..PLATE,APRON SIDE MEMBER FR,L	1	Rp55.500
33	58718-73R00-000	..BRACE,RDTR SUPPORT INNER,L	1	Rp57.000
34	58719-73R00-000	..BRACE,LAMP SUPPORT OUTER,L	1	Rp45.500
35	58767-73R00-000	..EXTENSION,HEAD LAMP BRACKET,L	1	Rp22.000
36	58768-73R00-000	..BRACKET,HORN	1	Rp27.000
37	58730-73R00-000	.MEMBER,APRON SIDE OUTER,L	1	Rp786.500
38	58734-73R00-000	..BRACE,RADIATOR SUPPORT,L	1	Rp43.500
39	58735-73R00-000	..BRACKET,RDTR SUPPORT MBR,L	1	Rp25.000
40	58737-68P00-000	..GUSSET,APRN SIDE LWR,L	1	Rp20.000
41	58750M68P00-000	CROSSMEMBER,DASH UPR,L	1	Rp65.000
42	58771-55R00-000	BRACKET,HEAD LAMP,L	1	Rp29.500
43-1	59100-73R01-000 SUB: 59100-73R00-000	PANEL,DASH	1	Rp1.919.000	5MT
43-2	59100-73R21-000 SUB: 59100-73R20-000	PANEL,DASH	1	Rp1.893.000	4AT
44	59210-73R10-000	BRACKET,FR FENDER FR,R	1	Rp58.000
45	59221-68P10-000	CROSSMEMBER,DASH UPR CTR	1	Rp97.500
46	59230-73R00-000	PANEL,DASH SIDE,R	1	Rp315.000
47	59234-73R00-000	BRACKET,FR FENDER RR,R	1	Rp10.000
48	59235-73R00-000	PATCH,FR HOOD HINGE,R	1	Rp14.500
49	59240-73R00-000	PANEL,DASH SIDE FR,R	1	Rp154.000
50	59260-73R10-000	BRACKET,FR FENDER FR,L	1	Rp58.000
51	59280-73R00-000	PANEL,DASH SIDE,L	1	Rp315.000
52	59284-73R00-000	BRACKET,FR FENDER RR,L	1	Rp10.000
53	59285-73R00-000	PATCH,FR HOOD HINGE,L	1	Rp14.500
54	59290-73R00-000	PANEL,DASH SIDE FR,L	1	Rp214.000
55	01550M0612A-000	BOLT (6X12)	2	Rp5.000
56	59300-73R00-000	PANEL,COWL UPPER	1	Rp570.500
57	59313-73R00-000	BRACE,COWL UPPER	1	Rp33.000
58	59411-73R00-000	MEMBER,COWL SIDE OUTER,R	1	Rp301.500
59	59461-73R00-000	MEMBER,COWL SIDE OUTER,L	1	Rp301.500
60	01550-0820A-000 SUB: 01550B0820AN000	BOLT (8X20)	6	Rp5.500
61	59710-73R00-000	PANEL,COWL TOP	1	Rp436.000
