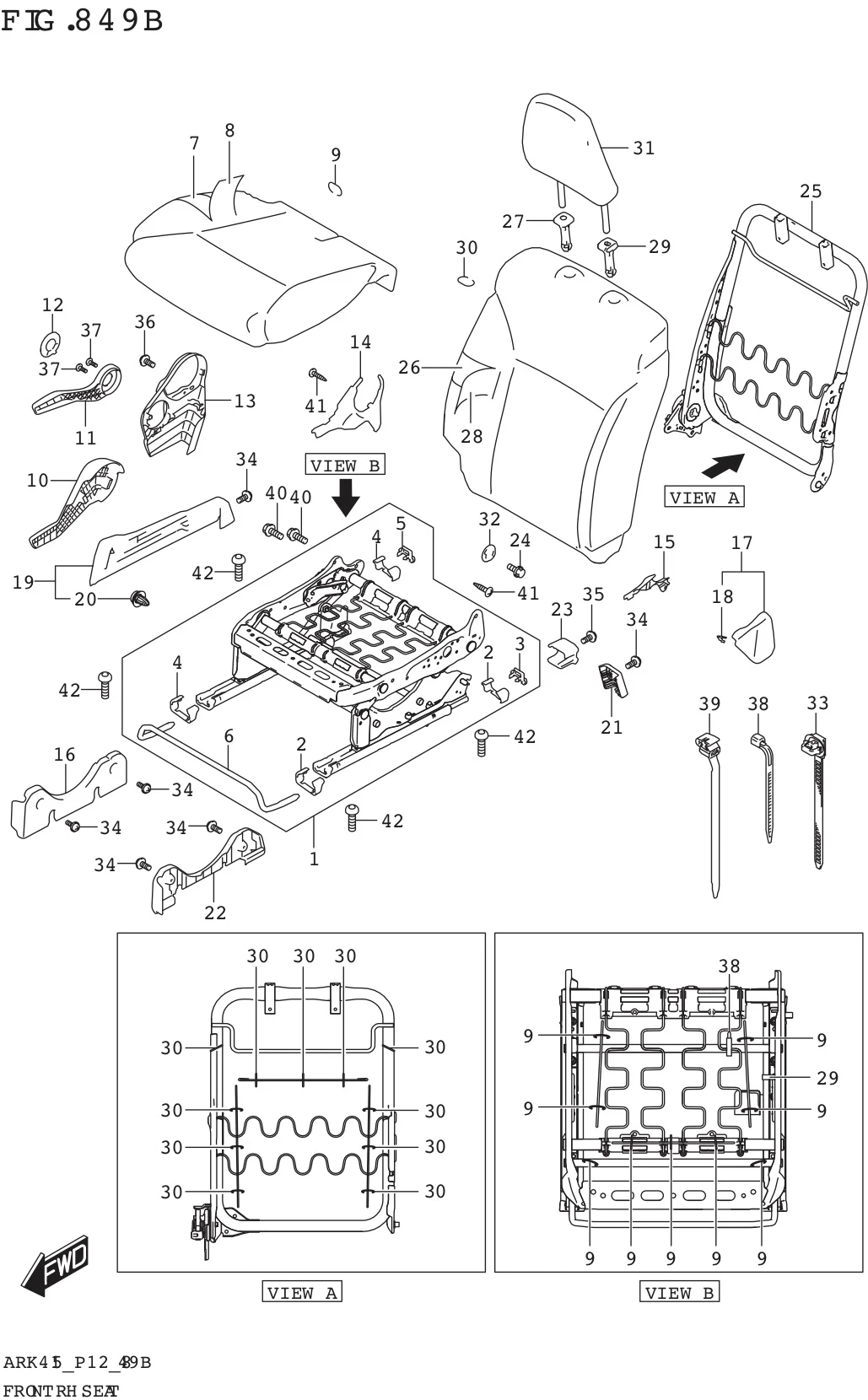

FIG. 849B FRONT RH SEAT (GX)

No	No. Part	Description	Qty	Price Per Pcs
1	85103-73R21-000 SUB: 85103-73R20-000	FRAME ASSY,FR CUSH,R	1	Rp2.694.000
2	86652M74P50-000	.CAP,FR ADJUSTER LOWER	2	Rp5.500
3	86653M74P50-000	.CAP,FR ADJUSTER UPPER	1	Rp5.500
4	86652M74P50-000	.CAP,FR ADJUSTER LOWER	2	Rp5.500
5	86653M74P50-000	.CAP,FR ADJUSTER UPPER	1	Rp5.500
6	86691-73R00-000	.HANDLE,FR SEAT ADJUSTER	1	Rp130.500
7	85160-73R00-000	PAD,FR CUSH	1	Rp346.500
8	85180-73R50-DHQ	TRIM,FR CUSH,R (BEIGE/BROWN)	1	Rp800.000
9	09387-19001-000	RING (OD:22.6)	9	Rp9.000
10	85211-62R00-V6N	KNOB,RCLNG,R (BEIGE)	1	Rp70.500
11	85213-62R20-V6N	LEVER,SEAT LIFTER,R (BEIGE)	1	Rp46.500
12	85214-68P20-V6N	CAP,LIFTER LEVER (BEIGE)	1	Rp8.500
13	85221-63R20-V6N	COVER,FR RCLNG OUT,R (BEIGE)	1	Rp22.000
14	85222-68P00-V6N	COVER,RCLNG INS LWR,R (BEIGE)	1	Rp10.000
15	85222-73R00-V6N	COVER,RCLNG INS LWR,R (BEIGE)	1	Rp86.000
16	85225-76R00-000	COVER,FR RISER OUTSIDE,R	1	Rp17.000
17	85241-68P10-V6N	COVER,FR RCLNG INS,R (BEIGE)	1	Rp10.000
18	85249M68P00-000	.CLIP	1	Rp9.500
19	85243-81P00-V6N	COVER,RISER OUTSIDE,R (BEIGE)	1	Rp24.000
20	09409-10313-000	.CLIP	1	Rp14.000
21	85244-73R00-000	COVER,FR RISER INSIDE RR,R	1	Rp8.000
22	85245-76R00-000	COVER,FR RISER INSIDE,R	1	Rp17.000
23	85280-81P00-000	COVER,FR HARNESS BRACKET	1	Rp6.500
24	85295-58J01-000	BOLT,FR BACK FIX	1	Rp34.000
25	85303-73R00-000	FRAME ASSY,FR BACK,R	1	Rp1.012.000
26	85360-73R00-000	PAD,FR BACK,R	1	Rp346.000
27	85341-73R00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp49.000
28	85380-73R10-DHQ	TRIM,FR BACK,R (BEIGE/BROWN)	1	Rp2.327.000
29	85840-73R00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp49.000
30	09387-19001-000	RING (OD:22.6)	11	Rp9.000
31	86401-73R00-DJV	HEADRESTRAINT ASSY (BEIGE)	1	Rp747.000
32	87286-81P00-000	BUSH,FR BACK FIX	1	Rp37.000
33	96619-59L00-000	CLAMP	1	Rp24.500
34	09132-04037-000	SCREW (4X10)	6	Rp15.000
35	09132-04037-000	SCREW (4X10)	1	Rp15.000
36	09132-04037-000	SCREW (4X10)	1	Rp15.000
37	09132-05064-000	SCREW (5X11)	2	Rp17.500
38	09407M14403-000	CLAMP (L:125)	1	Rp5.000
39	09407M14414-000	CLAMP (L:140)	1	Rp6.500
40	01550-1016A-000 SUB: 01550B1016AN000	BOLT (10X16)	2	Rp5.500
41	03541-0410A-000	SCREW	2	Rp11.000
42	09119-08107-000	BOLT (8X25)	4	Rp5.500
