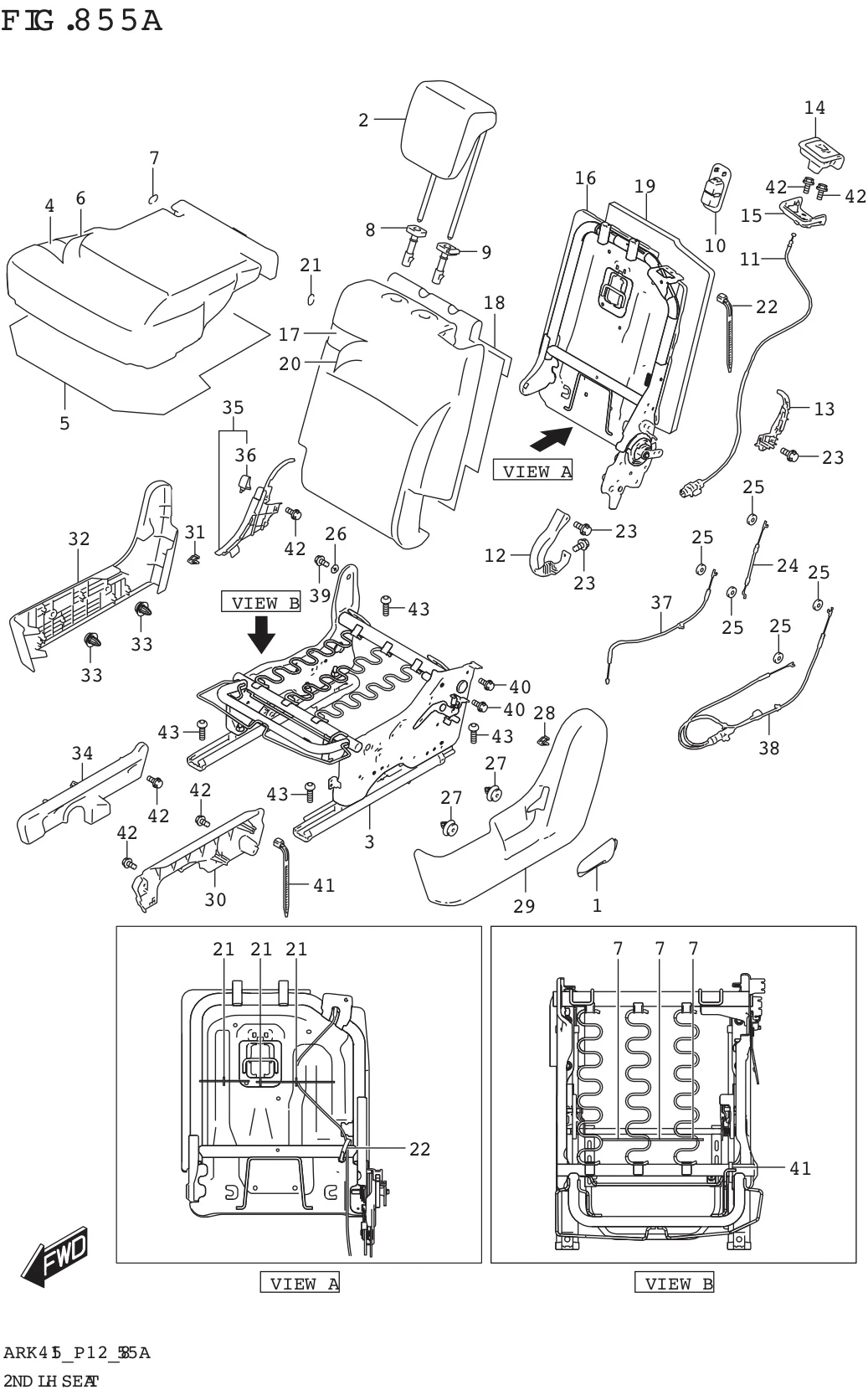

FIG. 855A 2ND LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85711-58RA0-V6N	KNOB, RECLINING LH (BEIGE)	1	Rp10.000
2-1	86401-73R10-WCV	HEADRESTRAINT ASSY,RR (BEIGE)	1	Rp407.000	GA
2-2	86401-73R10-DJV	HEADRESTRAINT ASSY,RR (BEIGE)	1	Rp786.500	GL,GX
3	87603-73R14-000 SUB: 87603-73R10-000	FRAME ASSY,RR CUSH,L	1	Rp2.001.500
4	87660-73R10-000	PAD,RR CUSH,L	1	Rp307.000
5	87669-60M00-000 SUB: 87669B60M00N000	SILENCER,RR CUSH,L	1	Rp42.000
6-1	87680-73R10-DF1	TRIM,RR CUSH,L (BEIGE)	1	Rp472.000	GA
6-2	87680-73R10-DHY	TRIM,RR CUSH,L (BEIGE)	1	Rp747.000	GL,GX
7	09387-19001-000	RING (OD:22.6)	3	Rp9.000
8	85341-58RA1-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp10.500
9	85840-73R10-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp11.000
10	87225-73R10-V6N	COVER,TETHER ANCHOR (BEIGE)	1	Rp11.000
11	87342-73R00-000	CABLE,RR BACK WALKIN	1	Rp164.000
12	87722-73R01-V6N	COVER,RCLNG OUT INR,L (BEIGE)	1	Rp12.000
13	87724-73R00-V6N	COVER,RCLNG INR LWR,L (BEIGE)	1	Rp16.000
14	87790-73R10-V6N	KNOB,WALKIN RELEASE,L (BEIGE)	1	Rp88.000
15	87798-73R00-000	GUIDE,WALKIN LEVER,L	1	Rp19.000
16	87810-73R10-000	FRAME,RR BACK,L	1	Rp1.313.500
17	87860-73R10-000	PAD,RR BACK,L	1	Rp326.000
18	87869-73R00-000	SILENCER,RR BACK,L	1	Rp6.500
19	87872-73R01-000 SUB: 87872-73R00-000	FELT,RR BACK,L	1	Rp58.000
20-1	87880-73R10-DF1	TRIM,RR BACK,L (BEIGE)	1	Rp537.500	GA
20-2	87880-73R10-DHY	TRIM,RR BACK,L (BEIGE)	1	Rp811.000	GL,GX
21	09387-19001-000	RING (OD:22.6)	3	Rp9.000
22	09407M14403-000	CLAMP (L:125)	1	Rp5.000
23	03241-0510A-000	SCREW	3	Rp8.000
24	87341-73R00-000	CABLE,RR RCLNG	1	Rp33.000
25	87371-73R00-000	WASHER,CABLE END	5	Rp5.500
26	87641-73R02-000 SUB: 87641-73R00-000	BUSH,RR HINGE	1	Rp5.500
27	87226-73R00-000	CLIP	2	Rp5.500
28	87227-73R00-000	CLIP	1	Rp5.500
29	87721-73R00-V6N	COVER,RR RCLNG OUT,L (BEIGE)	1	Rp117.000
30	87725-73R00-000 SUB: 87725-73R00-V6N	COVER,RR OUTER RISER,L (BEIGE)	1	Rp23.500
31	87227-73R00-000	CLIP	1	Rp5.500
32	87741-73R00-V6N	COVER,RCLNG INSIDE,L (BEIGE)	1	Rp122.000
33	09409-10314-000	CLIP	2	Rp17.000
34	87744-73R00-000 SUB: 87744-73R00-V6N	COVER,RR INNER RISER,L (BEIGE)	1	Rp23.000
35	87770-73R00-V6N	COVER,RCLNG INR LWR,L (BEIGE)	1	Rp30.500
36	87729-73R00-V6N	.PROTECTOR,RR RCLNG COVER,L	1	Rp105.000
37	87794-73R00-000	CABLE,RR SLIDE RELEASE,L	1	Rp57.000
38	87843-73R01-000 SUB: 87843-73R00-000	CABLE,RR WALKIN RELEASE,L	1	Rp235.500
39	88296-58R00-000	BOLT, 3RD BACK HINGE	1	Rp5.500
40	09103-10165-000	BOLT	2	Rp33.500
41	09407M14403-000	CLAMP (L:125)	1	Rp5.000
42	03241-0510A-000	SCREW	6	Rp8.000
43	87493-60M00-000	BOLT,RR MTG	4	Rp23.000
