ALL NEW ERTIGA

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANEL FIG. 572A TIRE CARRIER FIG. 580A FRONT FENDER PANEL (GA)FIG. 580B FRONT FENDER PANEL (GL)FIG. 580C FRONT FENDER PANEL (GX)FIG. 590A FRONT BODY PANEL FIG. 600A FLOOR PANEL FIG. 640A SIDE BODY PANEL FIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX)FIG. 717A FRONT BUMPER FIG. 718A REAR BUMPER FIG. 721A INSTRUMENT PANEL UPPER FIG. 722A INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B INSTRUMENT PANEL LOWER (GX)FIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX)FIG. 732A HEATER UNIT FIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL,GX:SEE NOTE)FIG. 736A HEATER DOOR (SEE NOTE)FIG. 737A EVAPORATOR UNIT (SEE NOTE)FIG. 73AA HEATER CONTROL FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL,GX)FIG. 741A FLOOR CARPET (GA)FIG. 741B FLOOR CARPET (GL)FIG. 741C FLOOR CARPET (GX)FIG. 745A INTERIOR TRIM FIG. 750A COVER/CAP FIG. 755A FUEL LID OPENER FIG. 757A ROOF SIDE PAD FIG. 760A ROOF LINING FIG. 772A MOLDING FIG. 780A EMBLEM FIG. 790A WINDSHIELD FIG. 800A FRONT DOOR PANEL (GA)FIG. 800B FRONT DOOR PANEL (GL,GX)FIG. 801A REAR DOOR PANEL (GA)FIG. 801B REAR DOOR PANEL (GL,GX)FIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX)FIG. 810A FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX)FIG. 824A BACK DOOR LOCK (GA)FIG. 824B BACK DOOR LOCK (GL)FIG. 824C BACK DOOR LOCK (GX)FIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX)FIG. 841A FRONT SEAT BELT FIG. 843A 2ND SEAT BELT FIG. 844A 3RD SEAT BELT FIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX)FIG. 854A 2ND RH SEAT FIG. 855A 2ND LH SEAT FIG. 857A 3RD RH SEAT FIG. 858A 3RD LH SEAT FIG. 865A FUEL TANK FIG. 893A TOOL FIG. 960A CONDENSER FIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX)FIG. 970A REAR A/C PIPING (GL,GX)FIG. 972A COOLING UNIT (GL,GX)FIG. 990A COMPRESSOR

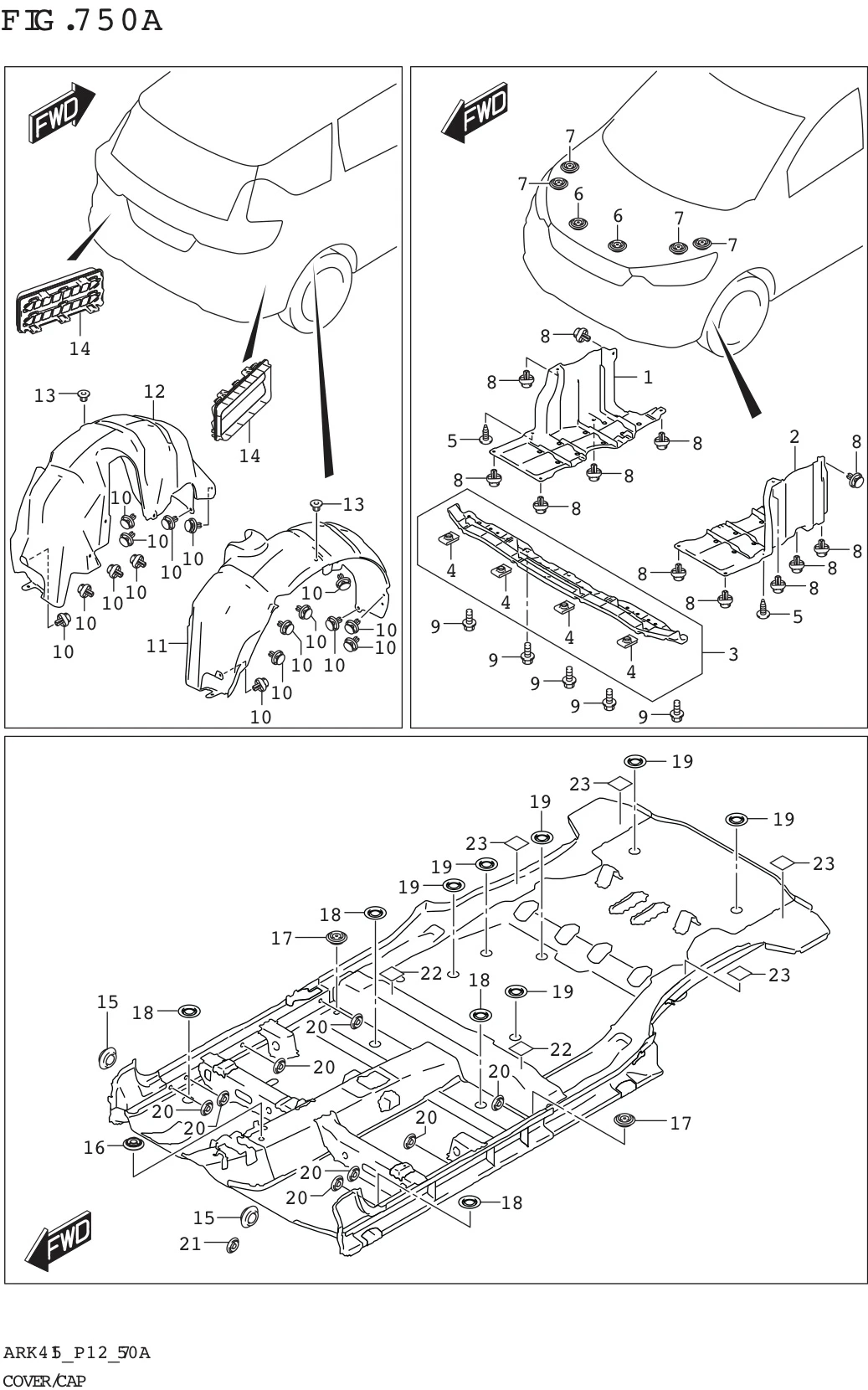

FIG. 750A COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs
1	72421-73R11-000 SUB: 72421-73R00-000	COVER,ENGINE UNDER SIDE,R	1	Rp61.500
2	72422-73R10-000 SUB: 72422-73R00-000	COVER,ENGINE UNDER SIDE,L	1	Rp61.500
3	72460-73R00-000	ABSORBER,FR BUMPER LOWER	1	Rp153.500
4	09148-05047-000 SUB: 09148B05047N000	.NUT (M5)	4	Rp3.500
5	09136-05068-000	SCREW (5X20)	2	Rp15.000
6	09250-25007-000	CAP (OD:25)	2	Rp10.500
7	09250-25007-000	CAP (OD:25)	4	Rp10.500
8	09409-07340-000	CLIP (6.8X11.5)	12	Rp17.500
9	02162-0616A-000	SCREW (6X16)	5	Rp3.000
10	09409-07340-000	CLIP (6.8X11.5)	16	Rp17.500
11	72811-73R00-000	LINING,REAR FENDER,R	1	Rp185.000
12	72821-73R00-000	LINING,REAR FENDER,L	1	Rp185.000
13	09148-05059-000	CLIP	2	Rp22.000
14	77330-73R00-000	OUTLET,VENTILATOR	2	Rp32.000
15	09250-15L02-000 SUB: 09250B15L02N000	CAP (OD:23.5)	2	Rp5.500
16	09250-15L03-000 SUB: 09250B15L03N000	CAP	1	Rp5.500
17	09250-25007-000	CAP (OD:25)	2	Rp10.500
18	75431-64L00-000	CAP,MAIN FL DRAIN	4	Rp43.000
19	75431-64L00-000	CAP,MAIN FL DRAIN	6	Rp43.000
20	09250M20031-000 SUB: 09250M20L02-000	CAP (OD:28.5)	8	Rp4.500
21	09250M20031-000 SUB: 09250M20L02-000	CAP (OD:28.5)	1	Rp4.500
22	77151-82000-000 SUB: 77151B82000N000	FILM	2	Rp7.000
23	77151-82000-000 SUB: 77151B82000N000	FILM	4	Rp7.000
