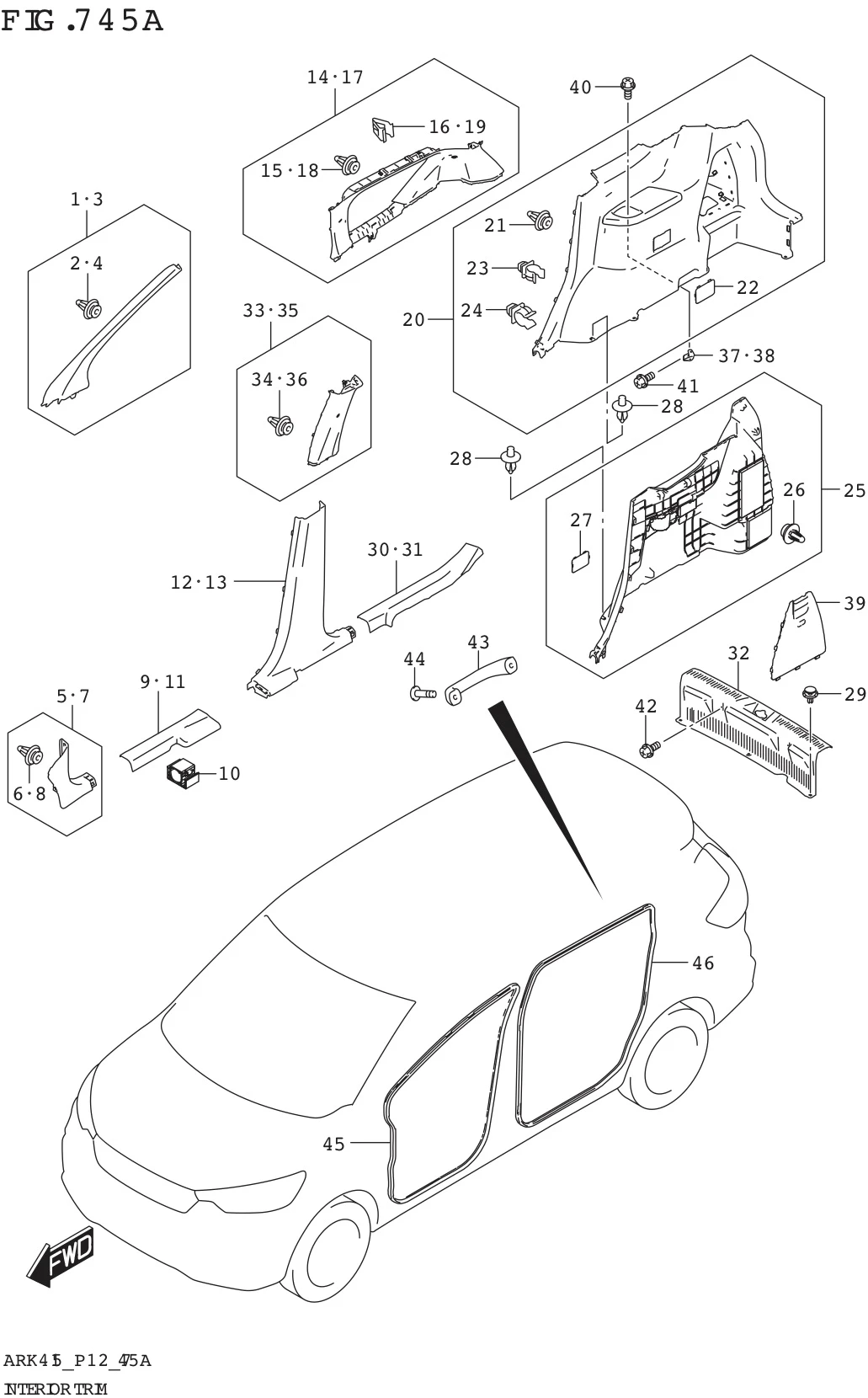

FIG. 745A INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs
1	76110-73R00-V6N	TRIM,FRONT PILLAR,R (BEIGE)	1	Rp159.500
2	09409-10314-000	.CLIP	3	Rp17.000
3	76120-73R00-V6N	TRIM,FRONT PILLAR,L (BEIGE)	1	Rp159.500
4	09409-10314-000	.CLIP	3	Rp17.000
5	76130-73R00-V6N	TRIM,DASH SIDE,R (BEIGE)	1	Rp130.500
6	76142-76G00-000 SUB: 76142B76G00N000	.CLIP,INNER	1	Rp9.500
7	76140-73R00-V6N	TRIM,DASH SIDE,L (BEIGE)	1	Rp130.500
8	76142-76G00-000 SUB: 76142B76G00N000	.CLIP,INNER	1	Rp9.500
9	76151-73R00-V6N	SCUFF,SIDE SILL FRONT,R (BEIGE)	1	Rp76.500
10	76158-71L00-000	CLAMP,SIDE SILL SCUFF	12	Rp34.500
11	76161-73R00-V6N	SCUFF,SIDE SILL FRONT,L (BEIGE)	1	Rp76.500
12	76231-73R00-V6N	TRIM,CTR PILLAR LOWER,R (BEIGE)	1	Rp177.500
13	76241-73R00-V6N	TRIM,CTR PILLAR LOWER,L (BEIGE)	1	Rp177.500
14	76250-73R00-V6N	TRIM,QUARTER UPPER,R (BEIGE)	1	Rp311.500
15	09409-10327-000	.CLIP	5	Rp5.000
16	09409-07335-000	.CLIP	2	Rp17.500
17	76260-73R00-V6N	TRIM,QUARTER UPPER,L (BEIGE)	1	Rp311.500
18	09409-10327-000	.CLIP	5	Rp5.000
19	09409-07335-000	.CLIP	2	Rp17.500
20	76270-73R00-V6N	TRIM,QUARTER LOWER,R (BEIGE)	1	Rp798.000
21	09409-10327-000	.CLIP	6	Rp5.000
22	76273-73R00-V6N	.CAP,QUARTER LOWER TRIM,R (BEIGE)	1	Rp18.500
23	09403-08326-000	.CLAMP (D:8)	2	Rp19.500
24	09403-13317-000	.CLAMP	2	Rp9.000
25	76280-73R00-V6N	TRIM,QUARTER LOWER,L (BEIGE)	1	Rp798.000
26	09409-10327-000	.CLIP	6	Rp5.000
27	76283-73R00-V6N	.CAP,QUARTER LOWER TRIM,L (BEIGE)	1	Rp18.500
28	09409-07330-V6N	CLIP,QUARTER LOWER TRIM (BEIGE)	4	Rp11.000
29	09409-07340-V6N	CLIP (BEIGE)	3	Rp23.000
30	76171-73R00-V6N	SCUFF,SIDE SILL REAR,R (BEIGE)	1	Rp88.500
31	76181-73R00-V6N	SCUFF,SIDE SILL REAR,L (BEIGE)	1	Rp88.500
32	76190-73R10-V6N	TRIM,TAIL END (BEIGE)	1	Rp104.500
33	76210-73R00-V6N	TRIM,CTR PILLAR UPPER,R (BEIGE)	1	Rp125.000
34	76142-76G00-000 SUB: 76142B76G00N000	.CLIP,INNER	1	Rp9.500
35	76220-73R00-V6N	TRIM,CTR PILLAR UPPER,L (BEIGE)	1	Rp125.000
36	76142-76G00-000 SUB: 76142B76G00N000	.CLIP,INNER	1	Rp9.500
37	76279-73R00-000	BRACKET,QTR LWR TRIM ARMREST,R	1	Rp14.000
38	76289-73R00-000	BRACKET,QTR LWR TRIM ARMREST,L	1	Rp14.000
39	76310-73R00-V6N	LID,JACK (BEIGE)	1	Rp49.000
40	02142-0612A-000	SCREW	2	Rp4.000
41	02162-0612A-000	SCREW (6X12)	2	Rp11.000
42	02162-0612A-000	SCREW (6X12)	2	Rp11.000
43	76411M79F00-V6N	GRIP, ASSISTANT (BEIGE)	3	Rp15.000
44	09139-06104-000	SCREW (6X26)	6	Rp22.500
45	76291-73R00-000	TRIM,FRONT DOOR OPENING	2	Rp186.000
46	76295-73R00-000	TRIM,REAR DOOR OPENING	2	Rp200.500
