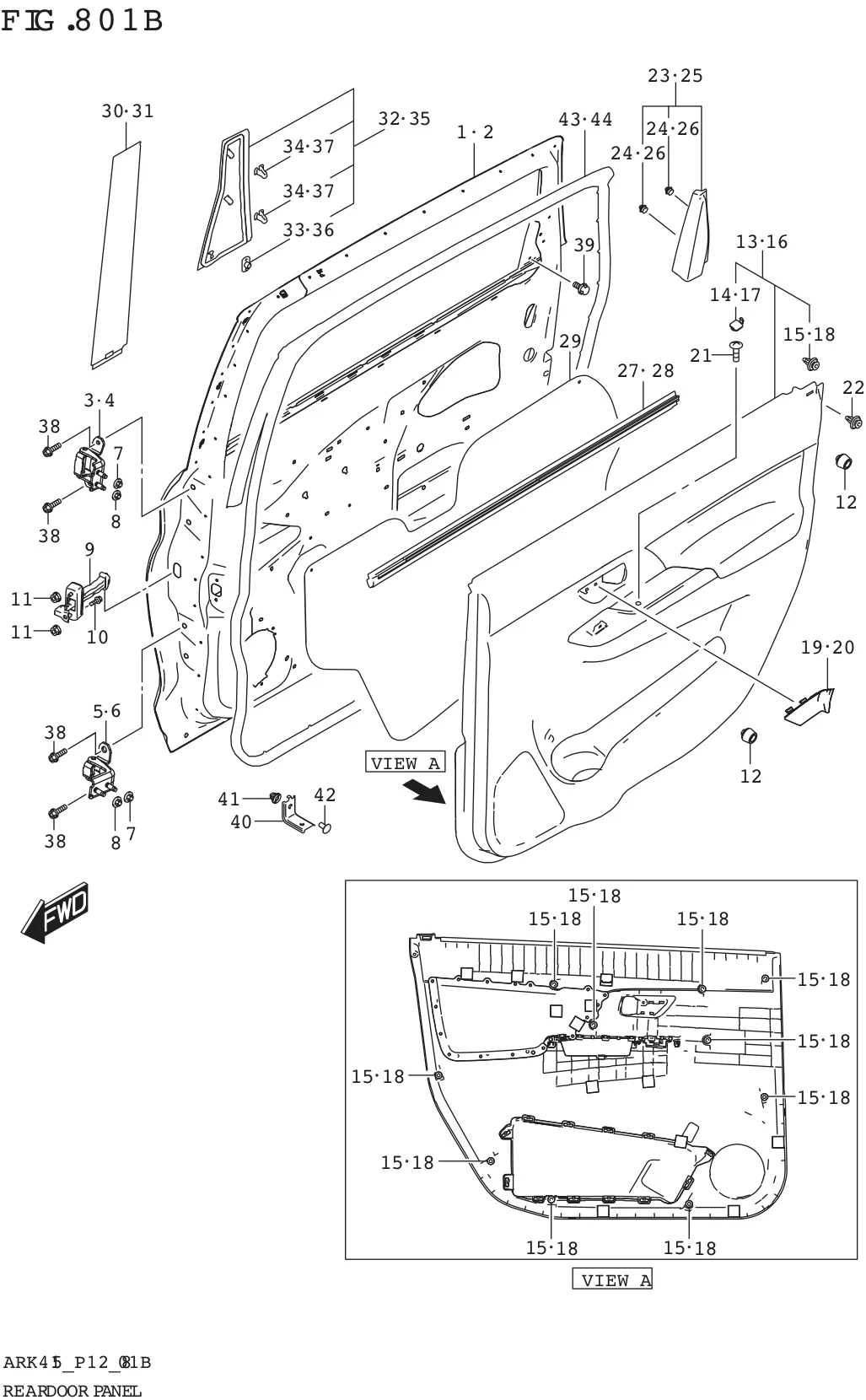

FIG. 801B REAR DOOR PANEL (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68003-73R02-000 SUB: 68003-73R00-000	PANEL ASSY,RR DR,R	1	Rp3.283.000	GL,GX
2	68004-73R02-000 SUB: 68004-73R00-000	PANEL ASSY,RR DR,L	1	Rp3.283.000	GL,GX
3	69410M68L00-000 SUB: 69410-68LB0-000	HINGE,REAR DOOR UPPER,R	1	Rp73.500	GL,GX
4	69420M68L00-000 SUB: 69420-68LB0-000	HINGE,REAR DOOR UPPER,L	1	Rp73.500	GL,GX
5	69430M72R00-000 SUB: 69430-73R00-000	HINGE,RR DR LWR,R	1	Rp83.000	GL,GX
6	69440M72R00-000 SUB: 69440-73R00-000	HINGE,RR DR LWR,L	1	Rp83.000	GL,GX
7	09159-08132-000	NUT (M8)	4	Rp19.500	GL,GX
8	08361-2508A-000	NUT	4	Rp16.500	GL,GX
9	81830-73RA3-000 SUB: 81830-73RA0-000	STOP,REAR DOOR OPEN	2	Rp85.000	GL,GX
10	09112-08015-000	BOLT (8X25)	2	Rp32.000	GL,GX
11	08316-1006A-000	NUT (6X12)	4	Rp2.000	GL,GX
12	82711-51K00-000	CUSHION	4	Rp39.000	GL,GX
13-2	83730-73R10-DEU	TRIM,RR DR,R (BEIGE)	1	Rp1.213.000	GX
13-1	83730-73R00-V6N	TRIM,RR DR,R (BEIGE)	1	Rp977.000	GL
14	83752-80J00-V6N	.CAP,DR INS PULL CASE (BEIGE)	1	Rp58.000	GL,GX
15	09409-10327-000	.CLIP	10	Rp5.000	GL,GX
16-1	83740-73R00-V6N	TRIM,RR DR,L (BEIGE)	1	Rp977.000	GL
16-2	83740-73R10-DEU	TRIM,RR DR,L (BEIGE)	1	Rp1.213.000	GX
17	83752-80J00-V6N	.CAP,DR INS PULL CASE (BEIGE)	1	Rp58.000	GL,GX
18	09409-10327-000	.CLIP	10	Rp5.000	GL,GX
19	83755-74L00-V6N SUB: 83755B74L00NV6N	CAP,INSIDE HDL BEZEL,R (BEIGE)	1	Rp86.500	GL,GX
20	83756-74L00-V6N SUB: 83756B74L00NV6N	CAP,INSIDE HDL BEZEL,L (BEIGE)	1	Rp85.500	GL,GX
21	09132-05058-000	SCREW (5X12)	2	Rp14.000	GL,GX
22	09409-06314-V6N	CLIP (BEIGE)	2	Rp19.500	GL,GX
23	83780-73R00-5PK	GARNISH,RR DR INNER,R (BLACK)	1	Rp112.000	GL,GX
24	09409-06339-000	.CLIP,RR DR INNER GARNISH	2	Rp18.000	GL,GX
25	83790-73R00-5PK	GARNISH,RR DR INNER,L (BLACK)	1	Rp112.000	GL,GX
26	09409-06339-000	.CLIP,RR DR INNER GARNISH	2	Rp18.000	GL,GX
27	83871-73R00-000	WEATHERSTRIP,RR DR INNER,R	1	Rp69.000	GL,GX
28	83881-73R00-000	WEATHERSTRIP,RR DR INNER,L	1	Rp69.000	GL,GX
29	83913-73R00-000	COVER,RR DR SEALING	2	Rp10.000	GL,GX
30	83931-73R00-0CB	TAPE,RR DR OUTER FR,R (BLACK)	1	Rp33.500	GL,GX
31	83932-73R00-0CB	TAPE,RR DR OUTER FR,L (BLACK)	1	Rp33.500	GL,GX
32	83970-73R00-000	GARNISH,RR DR RR OUTER,R	1	Rp93.500	GL,GX
33	09146M06003-000	.NUT	1	Rp7.500	GL,GX
34	09409-06324-000 SUB: 09409B06324N000	.CLIP	2	Rp13.500	GL,GX
35	83980-73R00-000	GARNISH,RR DR RR OUTER,L	1	Rp93.500	GL,GX
36	09146M06003-000	.NUT	1	Rp7.500	GL,GX
37	09409-06324-000 SUB: 09409B06324N000	.CLIP	2	Rp13.500	GL,GX
38	09103-08546-000	BOLT (8X24)	8	Rp26.500	GL,GX
39	02162-0612A-000	SCREW (6X12)	2	Rp11.000	GL,GX
40	83751-67P00-000	BRACKET,DR TRIM	2	Rp11.500	GL,GX
41	71851M70F00-000	NUT (M6)	2	Rp4.000	GL,GX
42	03241M0612A-000	SCREW	2	Rp6.500	GL,GX
43	84661-73R00-000	WEATHERSTRIP,RR DR OPNG,R	1	Rp191.000	GL,GX
44	84671-73R00-000	WEATHERSTRIP,RR DR OPNG,L	1	Rp191.000	GL,GX
