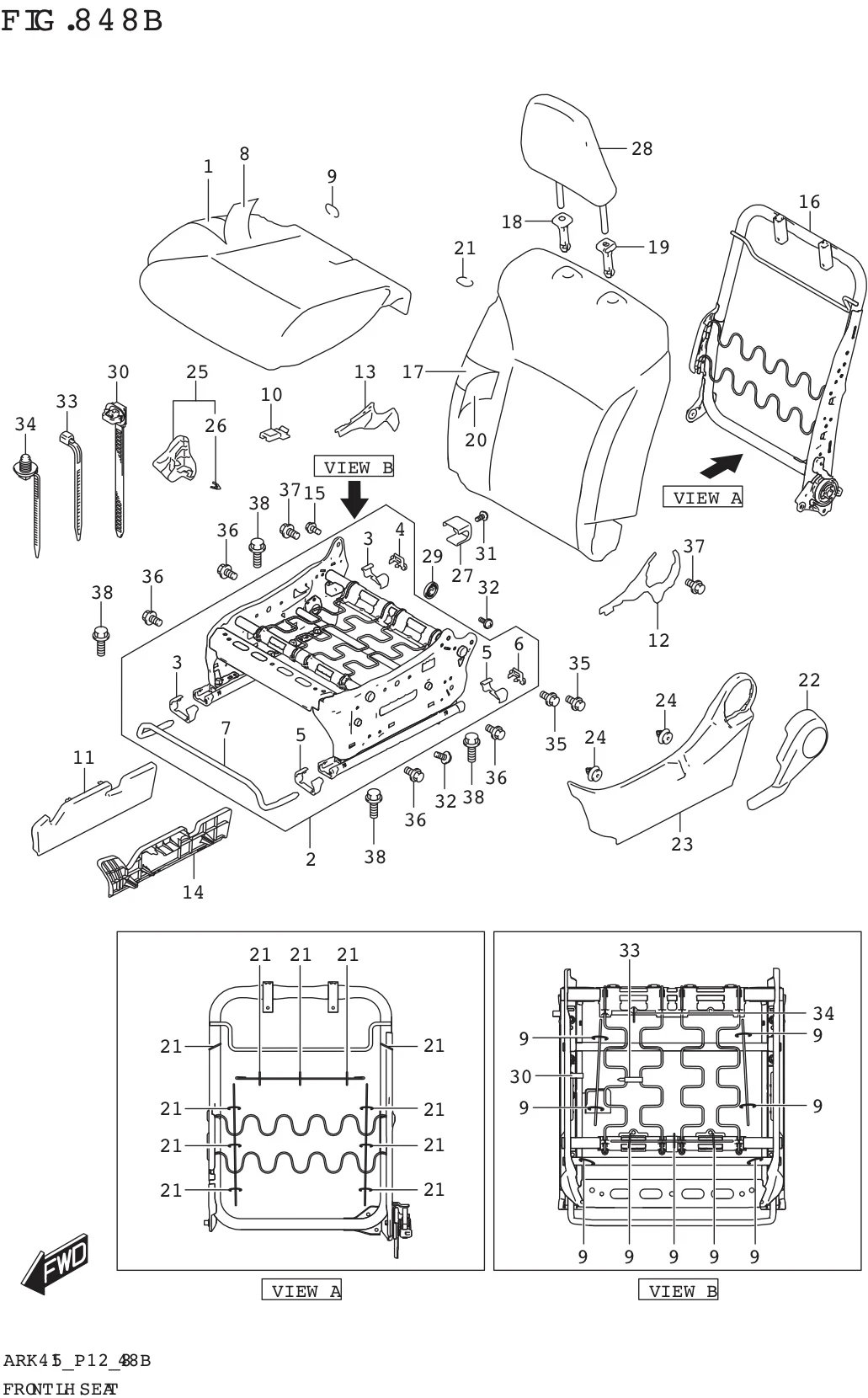

FIG. 848B FRONT LH SEAT (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs
1	85107-73R00-000	PAD S/ASSY,FR CUSH	1	Rp495.000
2	85603-73R10-000	FRAME ASSY,FR CUSH,L	1	Rp2.561.500
3	86652M74P50-000	.CAP,FR ADJUSTER LOWER	2	Rp5.500
4	86653M74P50-000	.CAP,FR ADJUSTER UPPER	1	Rp5.500
5	86652M74P50-000	.CAP,FR ADJUSTER LOWER	2	Rp5.500
6	86653M74P50-000	.CAP,FR ADJUSTER UPPER	1	Rp5.500
7	86691-73R00-000	.HANDLE,FR SEAT ADJUSTER	1	Rp130.500
8	85680-73R00-DHQ	TRIM,FR CUSH,L (BEIGE/BROWN)	1	Rp655.500
9	09387-19001-000	RING (OD:22.6)	9	Rp9.000
10	85192-74P00-000	HOLDER,HARNESS	1	Rp6.500
11	85223-73R00-000	COVER,FR RISER,R	1	Rp19.000
12	85242-68P00-V6N	COVER,RCLNG INS LWR,L (BEIGE)	1	Rp10.000
13	85242-73R00-V6N	COVER,RCLNG INS LWR,L (BEIGE)	1	Rp88.000
14	85243-73R00-000	COVER,FR RISER,L	1	Rp20.500
15	85295-58J01-000	BOLT,FR BACK FIX	1	Rp34.000
16	85803-73R00-000	FRAME ASSY,FR BACK,L	1	Rp1.012.000
17	85860-73R00-000	PAD,FR BACK,L	1	Rp346.000
18	85341-73R00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp49.000
19	85840-73R00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp49.000
20	85880-73R10-DHQ	TRIM,FR BACK,L (BEIGE/BROWN)	1	Rp2.327.000
21	09387-19001-000	RING (OD:22.6)	11	Rp9.000
22	85711-62R00-V6N	KNOB,RCLNG,L (BEIGE)	1	Rp70.500
23	85721-73R00-V6N	COVER,FR RCLNG OUT,R (BEIGE)	1	Rp111.000
24	09409-10313-000	CLIP	2	Rp14.000
25	85741-68P10-V6N	COVER,RCLNG INSIDE,L (BEIGE)	1	Rp10.000
26	85249M68P00-000	.CLIP	1	Rp9.500
27	85780-81P00-000	COVER,FR HARNESS BRACKET,L	1	Rp6.500
28	86401-73R00-DJV	HEADRESTRAINT ASSY (BEIGE)	1	Rp747.000
29	87286-81P00-000	BUSH,FR BACK FIX	1	Rp37.000
30	96619-59L00-000	CLAMP	1	Rp24.500
31	09132-04037-000	SCREW (4X10)	1	Rp15.000
32	09132-04037-000	SCREW (4X10)	1	Rp15.000
33	09407M14403-000	CLAMP (L:125)	1	Rp5.000
34	09407-17403-000	CLAMP (L:170)	1	Rp3.500
35	01550-1016A-000 SUB: 01550B1016AN000	BOLT (10X16)	2	Rp5.500
36	03541-0410A-000	SCREW	4	Rp11.000
37	03541-0410A-000	SCREW	2	Rp11.000
38	09119-08107-000	BOLT (8X25)	4	Rp5.500
