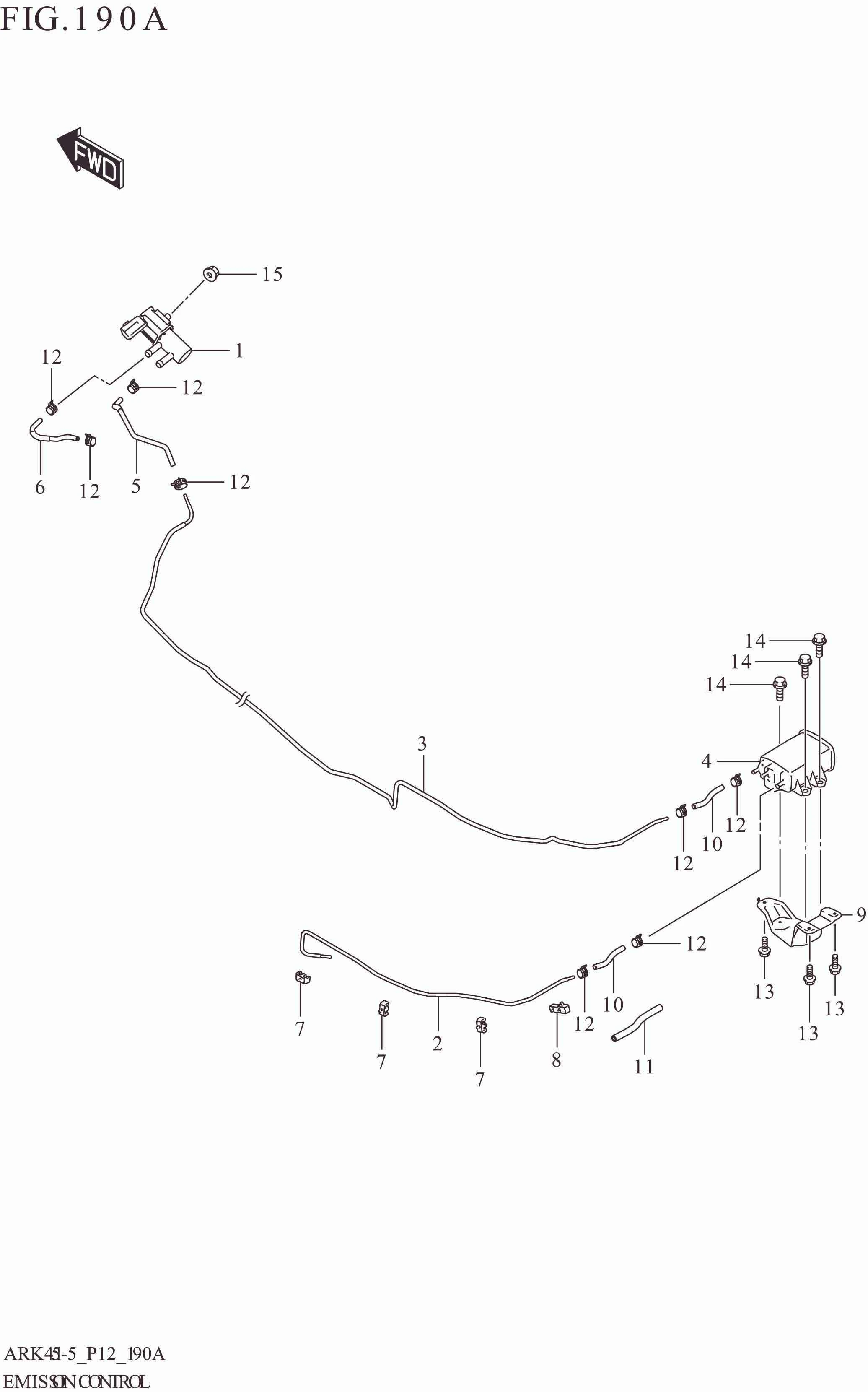

190A EMISSION CONTROL

190A EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114-68M00-000 VALVE,CANISTER PURGE 1 Rp1.016.000
2 18351-73R00-000 PIPE,EVAP 1 Rp65.500
3 18352-73R00-000 PIPE,PURGE 1 Rp245.500
4 18560-73R00-000 CANISTER 1 Rp300.500
5 18561M55R00-000 HOSE,PURGE 1 Rp45.500
6 18564M66R00-000 HOSE,PURGE 1 Rp53.000
7 18568-73R00-000 CLAMP,EVAP PIPE 3 Rp8.500
8 18569-73R00-000 CLAMP,EVAP PIPE 1 Rp9.000
9 18570-73R00-000 BRACKET,CANISTER 1 Rp55.500
10 09355-70130-160 HOSE,CANISTER AIR SUCTION 1 Rp15.000
11 09355-56L02-160 HOSE (5.6X12.4X160) 2 Rp17.000
12 09401-11004-000 CLIP 8 Rp20.500
13 01550-0616C-000 BOLT (6X16) 3 Rp3.500
14 01550-0616C-000 BOLT (6X16) 3 Rp3.500
15 08316-1006A-000 NUT (6X12) 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
