All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

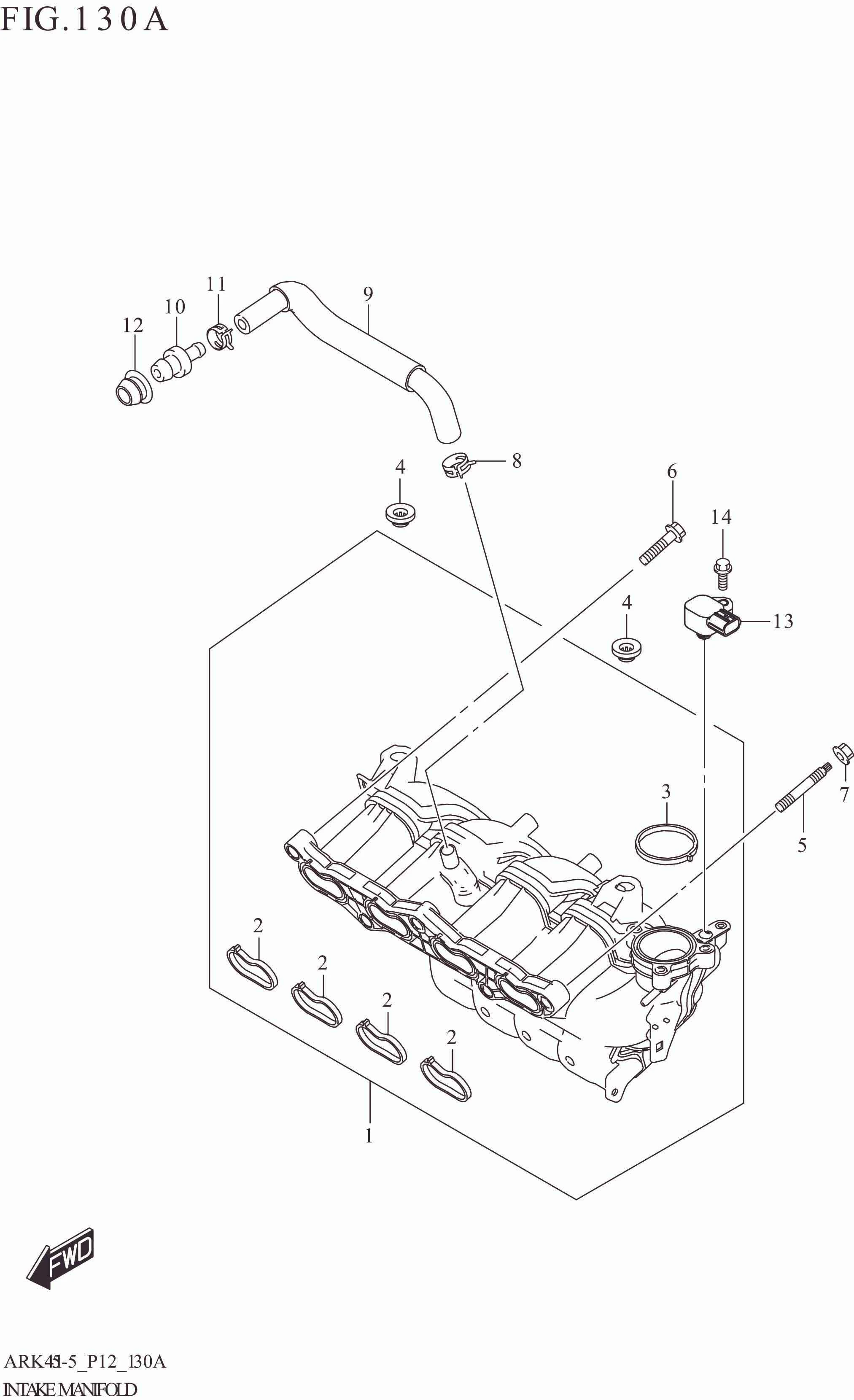

130A INTAKE MANIFOLD

130A INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110-73R00-000 MANIFOLD,INTK 1 Rp532.000
2 13118-67LB0-000 .GASKET, INTK MANF 4 Rp10.500
3 13421-67LB0-000 .GASKET,THROTTLE BODY 1 Rp15.000
4 13723M84MB0-000 GROMMET 2 Rp6.500
5 01421-0835A-000 BOLT,STUD 2 Rp13.500
6 01550-0835A-000 BOLT (8X35) 3 Rp3.500
7 08316-1008A-000 NUT 2 Rp3.500
8 09401-15414-000 CLIP 1 Rp19.000
9 11193-73R00-000 HOSE,PCV 1 Rp19.000
10 18118-60M00-000 VALVE,PCV 1 Rp177.000
11 09401-13423-000 CLIP 1 Rp24.000
12 11198M79F00-000 SEAL,PCV VALVE 1 Rp16.500
13 18590-73R00-000 SENSOR ASSY,PRESSURE 1 Rp139.000
14 09132-05066-000 SCREW 1 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
