All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

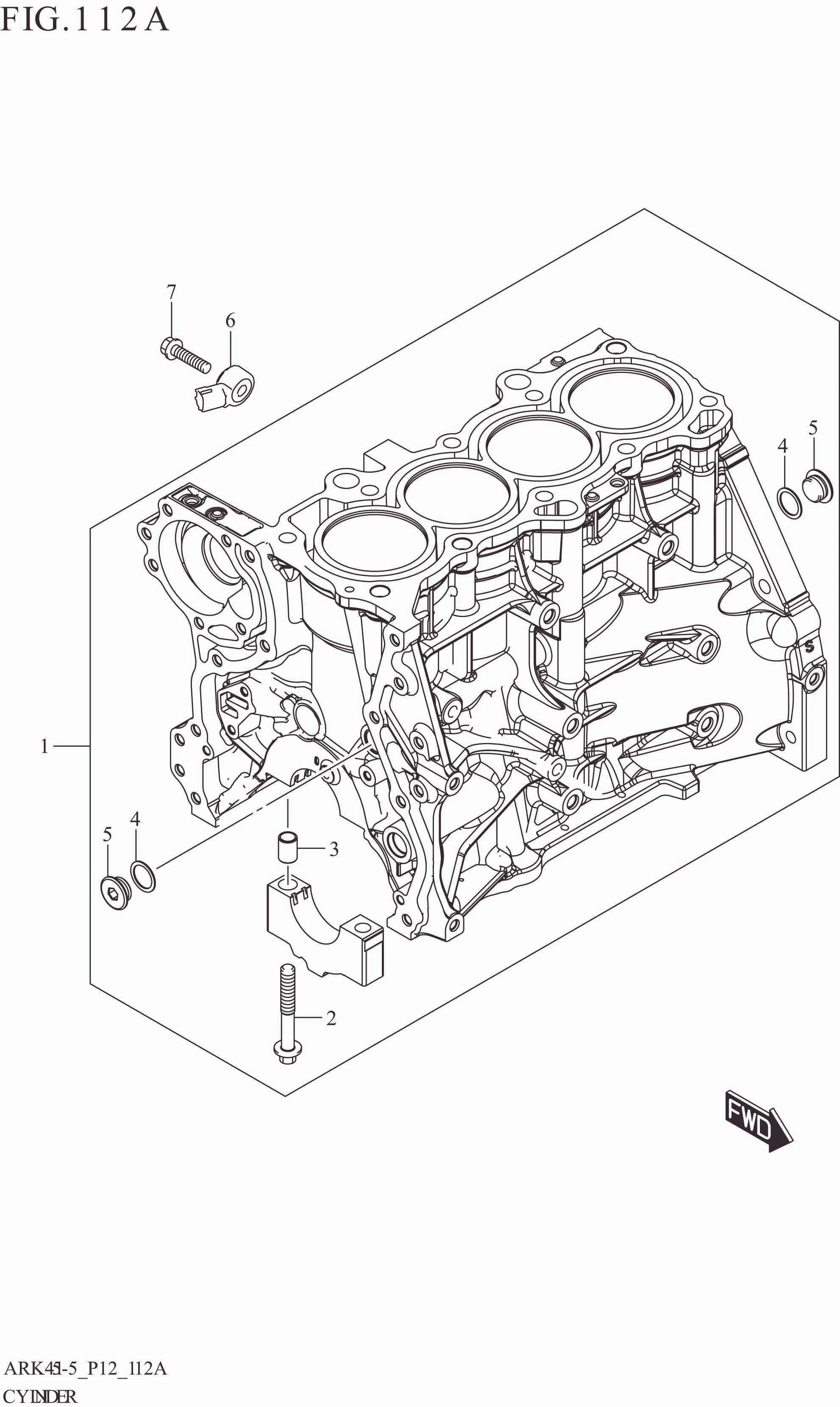

112A CYLINDER

112A CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200-73R00-X12 BLOCK ASSY,CYLINDER 1 Rp7.944.500
2 11261-69J01-000 .BOLT,CRANK BEARING CAP 10 Rp37.000
3 04211M13189-000 .PIN (10.4X13X18) 10 Rp9.000
4 11216-67LB0-000 .GASKET,PLUG (M18) 2 Rp7.000
5 09248-18011-000 .PLUG (18X8) 2 Rp38.000
6 18640-73R00-000 SENSOR ASSY,KNOCK 1 Rp75.500
7 01550-0835A-000 BOLT (8X35) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
