All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

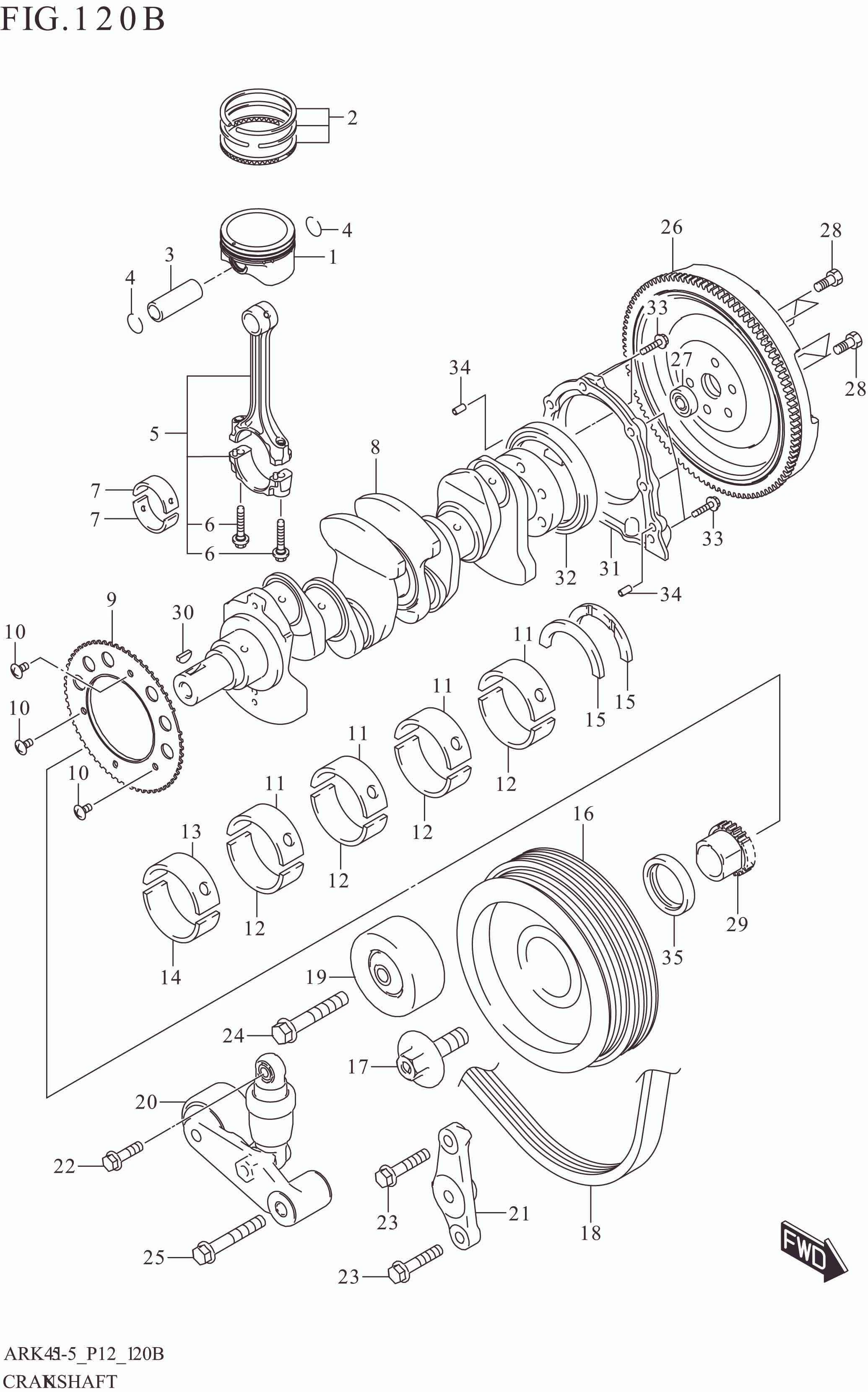

120B CRANKSHAFT (W_EASS)

120B CRANKSHAFT (W_EASS)
No No. Part Description Qty Price Per Pcs Remarks
1 12111-73R00-000 PISTON 4 Rp101.000
2 12140-73R00-000 RING SET,PISTON 4 Rp81.500
3 12151-71L00-0C0 PIN,PISTON 4 Rp49.000
4 09381-18002-000 CIRCLIP (OD:20.5) 8 Rp2.500
5 12160-73R00-000 CONNROD ASSY 4 Rp291.500
6 12163-69J00-000 .BOLT,CONNROD 8 Rp25.500
7-5 12181-77M00-0E0 BEARING,CONNROD BLUE (STD,T:1.5) 8 Rp46.000 COLOR:BLUE
7-6 12181-77M00-025 BEARING,CONNROD RED (US:0.25,T:1.625) 8 Rp45.000
7-4 12181-77M00-0D0 BEARING,CONNROD YELLOW (STD,T:1.5) 8 Rp45.000 COLOR:YELLOW
7-3 12181-77M00-0C0 BEARING,CONNROD NON (STD,T:1.5) 8 Rp45.000 COLOR:NON
7-2 12181-77M00-0B0 BEARING,CONNROD BLACK (STD,T:1.5) 8 Rp45.000 COLOR:BLACK
7-1 12181-77M00-0A0 BEARING,CONNROD GREEN (STD,T:1.5) 8 Rp45.000 COLOR:GREEN
8 12221-73R00-000 CRANKSHAFT 1 Rp3.691.000
9 12222-73R00-000 PLATE,SENSOR 1 Rp39.000
10 12223-69G00-000 SCREW,SENSOR PLATE 6X10 (6X10) 3 Rp13.500
11-6 12341-77M00-0AA BEARING,CRANK UPR RED/PINK (US:0.25,T:2.125) 4 Rp26.500
11-10 12341-77M00-0EA BEARING,CRANK UPR RED/BLACK (US:0.25,T:2.125) 4 Rp26.500
11-9 12341-77M00-0DA BEARING,CRANK UPR RED/GREEN (US:0.25,T:2.125) 4 Rp27.000
11-8 12341-77M00-0CA BEARING,CRANK UPR RED/BROWN (US:0.25,T:2.125) 4 Rp26.500
11-7 12341-77M00-0BA BEARING,CRANK UPR RED/PURPLE (US:0.25,T:2.125) 4 Rp26.500
11-5 12341-77M00-0E0 BEARING,CRANK UPR BLACK (STD,T:2.0) 4 Rp26.500 COLOR:BLACK
11-4 12341-77M00-0D0 BEARING,CRANK UPR GREEN (STD,T:2.0) 4 Rp26.500 COLOR:GREEN
11-3 12341-77M00-0C0 BEARING,CRANK UPR BROWN (STD,T:2.0) 4 Rp26.500 COLOR:BROWN
11-2 12341-77M00-0B0 BEARING,CRANK UPR PURPLE (STD,T:2.0) 4 Rp26.500 COLOR:PURPLE
11-1 12341-77M00-0A0 BEARING,CRANK UPR PINK (STD,T:2.0) 4 Rp26.500 COLOR:PINK
12-6 12345-77M00-0AA BEARING,CRANK LWR RED/PINK (US:0.25,T:2.125) 4 Rp26.500
12-10 12345-77M00-0EA BEARING,CRANK LWR RED/BLACK (US:0.25,T:2.125) 4 Rp26.500
12-9 12345-77M00-0DA BEARING,CRANK LWR RED/GREEN (US:0.25,T:2.125) 4 Rp27.000
12-8 12345-77M00-0CA BEARING,CRANK LWR RED/BROWN (US:0.25,T:2.125) 4 Rp26.500
12-7 12345-77M00-0BA BEARING,CRANK LWR RED/PURPLE (US:0.25,T:2.125) 4 Rp26.500
12-5 12345-77M00-0E0 BEARING,CRANK LWR BLACK (STD,T:2.0) 4 Rp26.500
12-4 12345-77M00-0D0 BEARING,CRANK LWR GREEN (STD,T:2.0) 4 Rp26.500
12-3 12345-77M00-0C0 BEARING,CRANK LWR BROWN (STD,T:2.0) 4 Rp26.500
12-2 12345-77M00-0B0 BEARING,CRANK LWR PURPLE (STD,T:2.0) 4 Rp26.500
12-1 12345-77M00-0A0 BEARING,CRANK LWR PINK (STD,T:2.0) 4 Rp26.500
13-4 12341-85K10-0Y0 BEARING,CRANK UPR PURPLE (STD,T:2.0) 1 Rp140.500
13-10 12341-85K10-0ZA BEARING,CRANK UPR RED/BROWN (US:0.25,T:2.125) 1 Rp144.000
13-9 12341-85K10-0YA BEARING,CRANK UPR RED/PURPLE (US:0.25,T:2.125) 1 Rp144.000
13-8 12341-85K10-0CA BEARING,CRANK UPR RED (US:0.25,T:2.125) 1 Rp139.000
13-7 12341-85K10-0BA BEARING,CRANK UPR RED/BLACK (US:0.25,T:2.125) 1 Rp144.000
13-5 12341-85K10-0Z0 BEARING,CRANK UPR BROWN (STD,T:2.0) 1 Rp140.500
13-6 12341-85K10-0AA BEARING,CRANK UPR RED/GREEN (US:0.25,T:2.125) 1 Rp133.000
13-1 12341-85K10-0A0 BEARING,CRANK UPR GREEN (STD,T:2.0) 1 Rp129.000
13-2 12341-85K10-0B0 BEARING,CRANK UPR BLACK (STD,T:2.0) 1 Rp142.500
13-3 12341-85K10-0C0 BEARING,CRANK UPR NON (STD,T:2.0) 1 Rp136.500
14-1 12345-85K00-0A0 BEARING,CRANK LWR GREEN (STD,T:2.0) 1 Rp71.500
14-2 12345-85K00-0B0 BEARING,CRANK LWR BLACK (STD,T:2.0) 1 Rp74.500
14-3 12345-85K00-0C0 BEARING,CRANK LWR NON (STD,T:2.0) 1 Rp71.500
14-4 12345-85K00-0Y0 BEARING,CRANK LWR PURPLE (STD,T:2.0) 1 Rp77.000
14-5 12345-85K00-0Z0 BEARING,CRANK LWR BROWN (STD,T:2.0) 1 Rp77.000
14-6 12345-85K00-0AA BEARING,CRANK LWR RED/GREEN (US:0.25,T:2.125) 1 Rp73.000
14-7 12345-85K00-0BA BEARING,CRANK LWR RED/BLACK (US:0.25,T:2.125) 1 Rp79.000
14-8 12345-85K00-0CA BEARING,CRANK LWR RED (US:0.25,T:2.125) 1 Rp73.000
14-9 12345-85K00-0YA BEARING,CRANK LWR RED/PURPLE (US:0.25,T:2.125) 1 Rp79.000
14-10 12345-85K00-0ZA BEARING,CRANK LWR RED/BROWN (US:0.25,T:2.125) 1 Rp79.000
15-1 12351-77M00-000 BEARING,CRANK THRUST (STD,T:2.5) 2 Rp17.500
15-2 12351-77M00-012 BEARING,CRANK THRUST (US:0.125,T:2.563) 2 Rp43.500
16 12610-81P10-000 PULLEY,CRANKSHAFT 1 Rp1.130.500
17 12619-67LA0-000 BOLT,CRANK PULLEY (12X37) 1 Rp54.000
18 17521-72RB0-000 BELT,WATER PUMP (7PK970) 1 Rp375.000
19 17530-68PB1-000
SUB: 17530-68PB0-000		 PULLEY,BELT 1 Rp668.500
20 17540-72RA0-000 TENSIONER ASSY,GEN BELT 1 Rp815.500
21 17541-72RA0-000 BRACKET,BELT TENSIONER 1 Rp131.000
22 01550-0830A-000 BOLT (8X30) 1 Rp4.000
23 01550-0840A-000 BOLT (8X40) 2 Rp3.500
24 01550-1060A-000 BOLT (10X60) 1 Rp5.500
25 01550M1065A-000 BOLT (10X65) 1 Rp16.500
26 12620-73R00-000 FLYWHEEL 1 Rp1.025.000 5MT
27 12623-61J00-000 BEARING,INPUT SHAFT 1 Rp39.500 5MT
28 09103-10440-000 BOLT (10X18.5) 6 Rp33.000 5MT
29 12631-54GA1-000 SPROCKET,CRANKSHAFT TIMING 1 Rp171.500
30 08341M31059-000 KEY 1 Rp4.500
31 11341M51K00-000 HOUSING,OIL SEAL 1 Rp73.000
32 11342-67LD0-000 SEAL CRANKSHAFT REAR OIL 1 Rp70.000
33 09103-06282-000 BOLT (6X25) 6 Rp16.500
34 04221-06129-000 PIN (6X12) 2 Rp12.500
35 16141-73R00-000 SEAL,CRANKSHAFT FRONT OIL 1 Rp52.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
