All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

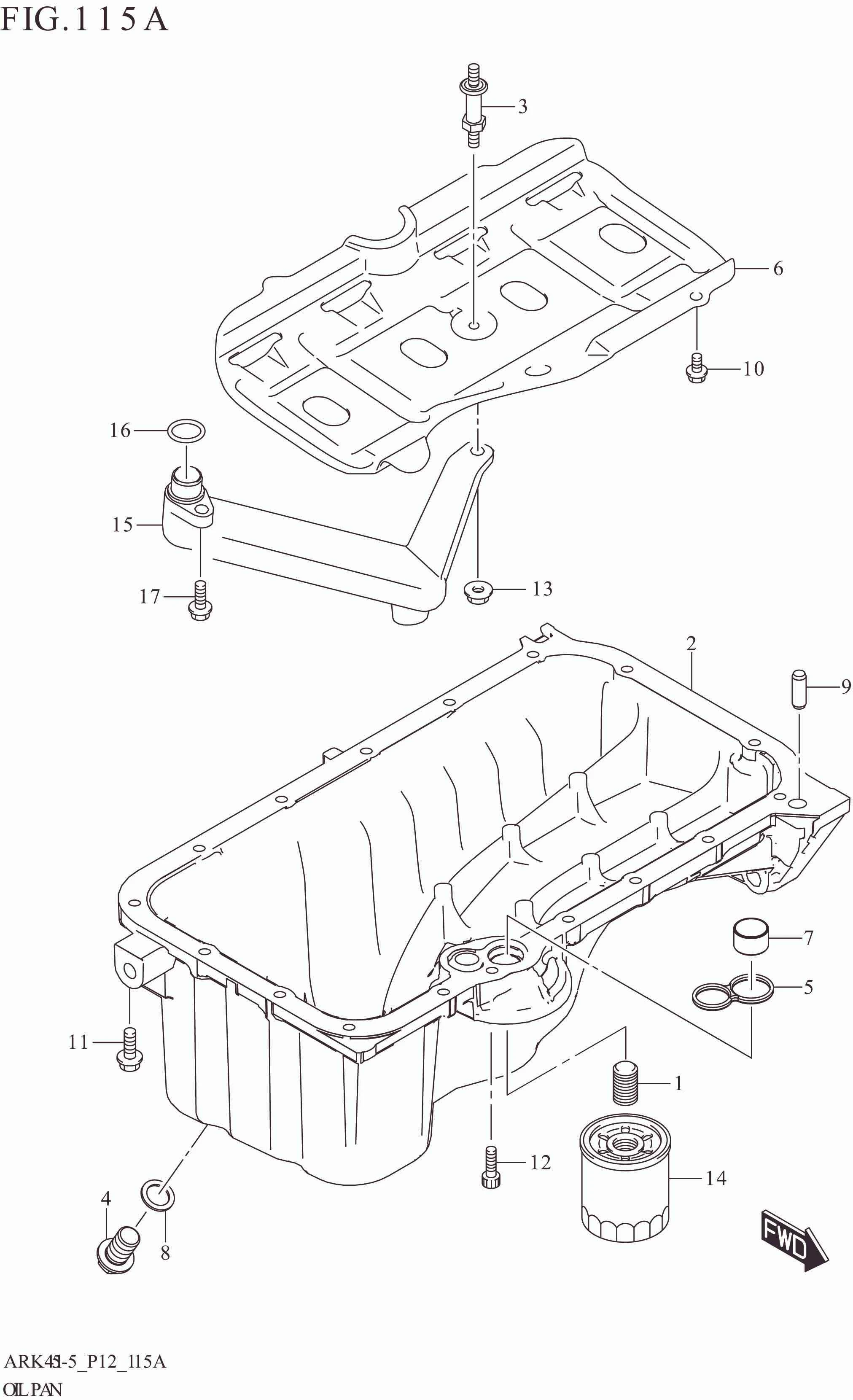

115A OIL PAN

115A OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11241-68K00-000 STAND,OIL FILTER 1 Rp15.000
2 11511-73R00-000 PAN,OIL 1 Rp539.000
3 11515-51K03-000 BOLT,OIL PAN BAFFLE STUD 1 Rp54.000
4 11518-63J20-000 PLUG,OIL DRAIN 1 Rp29.500
5 11518-67LA0-000 O-RING,OIL PAN 1 Rp6.000
6 11541M73K00-000 PLATE,OIL PAN BAFFLE 1 Rp86.500
7 16114M69J00-000 PIN,OIL PAN DOWEL 1 Rp14.500
8 09168-14015-000 GASKET (14X20X1.5) 1 Rp7.500
9 09202-08004-000 PIN (8X23) 1 Rp6.500
10 01550-0612A-000 BOLT (6X12) 4 Rp3.500
11 01550-0625C-000 BOLT (6X25) 16 Rp14.500
12 07130-0625A-000 BOLT (6X25) 1 Rp3.500
13 08316-1006A-000 NUT (6X12) 1 Rp2.000
14 16510-61J00-000 FILTER ASSY,OIL 1 Rp37.000
15 16520-73R01-000 STRAINER,OIL PUMP 1 Rp72.500
16 51181-37B00-000 O-RING (D:2.4,ID:16.8) 1 Rp5.000
17 07120-0620A-000 BOLT (6X20) 1 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
