All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

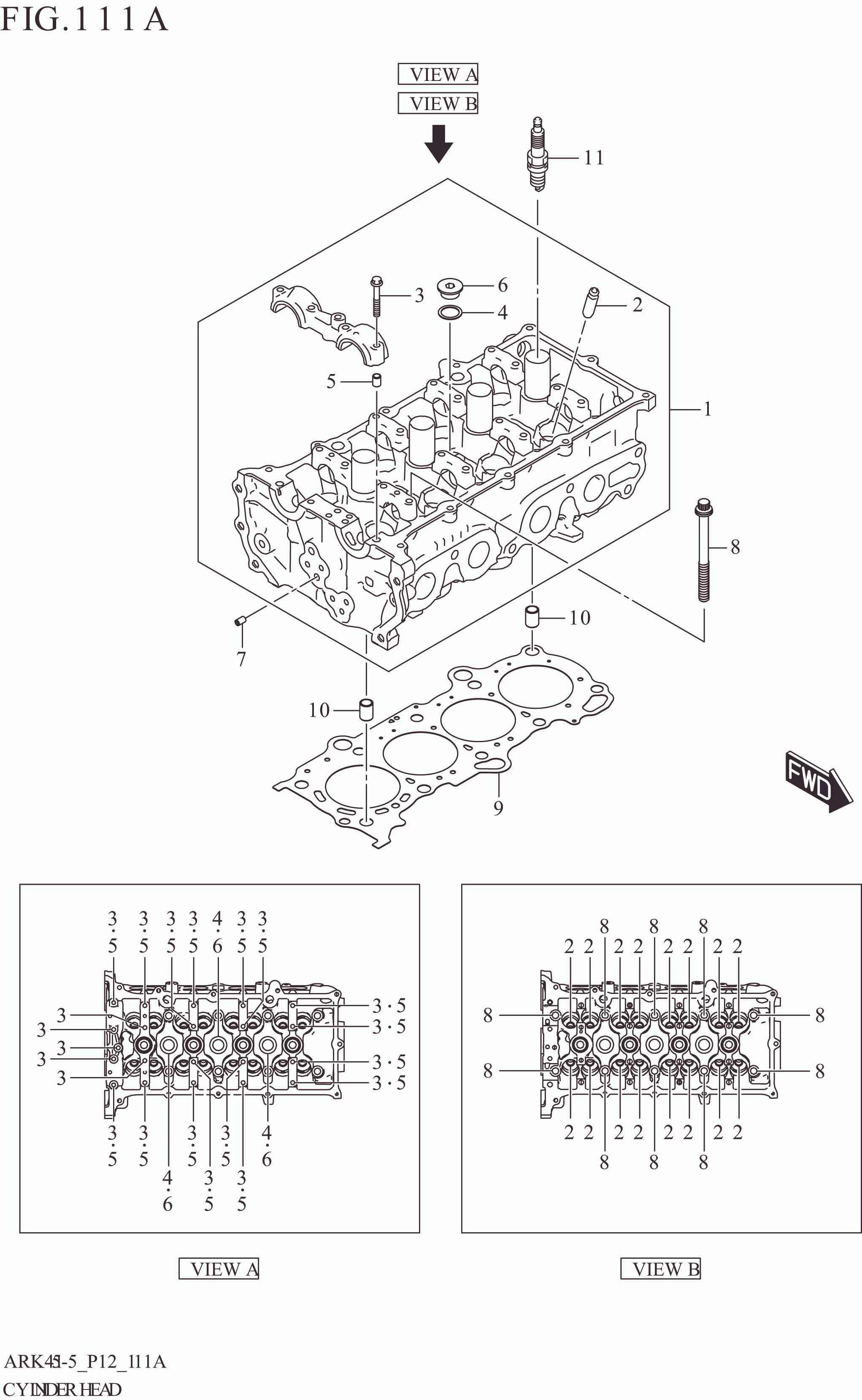

111A CYLINDER HEAD

111A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-73RB0-000 HEAD ASSY,CYLINDER 1 Rp7.005.500
2 11115M74L00-001 .GUIDE,VALVE 16 Rp16.000
3 11128-69G01-000 .BOLT,CAMSHAFT HOUSING (6X39) 21 Rp24.000
4 11216-67LB0-000 .GASKET,PLUG (M18) 3 Rp7.000
5 09206-08010-000 .PIN (6.2X8X11) 16 Rp19.000
6 09248-18011-000 .PLUG (18X8) 3 Rp38.000
7 11112-53A00-000 PLUG,OIL VENTURI 1 Rp31.500
8 11117-69J00-000 BOLT,CYLINDER HEAD 10 Rp64.500
9 11141-73R00-000 GASKET,CYL HEAD 1 Rp133.500
10 09206-13020-000 PIN (10.4X13X18) 2 Rp13.500
11 09482-00L10-000 SPARK PLUG (NGK,KR6A-10) 4 Rp41.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
